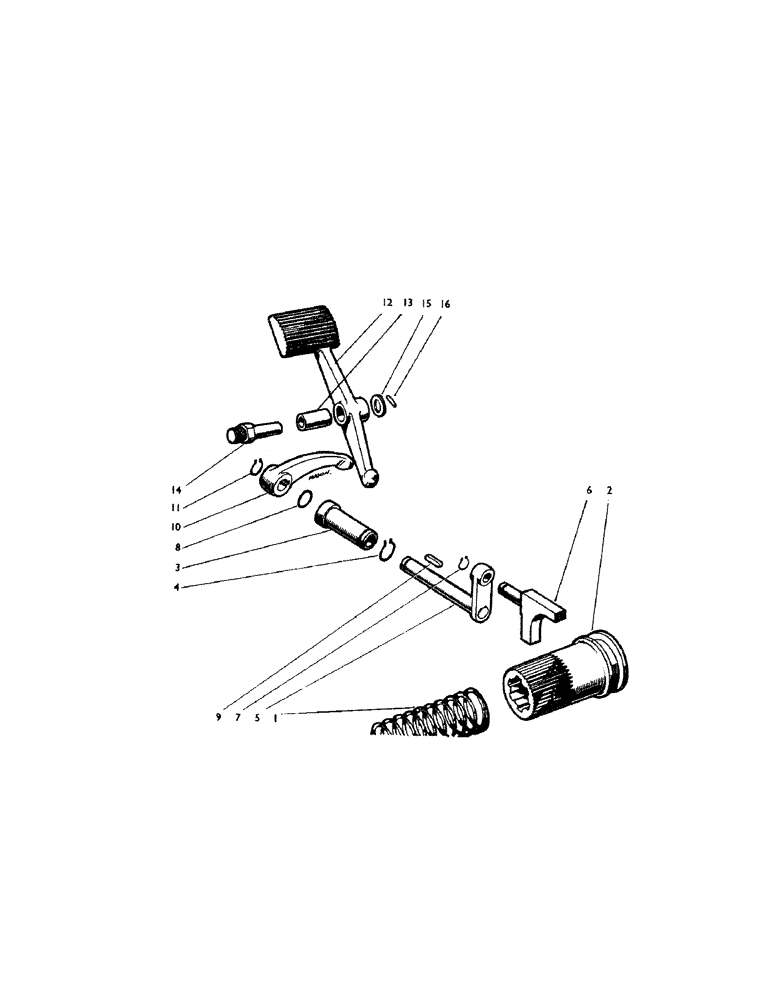

Запчасти Case 380CK (036[1]) - DIFFERENTIAL LOCK

1

K625119

SPRING

- return

1шт.

2

K903191

SLEEVE

- locking

1шт.

4

K34454

RING, SNAP

RING - retaining, external (7/8")

1шт.

5

K903197

SHAFT

AND ARM

1шт.

6

K903226

SELECTOR

FORK - selector

1шт.

K626674

WASHER

- special, 1/2"

1шт.

7

K11302

RING, SNAP

RING - retaining, external (1/2")

1шт.

8

K24676

O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro

SEAL - "O"ring, 5/8" I.D.

1шт.

9

K622309

KEY

- 3/16" x 5/32" x 3/4"

1шт.

10

K903228

LEVER

1шт.

11

K11797

RING, SNAP

RING - retaining, external (5/8")

1шт.

12

K962631

PEDAL

- differential lock, Includes: Ref. 13

1шт.

13

K621346

BUSHING

- pedal

1шт.

14

K919577

PIN

- pivot, 5/8" 11 NC

1шт.

15

K626674

WASHER

- 1/2"

1шт.

16

K690976

PIN

- spring

1шт.
