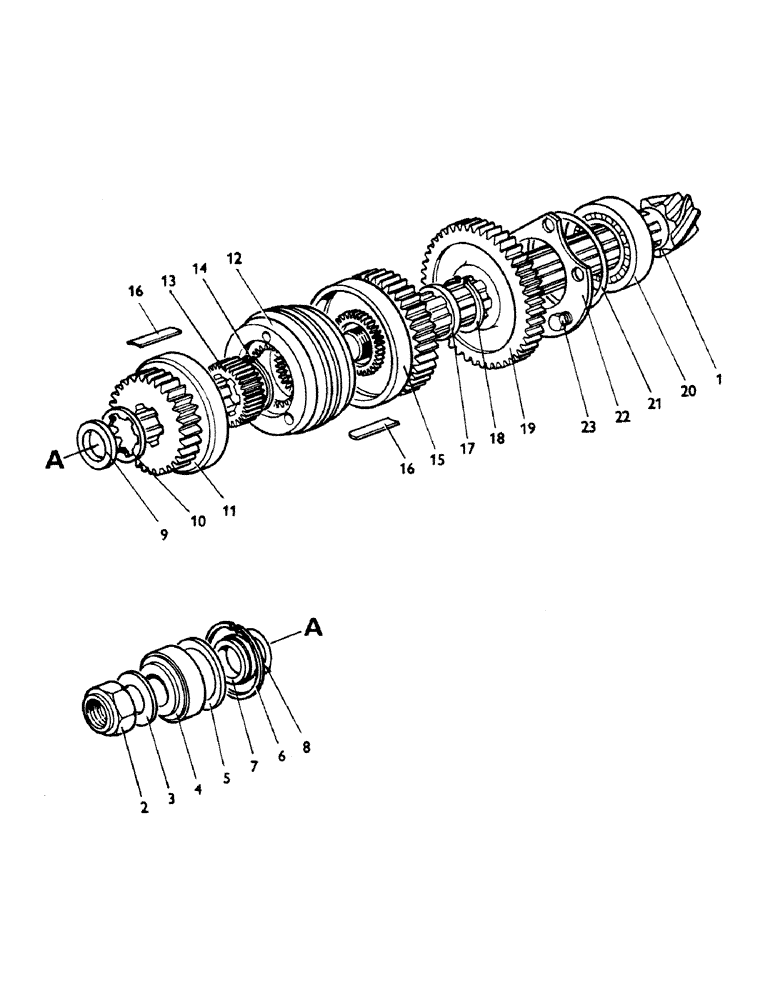

Запчасти Case 380CK (034) - BEVEL PINION SHAFT

1

K962960

GEAR

- bevel pinion and spiral (7/43 teeth)

1шт.

2

K622803

NUT

- Nyloc, 1-1/8" BSF (Left-hand)

1шт.

3

K14687

WASHER

- 1-1/8"

1шт.

4

K620061

BEARING, ROLLER

BEARING - roller

1шт.

5

K627253

BUSHING

SPACER

1шт.

6

K17023

CIRCLIP

RING - retaining, internal (3")

1шт.

7

K917844

BUSHING

SPACER

1шт.

8

K917845

SHIM,35.32mm ID x 50.8mm OD x 0.05mm Thk

- .002"

1шт.

8

K917846

SHIM

- .005"

1шт.

8

K917847

SHIM

- .010"

1шт.

8

K917848

SHIM

- .030"

1шт.

9

K627203

BUSHING

SPACER

1шт.

10

K926249

WASHER

- special

1шт.

11

K942671

GEAR

- high (28 teeth)

1шт.

12

K928223

GEAR

AND CONES - sliding

1шт.

K926266

SPRING

- sliding gear

6шт.

13

K928226

GEAR

- clutch dog

2шт.

14

K12922

RING, SNAP

RING - retaining, external (1-3/4")

1шт.

15

K942672

GEAR

- medium (35 teeth)

1шт.

16

K928621

WEAR PAD

PAD - bearing

12шт.

17

K926249

WASHER

- special

1шт.

18

K12922

RING, SNAP

RING - retaining, external (1-3/4")

1шт.

19

K942732

GEAR

- low (47 teeth)

1шт.

20

K620131

ROLLER

BEARING - roller

1шт.

21

K942872

SHIM

- .002"

1шт.

21

K942873

SHIM

- .003"

1шт.

21

K942874

SHIM

- .010"

1шт.

21

K942875

SHIM

- .030"

1шт.

22

K943068

COVER

PLATE - cover, rear bearing

1шт.

23

K602954

SCREW

HHCS - 7/16" - 14 NC x 1

5шт.
