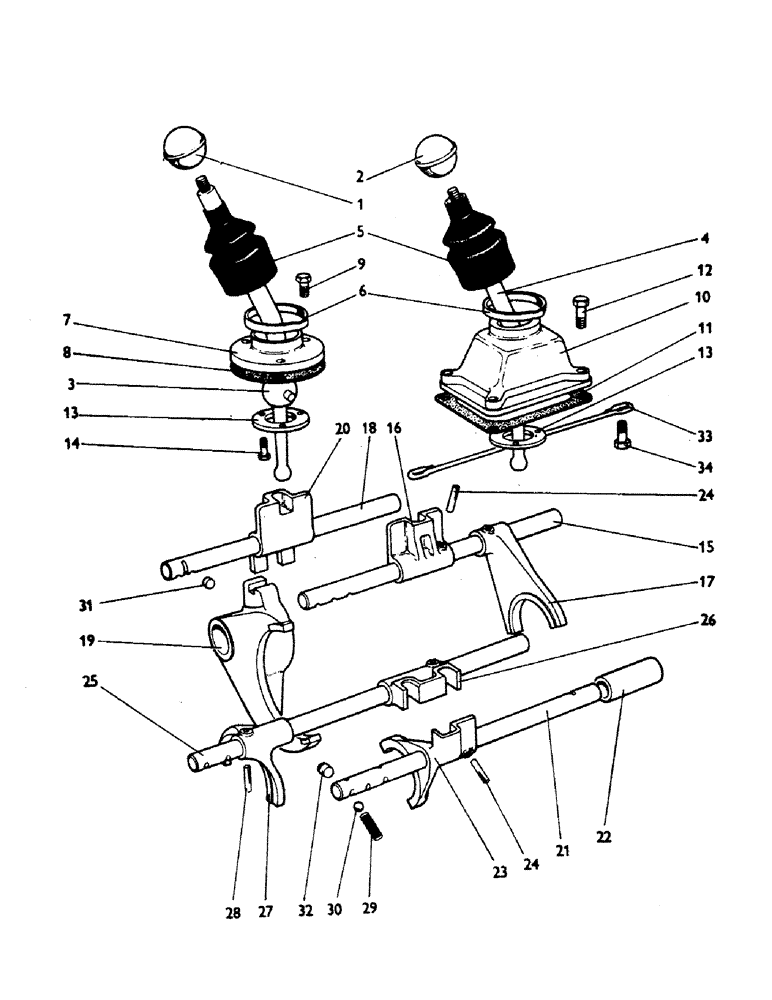

Запчасти Case 380CK (032) - SELECTOR MECHANISM

1

K920787

KNOB

- gear shift lever

1шт.

2

K902270

KNOB

- range shift lever

1шт.

3

K943284

CONTROL LEVER

LEVER - gear shift (1, 2, 3 and reverse)

1шт.

4

K928775

SELECTOR

LEVER - range shift (High/low)

1шт.

5

K929631

BOOT

BOOT - gear shift lever and range shift lever

2шт.

6

K11806

HOSE

CLAMP - boot

2шт.

7

K929630

HOUSING

- gear shift lever ball

1шт.

8

K901835

GASKET

- housing to gear box cover

1шт.

9

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

Housing to gear box Hex, 1/4"-20 x 3/4", G5, Full Thd

3шт.

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

10

K929629

BALL

HOUSING - range shift lever ball

1шт.

11

K915597

GASKET,0.2mm Thk

- housing to gear box cover

1шт.

12

13-418

BOLT,Hex, 1/4" - 20 x 1-1/8", Gr 5

Housing to gear box cover Hex, 1/4"-20 x 1 1/8", G5

4шт.

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

13

K903074

SUPPORT

PLATE - support

2шт.

14

K690456

SCREW

- support, Serial Range: plate-housing

6шт.

K904386

WASHER

TAB WASHER - support, Serial Range: plate-housing

2шт.

15

K945213

SELECTOR

ROD - selector, first and reverse

1шт.

16

K928573

SELECTOR

JAW - selector, first and reverse

1шт.

17

K942472

SELECTOR

FORK - selector, first and reverse

1шт.

18

K945215

SELECTOR

ROD - selector, second and third

1шт.

19

K926310

SELECTOR

FORK - selector, second and third

1шт.

20

K928571

SELECTOR

JAW - selector, second and third

1шт.

21

K929322

SELECTOR

ROD - selector, high and low

1шт.

22

K929417

BUSHING

SLEEVE - high and low

1шт.

23

K928568

SELECTOR

FORK - selector, high and low

1шт.

24

K623748

PIN

- Mills, 3/16" x 1-1/8"

6шт.

25

K928576

SELECTOR

ROD - selector, slow/normal

1шт.

26

K928572

SELECTOR

JAW - selector, slow/normal

1шт.

27

K928567

SELECTOR

FORK - selector, slow/normal

1шт.

28

K623748

PIN

- Mills, 3/16" x 1-1/8"

1шт.

29

K13507

SPRING

- gear detent

4шт.

30

211-210

BALL,3/8" Dia

- steel, detent (3/8")

4шт.

31

K30430

LOCKING DEVICE

LOCK - gear, 12-speed

1шт.

32

K915492

DOWEL

LOCK - gear, high/low

1шт.

33

K914348

SPRING

- range lever

1шт.

34

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

Gear box cover Hex, 1/4"-20 x 3/4", G5, Full Thd

2шт.

K12256

WASHER

- fiber, 1/4" (Gear box cover)

2шт.

K607251

NUT

- domed, 1/4" - 20 NC

2шт.
