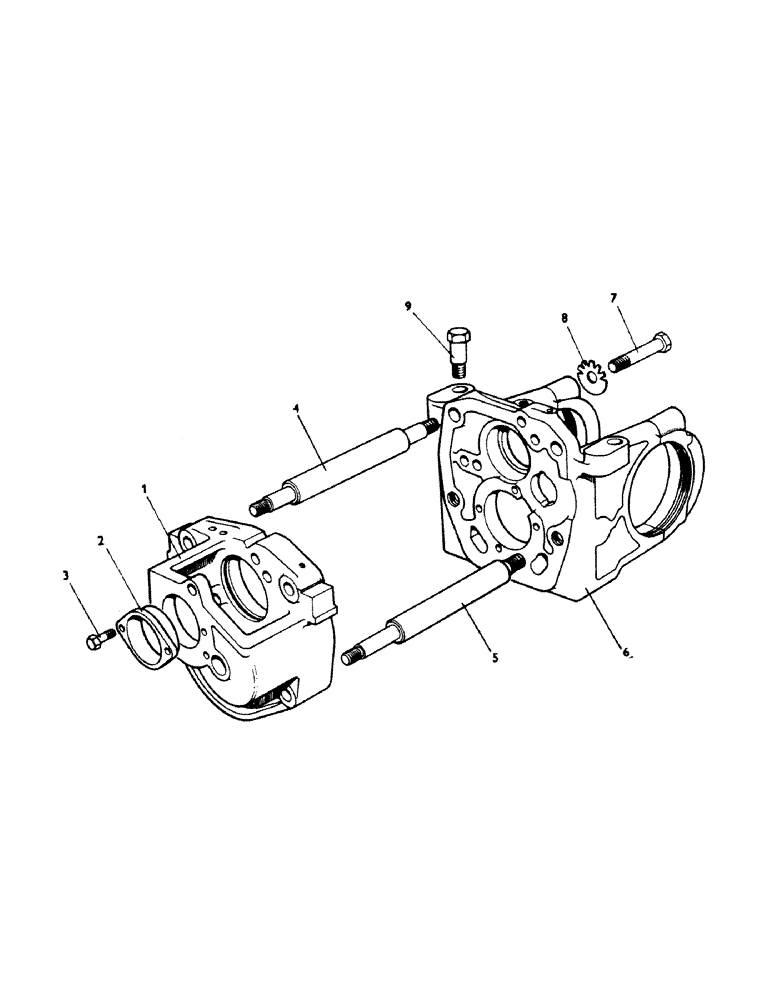

Запчасти Case 380CK (028) - GEAR BOX CASE, DRIVE SHAFT AND IDLER SHAFTS, GEAR BOX CASE

1

K929944

PLATE

- end, front

1шт.

2

K928437

BEARING HOUSING

HOUSING - bearing

1шт.

3

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

Housing to end plate Hex, 5/16"-18 x 7/8", G5, Full Thd

2шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

4

K928339

LARGE PIN

BAR - spacing, top

2шт.

5

K928338

SHAFT

BAR - spacing, bottom

2шт.

K607331

NUT

- Nyloc, 5/8" - 11 NC

6шт.

6

K962980

HOUSING ASSY.

PLATE - end, rear

1шт.

7

26-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 8

HHCS - 5/8" -11 NC x 3-1/4"

4шт.

8

K626389

BEARING WASHER

TAB WASHER

4шт.

9

K601306

BOLT

- special, 5/8" - 11 NC (Gear box to main frame)

2шт.

K920656

BUSHING

BUSHING - gear box to main frame

2шт.

K626239

SHIM,.010" Thk

Gear box to main frame .010" Thk

1шт.
