Запчасти Case 380CK (026) - CLUTCH FOOT CONTROL

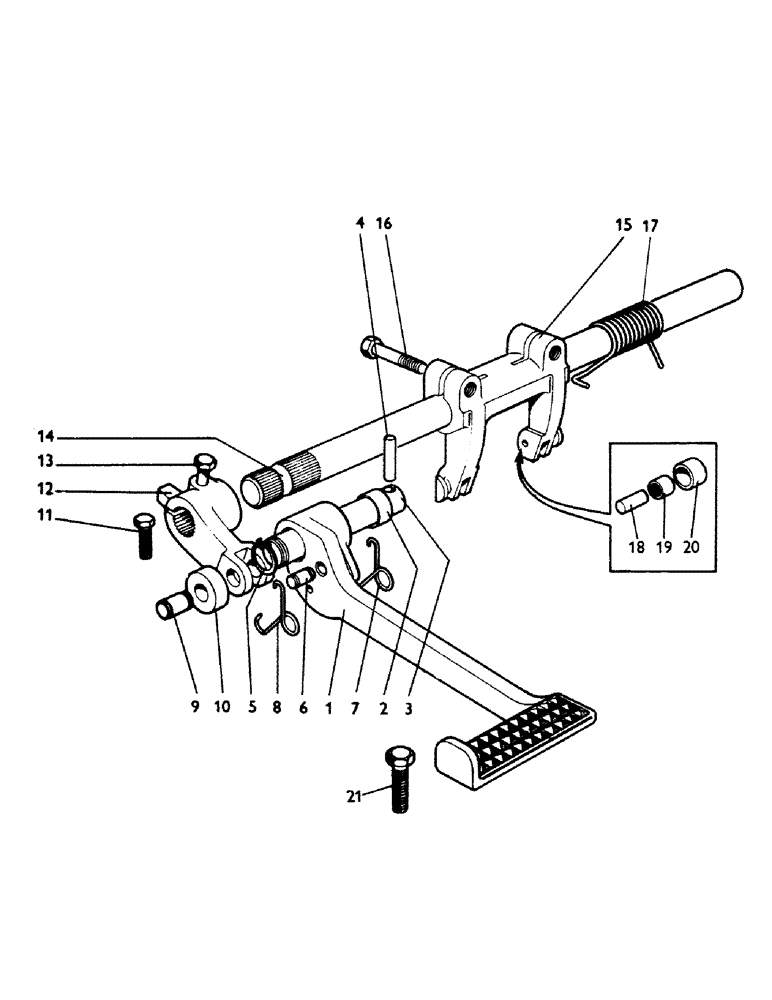

Схема запчастей Case 380CK - (026) - CLUTCH FOOT CONTROL

Артикул

Название

Примечание

Количество

1

K945229

CUP

PEDAL - clutch, Includes: Ref. 2

1шт.

2

K621371

BUSHING

- clutch pedal

2шт.

3

K942494

LARGE PIN

PIN - pivot

1шт.

4

K11315

PIN

- Mills, 1/4" x 1-3/4"

1шт.

K626716

WASHER

- special, 7/8"

1шт.

5

K34454

RING, SNAP

RING - retaining, external (7/8")

1шт.

6

K921686

SPRING

PIN

1шт.

7

K921684

SPRING

- inner

1шт.

8

K921685

SPRING

- outer

1шт.

9

K921683

PIN

1шт.

10

K921682

ROLLER

1шт.

11

K602843

SCREW

- special, pedal adjustment (5/16" - 18 NC x 1-1/8")

1шт.

425-145

JAM NUT,Jam, 5/16"-18, G5

1шт.

12

K921681

CLUTCH

LEVER

1шт.

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC x 1-1/2"

1шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

14

K928264

SHAFT

- cross

1шт.

15

K905650

CLUTCH FORK

FORK

1шт.

126-15

WOODRUFF KEY,#8, 5/32" x 3/4"

(No. 506) #8, 5/32" x 3/4"

2шт.

16

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS 3/8" - 16 NC x 1-1/2"

2шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

17

K921687

COIL SPRING

SPRING

1шт.

18

K900349

PIN

- pivot, clutch fork roller

2шт.

19

K620260

NEEDLE BEARING,Needle, 4.76mm ID x 8.73mm OD x 6.35mm W

BEARING - needle roller

2шт.

20

K900348

ROLLER,8.72mm ID x 14.29mm OD x 6.35mm L

- clutch fork

2шт.

K690973

FITTING

- grease, 45 degrees (1/4" ANF) Cross shaft bearings

2шт.

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

Pedal stop Hex, 3/8"-16 x 1 1/8", G5, Full Thd

1шт.

25-146

JAM NUT,Jam, 3/8"-16, G5

- lock, 3/8" - 16 NC

1шт.

Выбрано товаров: 28
