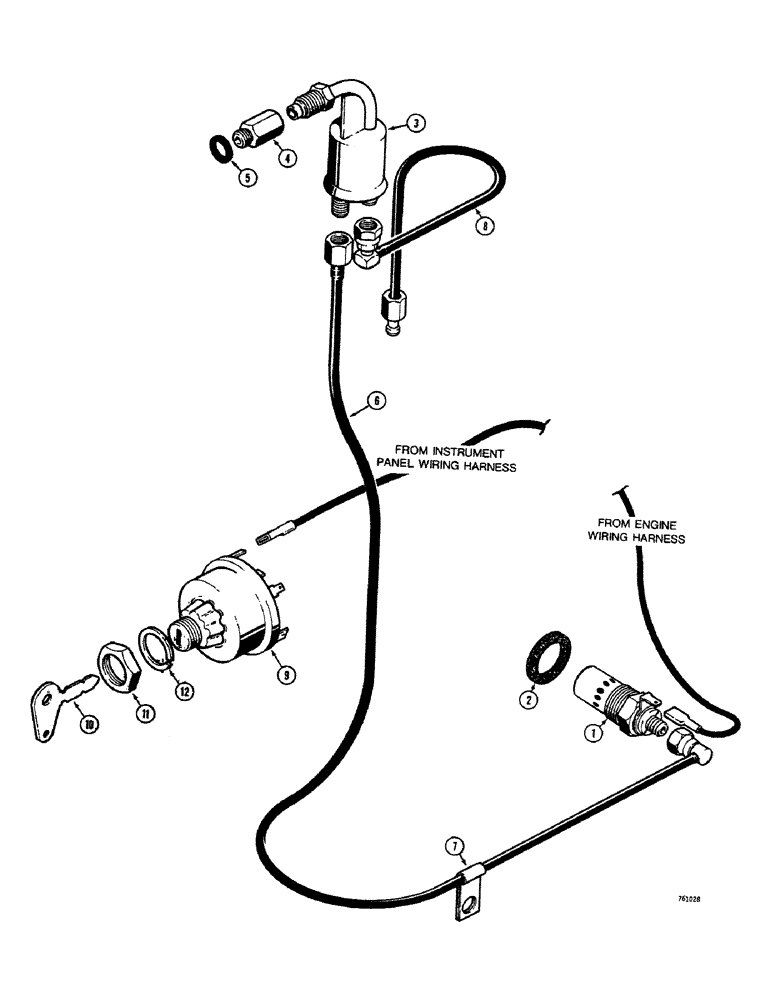

Запчасти Case 380CK (023A) - COLD START SYSTEM

1

K928523

GLOW PLUG

THERMOSTART - CAV 1854102

1шт.

2

K19502

WASHER

- fiber, 7/8"

1шт.

3

K944744

RESERVOIR

- thermostart

1шт.

4

K618900

ADAPTER

ADAPTOR - reservoir

1шт.

5

K19504

WASHER,9.92mm ID x 14.29mm OD x 2mm Thk

- fiber

2шт.

6

K947314

HOSE

TUBE - reservoir, thermostart

1шт.

7

K621681

CLIP

CLAMP - tube

1шт.

8

K947316

PIPE

TUBE - reservoir

1шт.

9

K929365

IGNITION SWITCH

SWITCH - starting, special for models with cold start system

1шт.

For models without cold start system, see Figure 102.

1шт.

10

K920929

KEY

- switch

2шт.

11

K920930

NUT

- switch

1шт.

12

K920931

WASHER

- spring

1шт.
