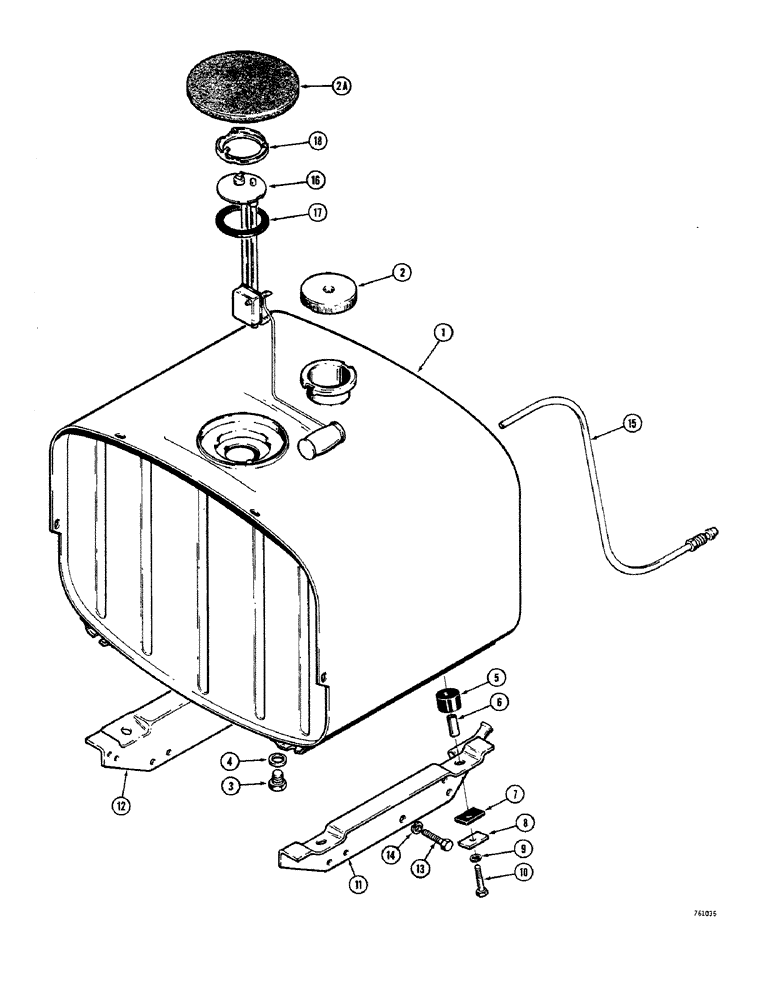

Запчасти Case 380CK (022) - FUEL TANK

1

K946006

TANK

- fuel, Includes: Ref. 2

1шт.

2

K901983

CAP

- fuel filter

1шт.

2a

K946256

PLUG

- cushion protector

1шт.

3

K19591

PLUG

- drain, 1/8" BSP

1шт.

4

K19504

WASHER,9.92mm ID x 14.29mm OD x 2mm Thk

- fiber

1шт.

5

K626462

DAMPER

CUSHION - rubber, fuel tank

4шт.

6

K627006

TUBE

SPACER - fuel, Serial Range: tank-brackets

4шт.

7

K915725

WASHER

- rubber

4шт.

8

K915726

PLATE

- clamping

4шт.

9

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

10

113-5

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

Hex, 1/4"- 20 x 1 1/2", G5

4шт.

11

K945994

TANK

BRACKET - support, R.H.

1шт.

12

K945965

SUPPORT

BRACKET - support, L.H.

1шт.

13

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

HHCS - 3/8" - 16 NC x 3-1/4", plated

4шт.

14

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

15

K943320

HOSE,0.312" OD x 22" L

TUBE - fuel tank to fuel pump

1шт.

16

K946184

FUEL GAUGE

SENDING UNIT - fuel gauge

1шт.

17

K942450

RING

- seal, sending unit

1шт.

18

K942451

RING

- lock, sending unit

1шт.
