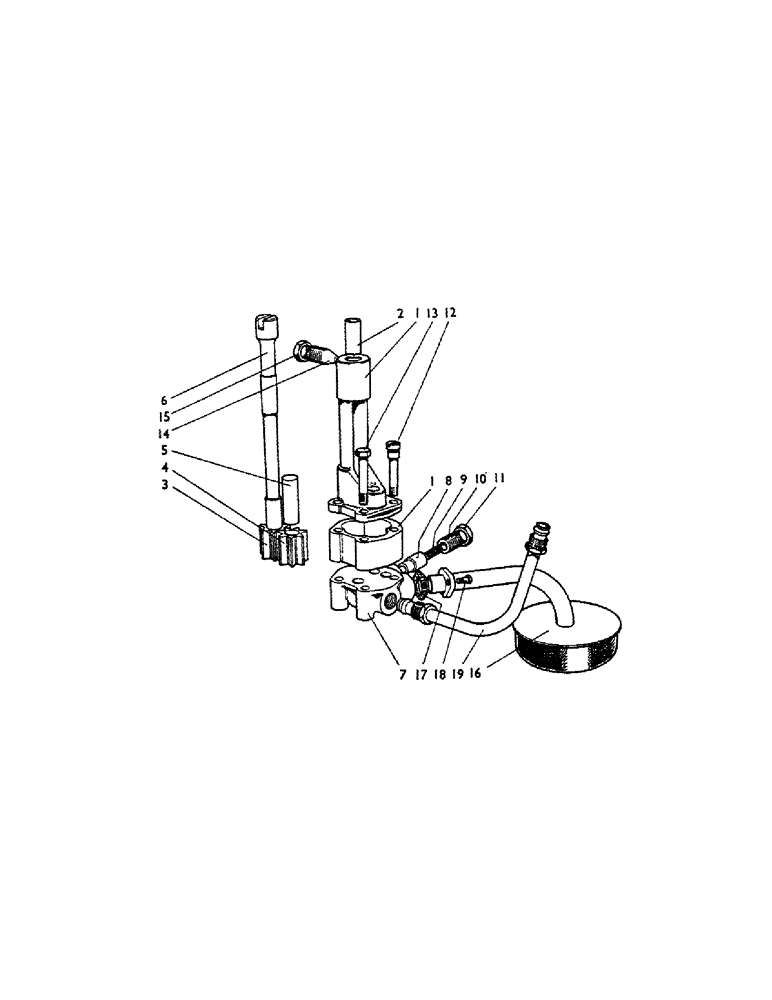

Запчасти Case 380CK (018) - OIL PUMP AND OIL FILTER, OIL PUMP

K911963

PUMP

- oil, complete, Includes: Ref. 1 - 13

1шт.

1

K961737

BRACKET

AND HOUSING - gear

1шт.

2

K30016

BUSHING

- bracket

1шт.

3

K902058

PINION

ROTOR - driving

1шт.

4

K902059

PINION

ROTOR - driving

1шт.

5

K902060

SPINDLE

SHAFT - driven rotor

1шт.

6

K907918

SPINDLE

SHAFT - driving rotor

1шт.

126-11

WOODRUFF KEY,#5, 1/8" x 5/8"

(No. 405) #5, 1/8" x 5/8"

1шт.

K907921

VALVE

RELIEF VALVE ASSEMBLY, Includes: Ref. 7 - 11

1шт.

7

K907589

VALVE

COVER - relief valve

1шт.

8

K907590

PLUNGER

- relief valve

1шт.

9

K625148

SPRING

- relief valve

1шт.

10

K912301

SCREW

- adjusting

1шт.

11

K19438

LOCK NUT

- lock, 3/8" BSP

1шт.

12

K604544

FITTING

SCREW - special, 1/4" - 20 NC x 3"

2шт.

13

13-448

BOLT,Hex, 1/4" - 20 x 3", Gr 5

2шт.

25-104

NUT,1/4"-20, G5

4шт.

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

14

K928254

SCREW,7/16" - 14 x 1 5/16"

- set

1шт.

15

K607516

NUT

- capped, 7/16" - 14 NC

1шт.

K14674

WASHER

- capped, 7/16"

1шт.

16

K907929

FILTER

- oil pump inlet

1шт.

17

K908048

GASKET,0.76mm Thk

- oil pump inlet

1шт.

18

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

2шт.

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

19

K908050

PIPE

TUBE - oil, Serial Range: pump-block

1шт.

K928267

PIPE

TUBE -, Serial Range: block-head

1шт.
