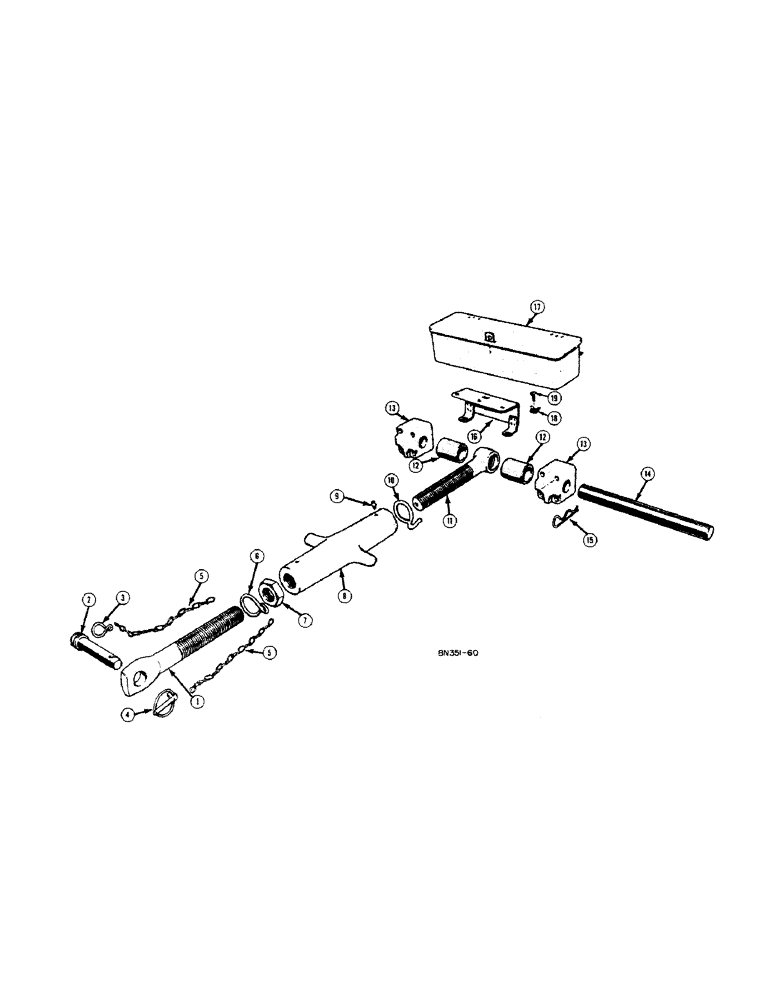

Запчасти Case 320B (148) - EAGLEHITCH TURNBUCKLE AND TOOL BOX, THREE-POINT HITCH

1

VT3162

EYE - rear, 12-1/2" long (Model 420B)

1шт.

VT3006

EYE - rear, 9" long (Models 320B and 420BD)

1шт.

2

V14209

X

PIN - mast, rear eye

1шт.

3

V14800

"S" HOOK - small

1шт.

4

SV2433

X

PIN - retaining, mast pin

1шт.

5

V14098

CHAIN - rear mast pin

2шт.

6

V14801

SET OF BELTS

"S" HOOK - large

1шт.

7

25-1018

NUT,1 1/8"-7, G5

- hex. (1-1/8-7 NC)

1шт.

8

VTA2930

TURNBUCKLE, Includes: Ref. 9

1шт.

9

219-14

LUBE NIPPLE,1/4" NPTF

FITTING - grease, straight drive (1/4) (Lincoln #5029)

2шт.

10

G10980

HOOK - turnbuckle carrying

1шт.

11

G10473

EYE - adjusting link, front

1шт.

12

G10474

SPACER

- pivot shaft (1-15/16" long)

2шт.

13

G1247

BRACKET - mounting (Model 420B)

2шт.

G1051

BRACKET - mounting (Models 320B and 420BD)

2шт.

14

G10472

SHAFT - turnbuckle pivot (Standard)

1шт.

DR10603

SHAFT - turnbuckle pivot (Weight box attaching)

1шт.

15

CT1864S

X

PIN - spring, pivot shaft retaining

2шт.

16

G13183

BRACKET - tool box and link hook

1шт.

17

G13138

BOX - tool

1шт.

18

G48000

X

NUT - tool box to bracket (5/16 cage nut)

1шт.

19

75-510

HANDBOOK

SCREW - rd. hd. (5/16-18 NC x 5/8)

1шт.
