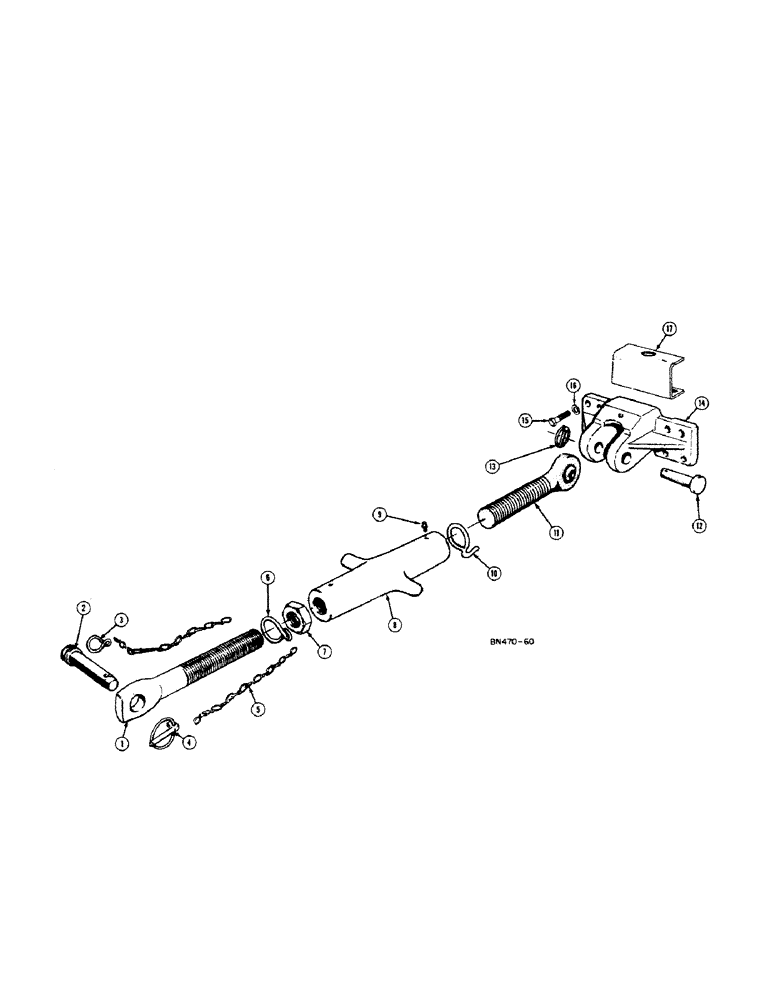

Запчасти Case 320B (148[A]) - THREE-POINT HITCH TURNBUCKLE

1

VT3162

EYE - rear adjusting turnbuck

1шт.

2

V14209

X

PIN - mast, rear eye

1шт.

3

V14800

"S" HOOK - small

1шт.

4

SV2433

X

PIN - retaining, mast pin

1шт.

5

V14098

CHAIN - rear mast pin

2шт.

6

V14801

SET OF BELTS

"S" HOOK - large

1шт.

7

25-1018

NUT,1 1/8"-7, G5

- hex. (1-1/8-7 NC)

1шт.

8

VTA2930

TURNBUCKLE, Includes: Ref. 9

1шт.

9

219-14

LUBE NIPPLE,1/4" NPTF

FITTING - grease, straight drive (1/4) (Lincoln #5029)

2шт.

10

G10980

HOOK - turnbuckle carrying

1шт.

11

G14068

LINK - front adjusting, turnbuckle

1шт.

12

G16735

PIN

- mast, turnbuckle pivot

1шт.

13

SV2433

X

PIN - retaining, mast pin

1шт.

14

G1237

BRACKET - mounting

1шт.

15

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8-16 NC x 1-1/2

6шт.

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

HHCS - 3/8-16 NC x 2-1/2

2шт.

16

92-6

LOCK WASHER,3/8"

WASHER - med. sect. lock, 3/8"

8шт.

17

G13183

BRACKET - tool box and link hook

1шт.
