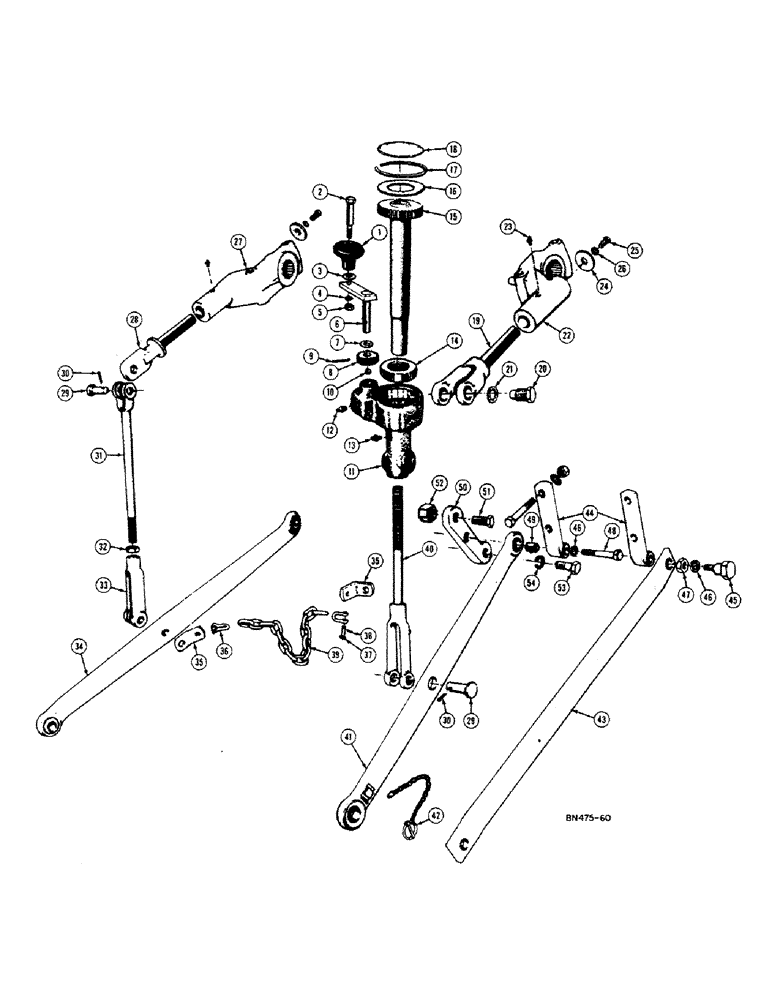

Запчасти Case 320B (146) - THREE-POINT HITCH

1

O4995AB

X

KNOB - spinner, adjusting screw crank

1шт.

2

VT2964

BOLT -, Serial Range: knob-crank

1шт.

3

G10488

WASHER - thrust, adjusting screw crank

1шт.

4

92-6

LOCK WASHER,3/8"

WASHER - med. sect. lock, 3/8"

1шт.

5

25-106

NUT,3/8"-16, G5

- hex. (3/8-16 NC)

1шт.

6

G13119

CRANK - adjusting screw

1шт.

7

O5087A

X

WASHER - thrust, crank gear

1шт.

8

G10464

GEAR - adjusting screw crank

1шт.

9

138-75

LOCK PIN,5/32" x 7/8", Slotted

PIN, , Crank gear 5/32" x 7/8", Slotted

1шт.

10

O8635AB

X

BALL - crank bearing (1/4" dia.)

1шт.

11

G1044

HOUSING - adjusting screw

1шт.

12

219-30

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - safety vented, 1/8 NPT (Lincoln #5099)

1шт.

13

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease, 1/8 NPT (Lincoln #5000)

1шт.

14

G10489

THRUST BEARING

BEARING - thrust, adjusting screw gear

1шт.

15

G13390

TUBE

GEAR - adjusting screw

1шт.

16

O265BL

WASHER - adjusting screw gear

1шт.

17

O8582AB

X

SNAP RING - upper, adjusting screw housing

1шт.

18

41-40

PLUG,Exp, 2 1/2"

- Welch (2-1/2" dia.)

1шт.

19

G16754

END - swivel, R.H. lift arm

1шт.

20

VT2973

X

SCREW - pivot, R.H. lift arm

1шт.

21

193-36

LOCK WASHER,Int Tooth, 7/8"

WASHER, LOCK, Int Tooth, 7/8"

1шт.

22

G16748

ARM - lift, R.H.

1шт.

23

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease, 1/8 NPT (Lincoln #5000)

2шт.

24

G16747

WASHER - retainer, swivel end to lift arm (13/32" I.D. x 2" O.D. x #10 ga.)

2шт.

25

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

26

92-6

LOCK WASHER,3/8"

WASHER - med. sect. lock, 3/8"

2шт.

27

G16749

ARM - lift, L.H.

1шт.

28

G16755

END - swivel, L.H. lift arm

1шт.

29

VT2969

X

PIN - yoke, lift link

3шт.

30

132-71

COTTER PIN,5/32" x 1 1/4"

PIN, Split (Cotter), 5/32" x 1 1/4"

3шт.

31

G10469

YOKE

LINK - lift, L.H.

1шт.

32

25-1512

JAM NUT,Jam, 3/4"-10, G5

- hex. jam (3/4-16 NF)

1шт.

33

VT2971

YOKE - L.H. lift link

1шт.

34

G45353

ARM - draft, L.H. (Replacement part)

1шт.

G45097

ARM - draft, L.H. (Original part) (Use G45353)

1шт.

35

G16736

LINK - chain to draft arm and drawbar support

4шт.

36

G45127

SHACKLE - chain, Includes: Ref. 37 and 38

4шт.

37

G46139

PIN

- chain shackle

1шт.

38

132-26

COTTER PIN

PIN, Split (Cotter), 3/32" x 3/4"

1шт.

39

VP582

CHAIN - swan

2шт.

40

G14062

LINK

- lift, R.H.

1шт.

41

G45352

ARM - draft, R.H. (Replacement part)

1шт.

G45096

ARM - draft, R.H. (Original part) (Use G45352)

1шт.

42

G45107

LINCH PIN - implement mounting pin

2шт.

43

G16757

BAR - stabilizer

2шт.

44

G16911

BRACKET

- outer draft arm and stabilizer

4шт.

45

G16756

BOLT - shoulder, stabilizer, Serial Range: bar-bracket

2шт.

46

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

47

25-1110

NUT,5/8"-18, G5

- hex. (5/8-24 NF)

2шт.

48

14-1060

BOLT,Hex, 5/8" - 18 x 3-3/4", Gr 5

HHCS - 5/8-24 NF x 3-3/4

2шт.

49

G16734

BUSHING - pivot, draft arm

2шт.

50

G1236

BRACKET - inside, draft arm mounting

2шт.

51

G16738

BOLT - draft arm (5/8 x 1-1/2)

2шт.

52

G16912

SPACER - mounting bracket (1-13/16" long) (From serial #6128060)

4шт.

G16739

SPACER - mounting bracket (2-1/16" long) (Up to serial #6128060)

4шт.

53

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

HHCS - 5/8-18 NC x 1-3/4

2шт.

54

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.
