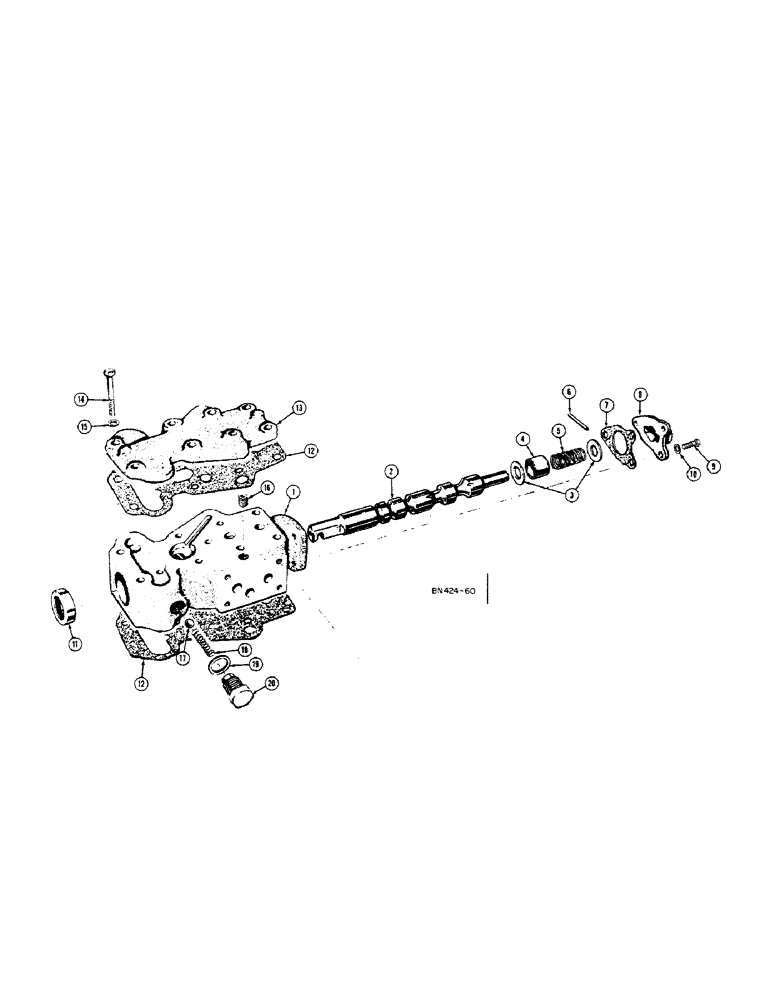

Запчасти Case 320B (138[A]) - G13983 AND G13985 CONTROL VALVE (MODEL 320B AND 420BD)

G13983

VALVE - control, Includes: Ref. 1 - 20

1шт.

G13985

VALVE - control, Includes: Ref. 1 - 20

1шт.

1

G1231

BODY - control valve

1шт.

2

G16670

SPOOL

- control valve

1шт.

3

95-8

WASHER,1/2"

- plain 1/2"

2шт.

4

G10901

SLEEVE

- valve spool stop

1шт.

5

VT5129

X

SPRING - valve spool

1шт.

6

138-57

LOCK PIN,1/8" x 3/4", Slotted

PIN, , Valve spool 1/8" x 3/4", Slotted

1шт.

7

G10903

GASKET

- end cap

1шт.

8

G1102

CAP - end, control valve

1шт.

9

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

3шт.

10

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

11

G13807

OIL SEAL

SEAL - oil, valve spool

1шт.

12

G46838

GASKET

- control valve

2шт.

13

G1232

COVER - control valve body

1шт.

14

13-548

CAP,Hex, 5/16" - 18 x 3", Gr 5

BOLT - 5/16-18 NC x 3

4шт.

13-552

BOLT,Hex, 5/16" - 18 x 3-1/4", Gr 5

HHCS - 5/16-18 NC x 3-1/4

4шт.

15

92-5

LOCK WASHER,5/16"

WASHER - med. sect. lock, 5/16"

8шт.

16

VT3395

X

PLUG - (G13985 valve only)

1шт.

17

VT4913

X

BALL - detent (3/8" dia.) (G13983 valve only)

1шт.

18

VT2006

X

SPRING - detent (G13983 valve only)

1шт.

19

VT4846

X

GASKET - plug

1шт.

20

G10902

PLUG - spring

1шт.
