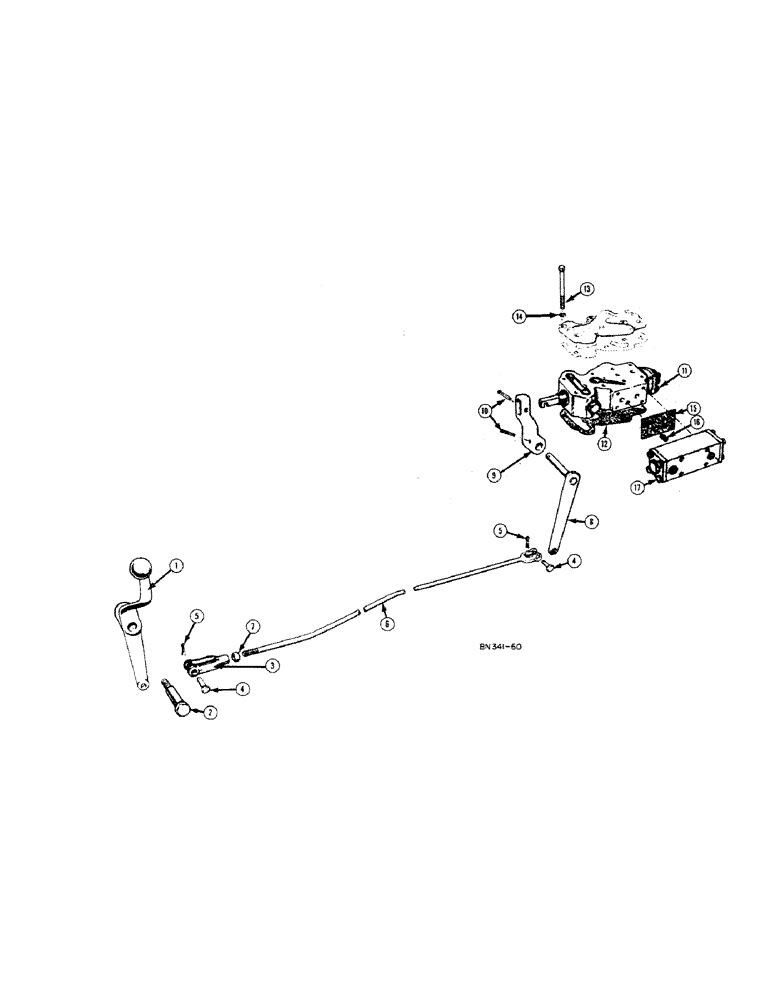

Запчасти Case 320B (134) - HYDRAULIC CONTROLS (REMOTE CONTROL WITH EAGLE HITCH), (MODEL 420B)

1

G1104

LEVER

- hand, double control (Outer)

1шт.

2

G10915

BOLT - pivot, double control hand lever (1/2 x 4-1/2)

1шт.

3

O5894AB

YOKE

- rod end

1шт.

4

O5925AB

X

PIN - clevis, drilled

2шт.

5

132-26

COTTER PIN

PIN, Split (Cotter), 3/32" x 3/4"

2шт.

6

G46187

ROD - control, hand lever to crank (29-1/4" long)

1шт.

7

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8-24 NF)

1шт.

8

G14091

CRANK - control, upper valve

1шт.

9

G1107

CRANK

BELLCRANK - double control

1шт.

10

138-134

LOCK PIN,1/4" x 1", Slotted

PIN, 1/4" x 1", Slotted

2шт.

11

G14140

VALVE - hydraulic control (See Figure 132 for breakdown)

1шт.

12

G46838

GASKET

- control valve

1шт.

13

13-580

X,Hex, 5/16" - 18 x 5", Gr 5

HHCS - 5/16-18 NC x 5

4шт.

13-584

BOLT,Hex, 5/16" - 18 x 5-1/4", Gr 5

HHCS - 5/16-18 NC x 5-1/4

4шт.

14

92-5

LOCK WASHER,5/16"

WASHER - med. sect. lock, 5/16"

8шт.

15

G10930

GASKET

- interlock to control valve

1шт.

16

VT3395

X

PLUG - pipe (1/4" ctsk. hd.)

1шт.

17

G13106

INTERLOCK - hydraulic (See Figure 128 for breakdown)

1шт.
