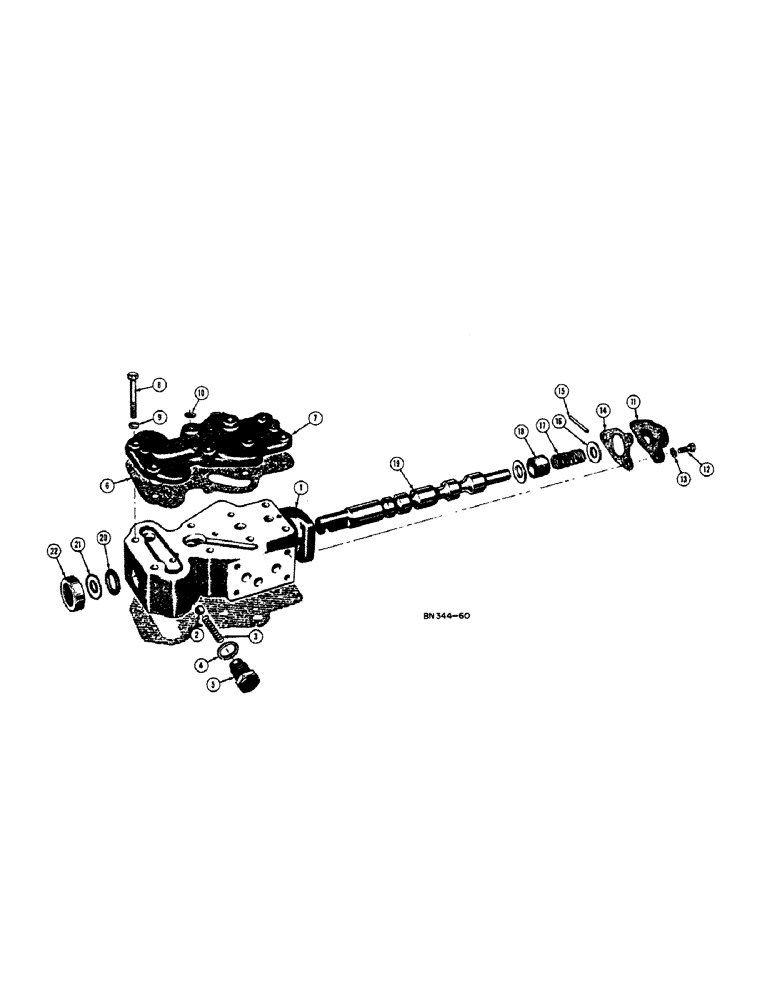

Запчасти Case 320B (132[A]) - G14140 CONTROL VALVE

G14140

VALVE - control, Includes: Ref. 1 - 22

1шт.

1

G1281

BODY - control valve

1шт.

2

VT4913

X

BALL - detent, valve spool (3/8" dia.)

1шт.

3

VT2006

X

SPRING - detent, valve spool

1шт.

4

VT4846

X

GASKET - plug, detent spring

1шт.

5

G10902

PLUG - spring, spool detent

1шт.

6

G46838

GASKET

- hydraulic control valve and cover

2шт.

7

G1232

COVER - control valve body

1шт.

8

13-548

CAP,Hex, 5/16" - 18 x 3", Gr 5

BOLT - 5/16-18 NC x 3

5шт.

13-552

BOLT,Hex, 5/16" - 18 x 3-1/4", Gr 5

HHCS - 5/16-18 NC x 3-1/4

3шт.

9

92-5

LOCK WASHER,5/16"

WASHER - med. sect. lock, 5/16"

8шт.

10

G46843

X

WASHER - sealing, valve cover bolt (5/16)

1шт.

11

G1102

CAP - end, control valve

1шт.

12

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

3шт.

13

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

14

G10903

GASKET

- end cap

1шт.

15

138-37

LOCK PIN,3/32" x 1/2", Slotted

ROLL PIN - valve spool (1/8 x 3/4)

1шт.

16

95-8

WASHER,1/2"

- plain 1/2"

2шт.

17

VT5129

X

SPRING - valve spool

1шт.

18

G10901

SLEEVE

- valve spool stop

1шт.

19

G16670

SPOOL

- control valve

1шт.

20

O8377AB

X

"O" RING - valve spool

1шт.

21

G49403

WASHER

- "O" ring

1шт.

22

G13807

OIL SEAL

OIL SEAL - valve spool

1шт.
