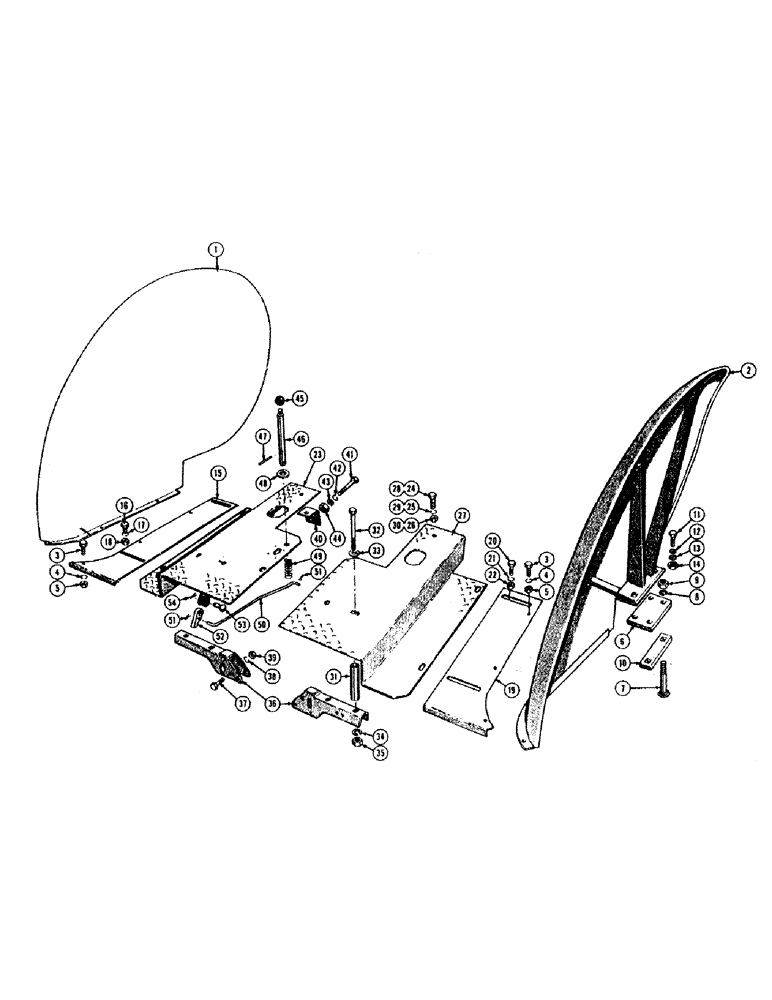

Запчасти Case 320B (122) - FLOOR PLATES AND FENDERS

1

G13374

FENDER - R.H.

1шт.

2

G13375

FENDER - L.H.

1шт.

3

14-414

BOLT,Hex, 1/4" - 28 x 7/8", Gr 5, Full Thd

HHCS - 1/4-28 NF x 7/8

6шт.

4

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

5

25-114

NUT,1/4"-28, G5

- hex. (1/4-28 NF)

6шт.

6

38391

SPRING

SPACER - fender mounting

2шт.

7

11-7104

BOLT - carriage (7/16-14 NC x 6-1/2)

4шт.

8

92-7

LOCK WASHER,7/16"

WASHER - med. sect. lock, 7/16"

4шт.

9

25-107

NUT,7/16"-14, G5

- hex. (7/16-14 NC)

4шт.

10

VT2305

CLAMP - fender

2шт.

11

14-624

BOLT,Hex, 3/8" - 24 x 1-1/2", Gr 5

HHCS - 3/8-24 NF x 1-1/2

4шт.

12

92-6

LOCK WASHER,3/8"

WASHER - med. sect. lock, 3/8"

4шт.

13

95-5

WASHER,3/8" x 7/8" x .083"

- plain (5/16)

4шт.

14

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8-24 NF)

4шт.

15

D20800

EXTENSION - step plate, R.H.

1шт.

16

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

17

92-5

LOCK WASHER,5/16"

WASHER - med. sect. lock, 5/16"

2шт.

18

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16-18 NC)

2шт.

19

D20801

EXTENSION - step plate, L.H.

1шт.

20

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

21

92-5

LOCK WASHER,5/16"

WASHER - med. sect. lock, 5/16"

2шт.

22

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16-18 NC)

2шт.

23

D23077

PLATE - step, R.H.

1шт.

24

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

HHCS - 3/8-24 NF x 1

2шт.

25

92-6

LOCK WASHER,3/8"

WASHER - med. sect. lock, 3/8"

2шт.

26

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8-24 NF)

2шт.

27

D20718

PLATE - step, L.H.

1шт.

28

14-414

BOLT,Hex, 1/4" - 28 x 7/8", Gr 5, Full Thd

HHCS - 1/4-28 NF x 7/8

2шт.

29

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

30

25-114

NUT,1/4"-28, G5

- hex. (1/4-28 NF)

2шт.

31

36506

SPACER

- pipe, inner support (Step plate)

4шт.

32

14-688

HHCS - 3/8-24 NF x 5-1/2

4шт.

33

95-6

WASHER,3/8"

- plain (3/8)

4шт.

34

92-6

LOCK WASHER,3/8"

WASHER - med. sect. lock, 3/8"

4шт.

35

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8-24 NF)

4шт.

36

G16551

SUPPORT - floor, floor plate

2шт.

37

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

6шт.

38

92-6

LOCK WASHER,3/8"

WASHER - med. sect. lock, 3/8"

6шт.

39

25-106

NUT,3/8"-16, G5

- hex. (3/8-16 NC)

6шт.

40

D20725

BRACKET - step plate, rear

2шт.

41

14-10112

BOLT (MACHINE),Hex, 5/8" - 18 x 7", Gr 5

HHCS - 5/8-18 NC x 7

2шт.

42

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

43

95-10

WASHER,5/8"

- plain (5/8)

2шт.

44

25-1110

NUT,5/8"-18, G5

- hex. (5/8-18 NC)

2шт.

45

G10766

KNOB

- lever, brake release

1шт.

46

37278

LEVER - hand, brake release

1шт.

47

138-61

LOCK PIN,1/8" x 1", Slotted

PIN, , Lever to step plate 1/8" x 1", Slotted

1шт.

48

95-8

WASHER,1/2"

- plain 1/2"

1шт.

49

G10707

VALVE SPRING

SPRING - brake release lever

1шт.

50

36513

SPACER

LINK - connecting, brake release, Serial Range: lever-pawl

1шт.

51

132-24

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

2шт.

52

G16604

BRAKE LINE

PAWL - brake lock

1шт.

53

VC1230

PIN - pivot, brake pawl

1шт.

54

132-48

COTTER PIN,1/8" x 1"

PIN, Split (Cotter), 1/8" x 1"

1шт.
