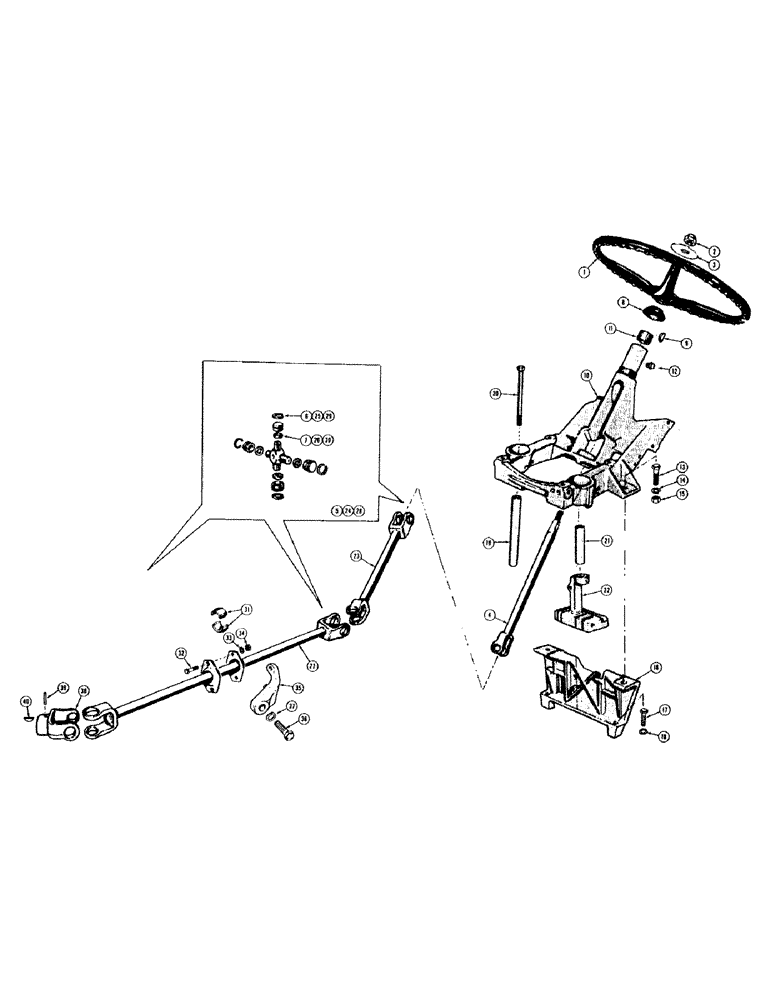

Запчасти Case 320B (110) - STEERING WHEEL, SHAFTS AND UNIVERSALS

1

A7668

WHEEL

- steering (Up to serial #6120001)

1шт.

A20456

WHEEL (STEERING)

WHEEL - steering (From serial #6120001)

1шт.

2

A8744

NUT

- steering wheel to shaft (Up to serial #6120001)

1шт.

25-1512

JAM NUT,Jam, 3/4"-10, G5

- hex. jam (3/4-16 NF) (From serial #6120001)

1шт.

3

A8248

PLATE - name (Power steering) (Up to serial #6120001)

1шт.

A20475

CAP

MEDALLION - name (Power steering) (From serial #6120001)

1шт.

O10984AB

X

"O" RING - medallion (From serial #6120001)

1шт.

4

A8835

SHAFT - upper (Up to serial #6120001), Inlcudes: Ref. 5 - 7

1шт.

A20683

SHAFT - upper (From serial #6120001), Inlcudes: Ref. 5 - 7

1шт.

5

VTA3227

X

UNIVERSAL JOINT, Inlcudes: Ref. 6 and 7

1шт.

6

V20953

ROD

SNAP RING

4шт.

7

V20414

WASHER

4шт.

8

G10742

SEAL

- dust, upper steering shaft

1шт.

9

VT3397

KEY - Woodruff, steering wheel

1шт.

10

G13391

SUPPORT - upper steering shaft

1шт.

11

G10741

BUSHING,25.44mm ID x 27mm OD x 34.92mm L

- steering shaft, upper

2шт.

12

219-10

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - straight grease (1/4 NPT) (Lincoln #5013)

2шт.

13

14-628

BOLT,Hex, 3/8" - 24 x 1-3/4", Gr 5

HHCS - 3/8-24 NF x 1-3/4

2шт.

14

92-6

LOCK WASHER,3/8"

WASHER - med. sect. lock, 3/8"

2шт.

15

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8-24 NF)

2шт.

16

G1252

BRACKET - rear mounting, steering support

1шт.

17

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

2шт.

18

92-6

LOCK WASHER,3/8"

WASHER - med. sect. lock, 3/8"

2шт.

19

G16781

PIPE - R.H. front support (5-1/8" long)

1шт.

20

13-688

BULB,Hex, 3/8" - 16 x 5 1/2", Gr 5

HHCS - 3/8-16 NC x 5-1/2

1шт.

21

G16807

PIPE - L.H. front support (3-3/4" long)

1шт.

13-668

BOLT,Hex, 3/8" - 16 x 4-1/4", Gr 5

HHCS - 3/8-16 NC x 4-1/4 (Not shown)

1шт.

22

G1303

BRACKET - L.H. front, steering support

1шт.

23

G45109

WASHER

SHAFT - intermediate (Model 420B), Inlcudes: Ref. 24 - 26

1шт.

G45715

SHAFT - intermediate (Model 420BD), Inlcudes: Ref. 24 - 26

1шт.

G13131

SHAFT - intermediate (Model 320B), Inlcudes: Ref. 24 - 26

1шт.

24

VT3227

UNIVERSAL JOINT, Inlcudes: Ref. 25 and 26

1шт.

25

V20953

ROD

SNAP RING

1шт.

26

V20414

WASHER

1шт.

27

G45108

SHAFT - lower (Model 420B), Inlcudes: Ref. 28 - 30

1шт.

G45714

SHAFT - lower (Model 420BD), Inlcudes: Ref. 28 - 30

1шт.

G14033

SHAFT - lower (Model 320B), Inlcudes: Ref. 28 - 30

1шт.

28

VT3227

UNIVERSAL JOINT

1шт.

29

V20953

ROD

SNAP RING

1шт.

30

V20414

WASHER

1шт.

31

G17025

CYLINDER END CAP

BEARING - lower shaft

2шт.

32

14-516

BOLT,Hex, 5/16" - 24 x 1", Gr 5, Full Thd

HHCS - 5/16-24 NF x 1

2шт.

33

92-5

LOCK WASHER,5/16"

WASHER - med. sect. lock, 5/16"

2шт.

34

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF)

2шт.

35

G1284

SUPPORT - bearing (Model 420B)

1шт.

G1720

SUPPORT - bearing (Models 320B and 420BD)

1шт.

36

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

1шт.

37

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

38

G10897

YOKE

- front universal joint

1шт.

39

138-138

LOCK PIN,1/4" x 1 1/2", Slotted

PIN, , Front yoke 1/4" x 1 1/2", Slotted

1шт.

40

VT3397

KEY - Woodruff, universal joint yoke

1шт.
