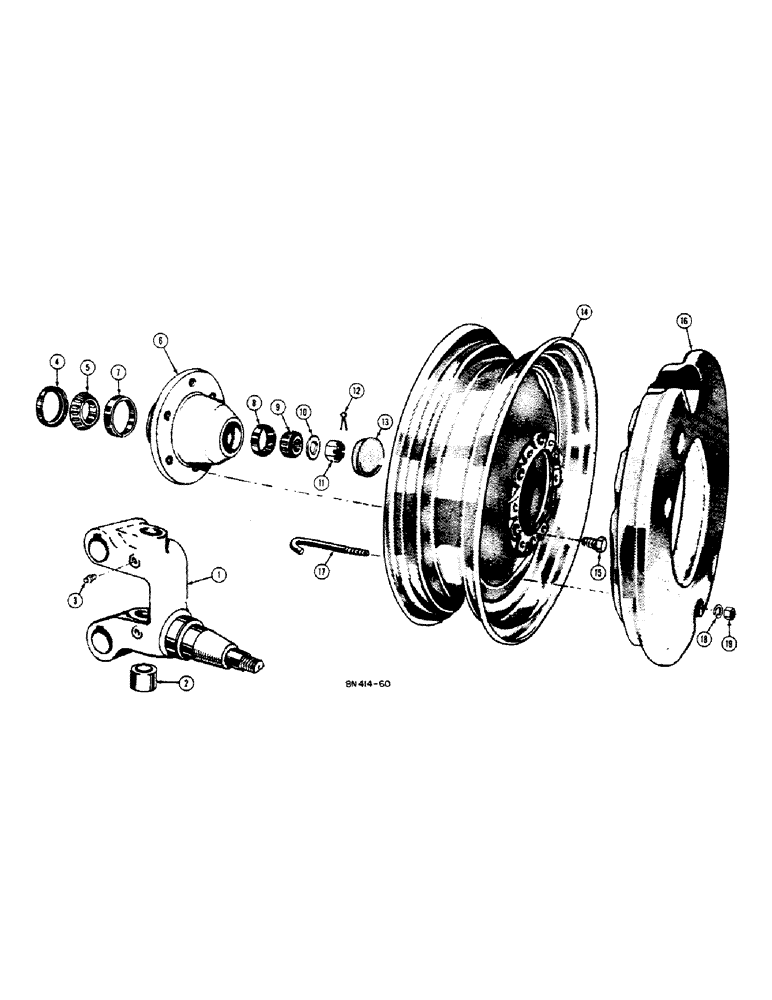

Запчасти Case 320B (104[A]) - FRONT WHEEL, HUB AMD SPINDLE - HEAVY DUTY

1

G14334

SPINDLE

- R.H. wheel, heavy duty, Includes: Ref. 2

1шт.

G14335

SPINDLE

- L.H. wheel, heavy duty, Includes: Ref. 2

1шт.

2

5332A

X

BUSHING - wheel spindle

2шт.

3

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - 45 degrees grease, 1/8 NPT (Lincoln #5200)

4шт.

4

G13800

SEAL

SEAL - oil, wheel hub (Inner)

2шт.

5

O5429N

X

CONE - inner bearing

2шт.

6

G14339

HUB CAP

HUB - front wheel, heavy duty, Includes: Ref. 7 and 8

2шт.

7

O5428N

X

CUP - inner bearing

1шт.

8

B12408

BEARING CUP,59.156 mm OD x 11.862 mm

CUP - outer bearing

1шт.

9

B12409

BEARING, ROLLER,31.763 mm ID x 16.84 mm

CONE - outer bearing

2шт.

10

O2887AB1

X

WASHER - wheel hub nut

2шт.

11

VT4941

X

NUT - wheel hub to spindle (1-14 NF)

2шт.

12

132-52

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

2шт.

13

G57436

CYLINDER END CAP

CAP - hub

2шт.

14

VTA1303

X

WHEEL - front (6.00 x 16 tires)

2шт.

15

O4557AB

BOLT -, Serial Range: wheel-hub

12шт.

16

VTA1230

WEIGHT - wheel (Set of 2 w/bolts), Includes: Ref. 17 - 19

1шт.

17

G15557

BOLT (SPREADER)

BOLT - hook, wheel weight

8шт.

18

92-6

LOCK WASHER,3/8"

WASHER - med. sect. lock, 3/8"

8шт.

19

25-106

NUT,3/8"-16, G5

- hex. (3/8-16 NC)

8шт.
