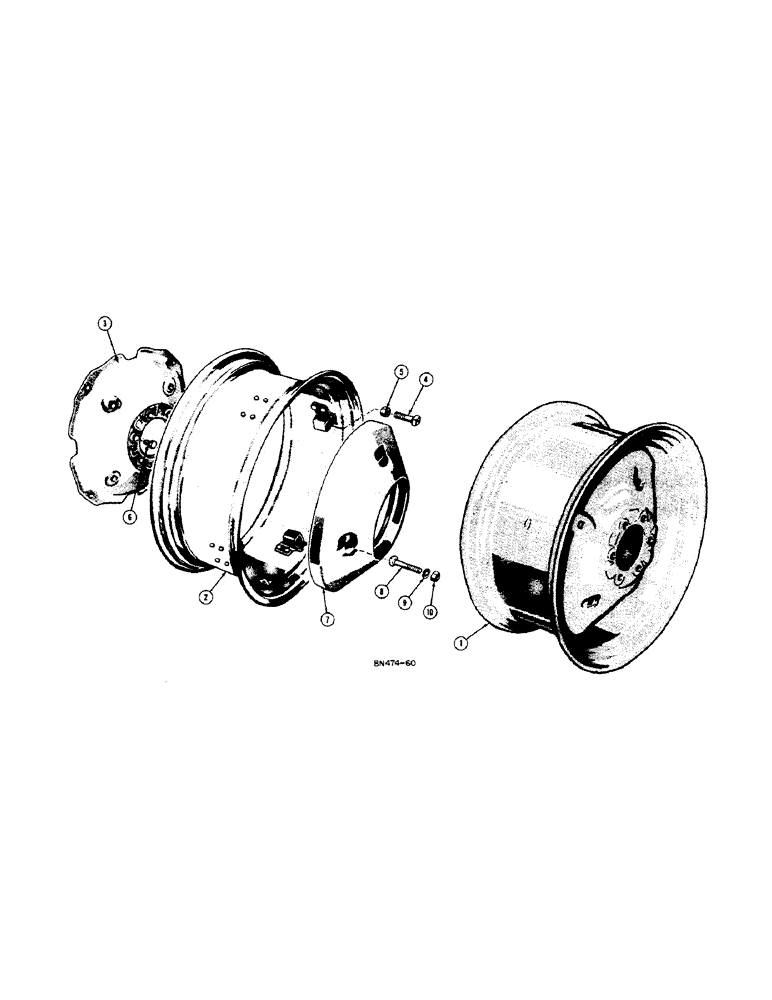

Запчасти Case 320B (102) - REAR WHEELS AND RIMS, (UP TO SERIAL #6128060)

1

G12160

WHEEL - rear (13" x 24" tire)

2шт.

2

G12076

RIM - rear wheel (13" x 24" tire)

2шт.

3

G12004

WHEEL - rear

2шт.

4

V13356

BOLT -, Serial Range: rim-wheel

8шт.

5

G10849

NUT - flanged, rim bolt

8шт.

6

O30739HT

X

BOLT -, Serial Range: wheel-hub

12шт.

G49036

WHEEL BOLT

BOLT - wheel to hub (9/16-18 NF x 1-3/4)

12шт.

G48004

X

BOLT - drive in, wheel to hub (Used when threads in axle flange have been damaged)

12шт.

7

G12071M

WEIGHT - wheel (Set of 2 w/bolts) (Machinery item)

1шт.

G12072M

WEIGHT - wheel (Set of 2 w/bolts, for use as second pair) (Machinery item)

1шт.

8

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

4шт.

9

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

10

25-1010

NUT,5/8"-11, G5

4шт.
