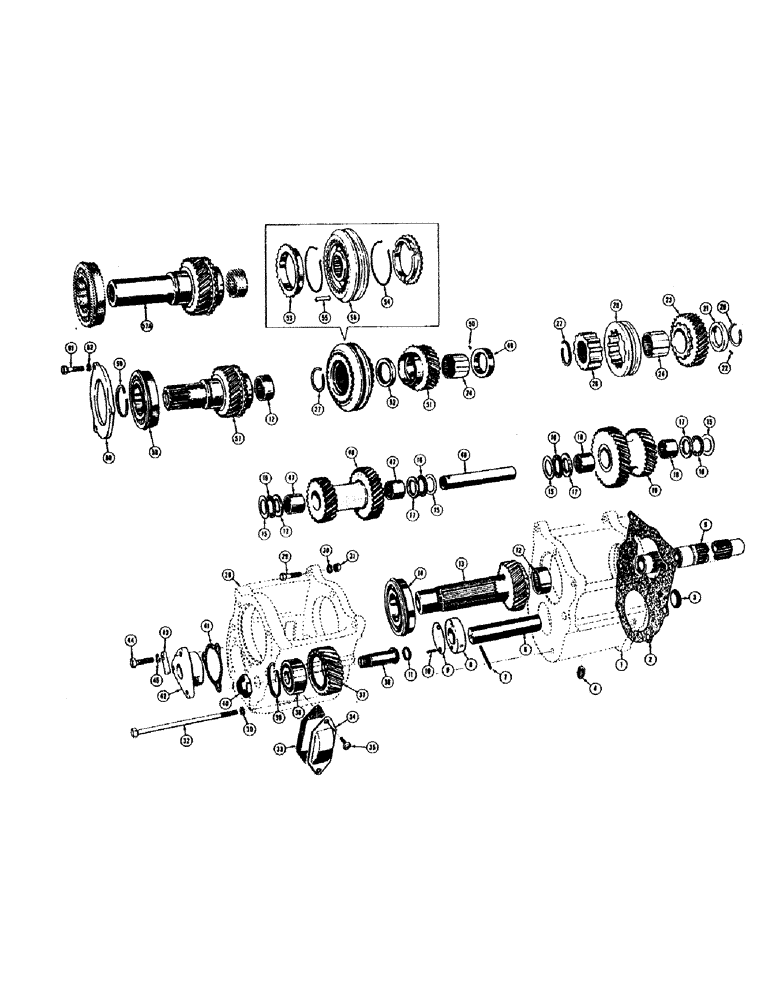

Запчасти Case 320B (094) - SHUTTLE AND DUAL RANGE UNITS

1

G1254

HOUSING - dual range unit

1шт.

2

G46841

GASKET

- housing to transmission case

1шт.

3

VT5156

PLUG - rear, dual range housing (1-1/2" Welch)

1шт.

4

221-849

PLUG,Hex Soc, 1/8"-27

- pipe, socket hd. (1/8 NPT)

1шт.

5

G13462

SHAFT

- main drive

1шт.

6

G16606

SHAFT

COUNTERSHAFT - low range

1шт.

7

138-104

LOCK PIN,3/16" x 2", Slotted

PIN, , Collar to countershaft 3/16" x 2", Slotted

1шт.

8

G16607

COLLAR

- countershaft

1шт.

9

G16608

SHIM,.005" Thk

Countershaft .005" Thk

1шт.

10

138-88

LOCK PIN,3/16" x 1/2", Slotted

PIN, , Countershaft collar 3/16" x 1/2", Slotted

2шт.

11

O8416AB

X

"O" RING - between housing (Use A11027)

1шт.

A11027

GASKET

"O" RING - between housings

1шт.

12

G10419

NEEDLE BEARING

BEARING - needle, input gear and shuttle input gear

2шт.

13

G16623

GEAR

- input (25T)

1шт.

14

G13606

BALL BEARING

BEARING - input gear

1шт.

15

G46081

BEARING WASHER

WASHER - thrust, countershaft outer (.031")

4шт.

16

G13609

THRUST BEARING,25.4mm ID x 39.67mm OD x 1.98mm W

BEARING, THRUST, Countershaft

4шт.

17

G46082

WASHER

- thrust, countershaft inner (.125")

4шт.

18

F51079

NEEDLE BEARING

BEARING - needle, cluster gear

2шт.

19

G16611

GEAR

- cluster, countershaft (34T and 27T)

1шт.

20

O5854AB

X

SNAP RING - thrust collar to main shaft

1шт.

21

G13458

COLLAR

- thrust, output gear, Includes: Ref. 22

1шт.

22

138-18

LOCK PIN,5/64" x 3/8", Slotted

PIN, , Thrust collar 5/64" x 3/8", Slotted

1шт.

23

G16620

GEAR

- output (32T)

1шт.

24

G16619

SLEEVE

- output gear

2шт.

25

G16622

X

COLLAR - shift

1шт.

26

G16621

CARRIER

- shift collar (21T)

1шт.

27

O8997AB

X

SNAP RING - shift collar and synchronizer unit (.076")

1шт.

O8998AB

X

SNAP RING - shift collar and synchronizer unit (.080")

1шт.

O8999AB

X

SNAP RING - shift collar and synchronizer unit (.083")

1шт.

G46097

RING

SNAP RING - shift collar and synchronizer unit (.087")

1шт.

O9000AB

X

SNAP RING - shift collar and synchronizer unit (.091")

1шт.

28

G1255

HOUSING - shuttle gear

1шт.

29

14-628

BOLT,Hex, 3/8" - 24 x 1-3/4", Gr 5

HHCS - 3/8-24 NF x 1-3/4

3шт.

30

92-6

LOCK WASHER,3/8"

WASHER - med. sect. lock, 3/8"

7шт.

31

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8-24 NF)

3шт.

32

13-6104

BOLT,Hex, 3/8" - 16 x 6-1/2", Gr 5

4шт.

33

G46816

GASKET

- gear cover

2шт.

34

G16794

COVER - gear, housing

2шт.

35

182-506

SCREW - gear cover (5/16 x 1/2 spin lock)

4шт.

36

G16613

STUD

- reverse idler gear, shuttle

1шт.

37

G16612

GEAR

- reverse idler, shuttle (24T)

1шт.

38

G13608

BALL BEARING

BEARING - ball, double (Shuttle reverse idler gear)

1шт.

39

O7084AB

X

SNAP RING - bearing to reverse idler gear

1шт.

40

G16614

NUT

- idler gear stud

1шт.

41

G16616

SHIM,.005" Thk

Cluster gear .005" Thk

1шт.

42

G1206

RING

BUSHING - front, countershaft

1шт.

43

G16618

LATCH

LOCK - countershaft

1шт.

44

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

2шт.

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8-16 NC x 1-1/2

1шт.

45

92-6

LOCK WASHER,3/8"

WASHER - med. sect. lock, 3/8"

3шт.

46

G16617

SHAFT

COUNTERSHAFT - cluster gear

1шт.

47

G10420

NEEDLE BEARING

BEARING - needle, countershaft cluster gear

2шт.

48

G16615

GEAR

- cluster, shuttle countershaft (25T and 30T)

1шт.

49

G13459

COLLAR

- thrust, shuttle output gear, Includes: Ref. 50

1шт.

50

138-18

LOCK PIN,5/64" x 3/8", Slotted

PIN, , Thrust collar 5/64" x 3/8", Slotted

1шт.

51

G16624

GEAR

- output, shuttle (27T)

1шт.

52

G16625

COLLAR

- thrust, shuttle output gear

1шт.

53

G46077

RING

- blocking, synchronizing unit

2шт.

54

G46080

X

SPRING - synchronizing unit

2шт.

55

G46078

PLATE

- shifter, synchronizer unit

3шт.

56

G45047

HUB AND SLEEVE - synchronizer unit

1шт.

57

G16799

GEAR WHEEL

GEAR - input, shuttle (28T) (Model 420B)

1шт.

57a

G16626

GEAR

- input, shuttle (28T) (Models 420BD and 320B)

1шт.

58

G13607

BALL BEARING

BEARING - ball, shuttle input gear

1шт.

59

O7528AB

X

SNAP RING - bearing to shuttle input gear

1шт.

60

G16627

RETAINER

- bearing, input gear

1шт.

61

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

3шт.

62

92-6

LOCK WASHER,3/8"

WASHER - med. sect. lock, 3/8"

3шт.
