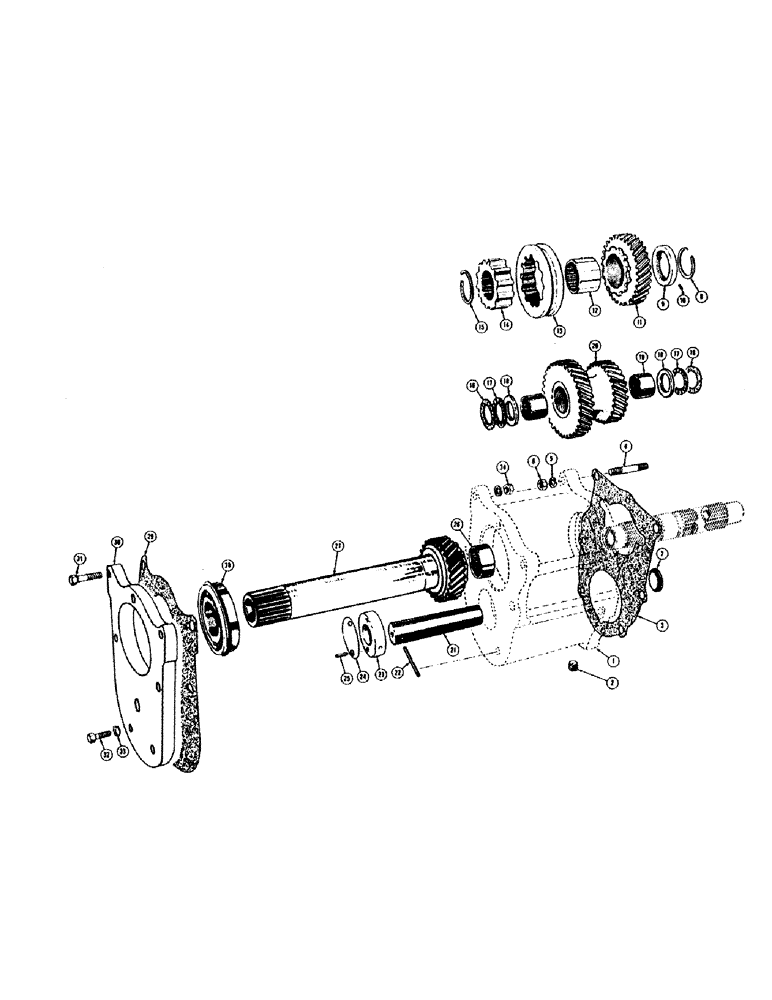

Запчасти Case 320B (090) - DUAL RANGE GEAR AND HOUSING

1

G1254

HOUSING - low range gear

1шт.

2

221-849

PLUG,Hex Soc, 1/8"-27

- pipe, socket hd. (1/8 NPT)

1шт.

3

G46841

GASKET

- low range gear, Serial Range: housing-transmission

1шт.

4

G10710

STUD

- housing to transmission (3/8-24 NF x 1-5/8)

7шт.

5

92-6

LOCK WASHER,3/8"

WASHER - med. sect. lock, 3/8"

7шт.

6

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8-24 NF)

7шт.

7

VT5156

PLUG - rear, low range gear housing (1-1/2" Welch)

1шт.

8

O5854AB

X

SNAP RING - thrust collar to main shaft, low range

2шт.

9

G13458

COLLAR

- thrust, low range output gear, Includes: Ref. 10

1шт.

10

138-18

LOCK PIN,5/64" x 3/8", Slotted

PIN, , Thrust collar 5/64" x 3/8", Slotted

1шт.

11

G16620

GEAR

- output, low range (32T)

1шт.

12

G16619

SLEEVE

- output gear, low range

1шт.

13

G16622

X

COLLAR - shift, low range

1шт.

14

G16621

CARRIER

- shift collar, low range (24T)

1шт.

15

O8997AB

X

SNAP RING - shift collar to main shaft (.076")

1шт.

O8998AB

X

SNAP RING - shift collar to main shaft (.080")

1шт.

O8999AB

X

SNAP RING - shift collar to main shaft (.083")

1шт.

G46097

RING

SNAP RING - shift collar to main shaft (.087")

1шт.

O9000AB

X

SNAP RING - shift collar to main shaft (.091")

1шт.

16

G46081

BEARING WASHER

WASHER - thrust, outer low range countershaft (.031")

2шт.

17

G13609

THRUST BEARING,25.4mm ID x 39.67mm OD x 1.98mm W

BEARING, THRUST, Low range countershaft

2шт.

18

G46082

WASHER

- thrust, inner, low range counter (.125")

2шт.

19

F51079

NEEDLE BEARING

BEARING - needle, countershaft cluster gear

2шт.

20

G16611

GEAR

- cluster, low range countershaft (34T and 27T)

1шт.

21

G16606

SHAFT

COUNTERSHAFT - low range

1шт.

22

138-104

LOCK PIN,3/16" x 2", Slotted

PIN, , Collar to countershaft 3/16" x 2", Slotted

1шт.

23

G16607

COLLAR

- countershaft, low range

1шт.

24

G16608

SHIM,.005" Thk

Countershaft .005" Thk

1шт.

25

138-88

LOCK PIN,3/16" x 1/2", Slotted

PIN, , Countershaft collar 3/16" x 1/2", Slotted

2шт.

26

G10419

NEEDLE BEARING

BEARING - needle, low range input gear

1шт.

27

G16800

GEAR

- input, low range (25T)

1шт.

28

G13606

BALL BEARING

BEARING - ball, low range input gear

1шт.

29

G46825

GASKET

- front cover

1шт.

30

G1253

PLATE - front cover, gear housing

1шт.

31

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

3шт.

32

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

4шт.

33

92-6

LOCK WASHER,3/8"

WASHER - med. sect. lock, 3/8"

7шт.

34

25-106

NUT,3/8"-16, G5

- hex. (3/8-16 NC)

3шт.
