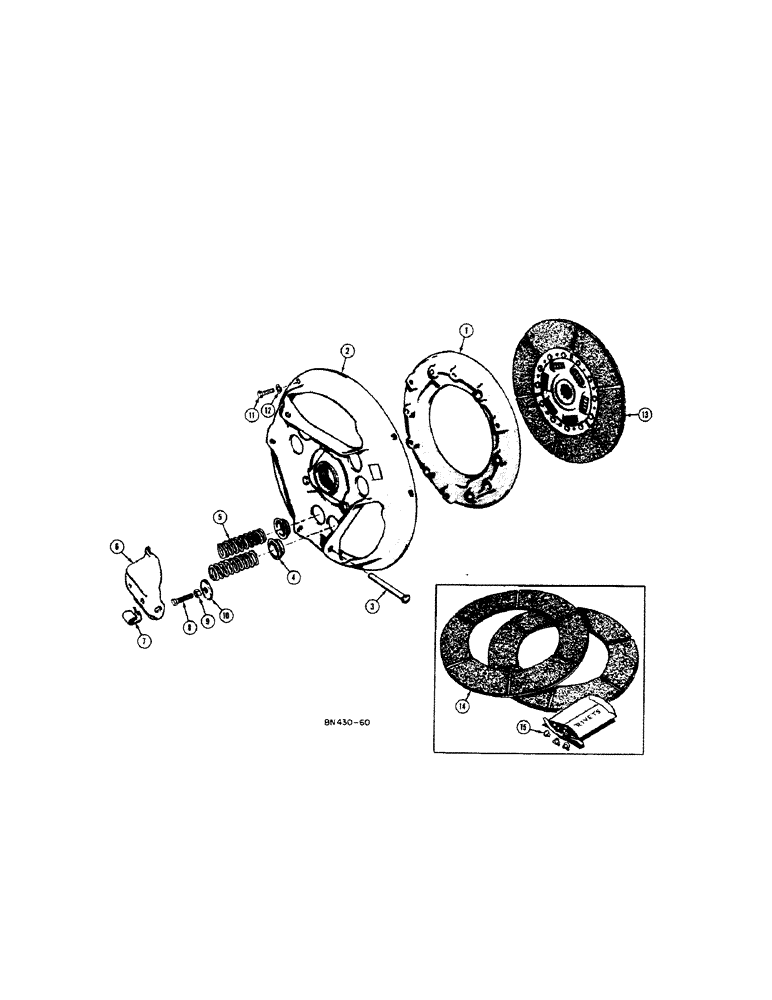

Запчасти Case 320B (082) - CLUTCH (MODEL 420BD)

G1173

PLATE - pressure (Ass'y), Includes: Ref. 1 - 10

1шт.

1

G4506

PLATE

- pressure

1шт.

2

G45700

X

HUB - pressure plate (Use G11173)

1шт.

3

G47011

PIN

- pivot

3шт.

4

G47012

CUP - spring

6шт.

5

G47013

SPRING

- lever (White)

6шт.

6

G47010

LEVER

- clutch

3шт.

7

G46061

CLIP

- clutch return

3шт.

8

G49049

X

SCREW - adjusting

3шт.

9

G49005

NUT - jam, adjusting screw

3шт.

10

G49048

WASHER

- adjusting screw

3шт.

11

G11207

BOLT

- pressure plate to flywheel (5/16 x 1)

6шт.

12

92-5

LOCK WASHER,5/16"

WASHER - med. sect. lock, 5/16"

6шт.

13

G11539

PLATE ASSY.

PLATE - driving, Includes: Ref. 14 and 15

1шт.

G11825

KIT - clutch facing, Includes: Ref. 14 and 15

1шт.

14

NSS

NOT SOLD SEPARAT

FACING - clutch

2шт.

15

G49007

RIVET - facing

20шт.

G11002

PLATE

- pressure (Ass'y)

1шт.
