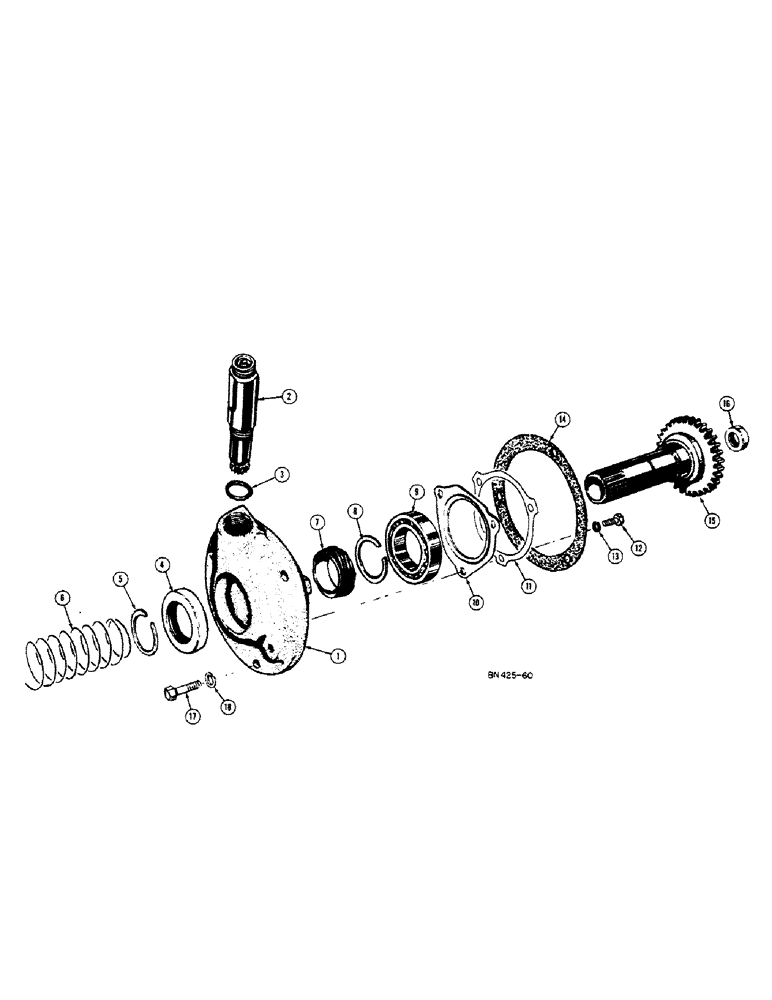

Запчасти Case 320B (078[A]) - HYDRAULIC PUMP AND TACHOMETER DRIVE (MODEL 320B AND 420BD)

1

G1035

HOUSING - hydraulic pump and tachometer drive

1шт.

2

G13073

SLEEVE - tachometer drive and gear

1шт.

3

O3991CS

X

"O" RING - tachometer drive

1шт.

4

G10422

OIL SEAL

- oil, drive housing

1шт.

5

O5854AB

X

SNAP RING - oil, Serial Range: seal-housing

1шт.

6

G16712

VALVE SPRING

SPRING - release, bearing carrier

1шт.

7

G10864

GEAR - tachometer drive

1шт.

8

O6502AB

RING, SNAP

SNAP RING - drive gear bearing

1шт.

9

G13075

BEARING, BALL

BEARING - pump drive gear

1шт.

10

G10383

BEARING CAP

CAP - bearing retainer

1шт.

11

G10382

LOCK

- bearing retainer bolt

1шт.

12

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

3шт.

13

92-5

LOCK WASHER,5/16"

WASHER - med. sect. lock, 5/16"

3шт.

14

G10407

GASKET

- pump drive housing

1шт.

15

G17226

GEAR WHEEL

GEAR - hydraulic pump drive

1шт.

16

G13816

OIL SEAL

- oil drive gear

1шт.

17

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

3шт.

18

92-6

LOCK WASHER,3/8"

WASHER - med. sect. lock, 3/8"

3шт.
