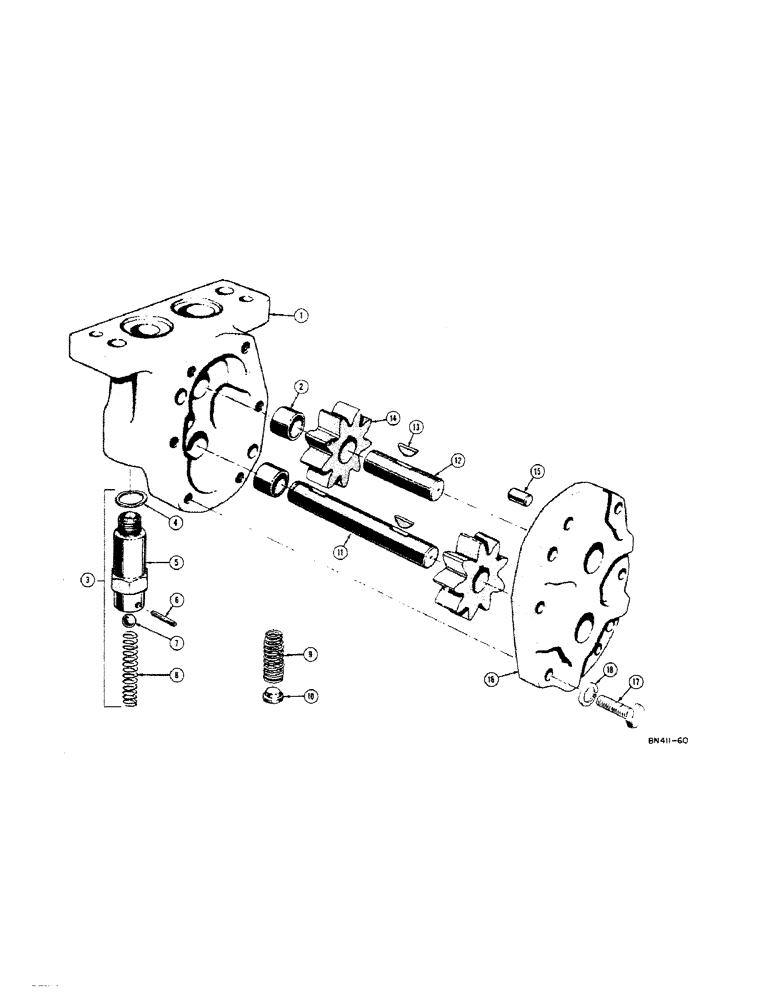

Запчасти Case 320B (074[A]) - A11534 TORQUE CONVERTER DRIVE PUMP

1

A11535

HOUSING - oil pump, Includes: Ref. 2

1шт.

2

A11521

BUSHING,11.89mm ID x 15.93mm OD x 12.83mm L

- shaft

2шт.

3

A20729

X

VALVE - relief (Use G45387), Includes: Ref. 4 - 8

1шт.

G45387

LOCK VALVE

VALVE - relief, Includes: Ref. 4 - 8

1шт.

4

A11530

GASKET

- relief valve

1шт.

5

NSS

NOT SOLD SEPARAT

BODY - relief valve

1шт.

6

138-57

LOCK PIN,1/8" x 3/4", Slotted

PIN, , Relief valve 1/8" x 3/4", Slotted

1шт.

7

VT4905

X

BALL - steel, relief valve (5/16" dia.)

1шт.

8

A20728

SPRING - relief valve (Use G48512)

1шт.

G48512

SPRING

- relief valve (From serial #6128060)

1шт.

9

A11531

SPRING - relief valve (Up to serial #6128060) (Use A20729)

1шт.

10

A11532

SEAT - spring, relief valve (Up to serial #6128060) (Use A20729)

1шт.

11

A11522

SHAFT

- drive

1шт.

12

A11525

SHAFT

- idler

1шт.

13

126-9

WOODRUFF KEY,#3, 1/8" x 1/2"

2шт.

14

A11523

GEAR

- oil pump

2шт.

15

A11528

PIN,7.81mm OD x 14.29mm L

- dowel, Serial Range: cover-pump

2шт.

16

A11536

COVER - oil pump

1шт.

17

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

6шт.

18

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.
