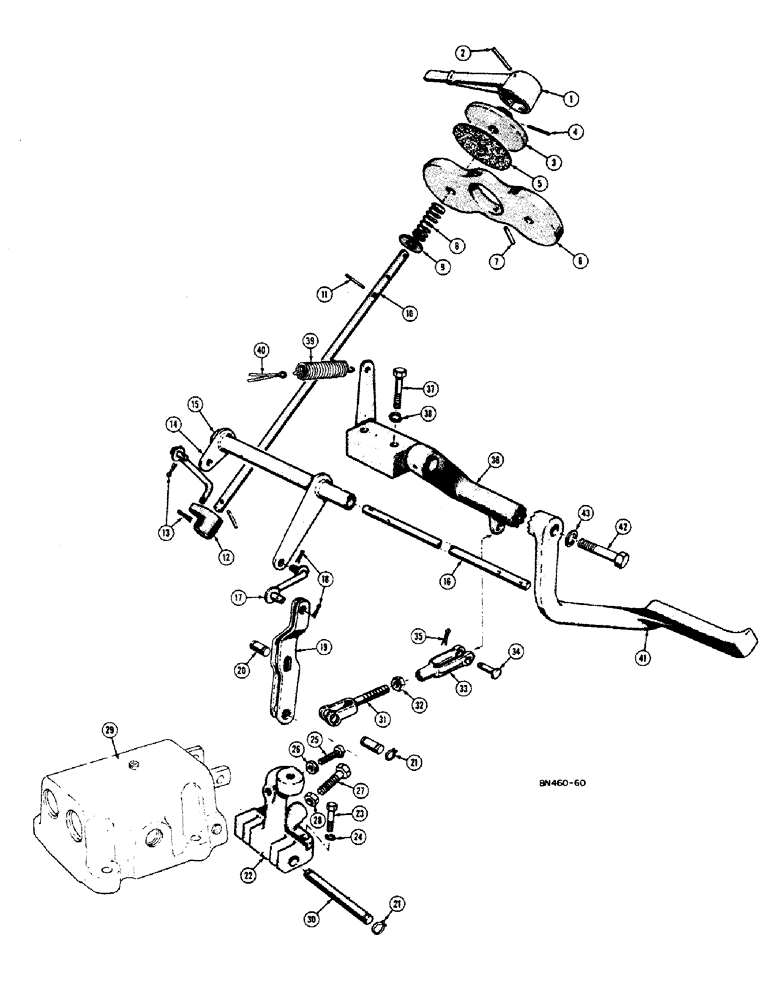

Запчасти Case 320B (070) - TORQUE CONVERTER CONTROL VALVE LINKAGE

1

G1085

LEVER

HANDLE - control, direct drive

1шт.

2

138-82

LOCK PIN,5/32" x 1 5/8", Slotted

PIN, , handle 5/32" x 1 5/8", Slotted

1шт.

3

G1078

PLATE

- friction, hand lever

1шт.

4

138-75

LOCK PIN,5/32" x 7/8", Slotted

PIN, , Slotted, Plate 5/32" x 7/8", Slotted

1шт.

5

G10786

DISC

DISK - cork, friction plate

1шт.

6

G1251

SUPPORT - friction plate

1шт.

7

138-130

LOCK PIN,1/4" x 3/4", Slotted

PIN, , Friction plate support 1/4" x 3/4", Slotted

1шт.

8

VT5129

X

SPRING - tension

1шт.

9

95-7

WASHER,7/16"

- plain (7/16)

1шт.

10

G10743

SHAFT - control valve hand lever

1шт.

11

138-75

LOCK PIN,5/32" x 7/8", Slotted

PIN, , Shaft 5/32" x 7/8", Slotted

2шт.

12

G1293

LEVER - lower, direct drive control

1шт.

13

132-24

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

2шт.

14

G14275

LINK - R.H. cross shaft

1шт.

15

G14116

SHAFT - cross, direct drive

1шт.

16

G10743

SHAFT - control valve hand lever

1шт.

17

G14274

LINK - L.H. cross shaft

1шт.

18

132-24

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

2шт.

19

G14133

LINK - control, direct drive spool

1шт.

20

G16824

AXLE PIN

PIN - upper pivot, direct drive control links

2шт.

21

G46146

SNAP RING,#37, Ext

RING, Snap, , pivot pin #37, Ext

6шт.

22

G1303

BRACKET - L.H. rear, steering support

1шт.

23

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

13-634

BOLT,Hex, 3/8" - 16 x 2-1/8", Gr 5

1шт.

24

92-6

LOCK WASHER,3/8"

WASHER - med. sect. lock, 3/8"

2шт.

25

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

1шт.

26

25-145

JAM NUT,Jam, 5/16"-18, G5

- hex., jam (5/16-18 NC)

1шт.

27

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

28

25-146

JAM NUT,Jam, 3/8"-16, G5

- hex., jam (3/8-16 NC)

1шт.

29

G14458

VALVE - control, torque converter drive (See Figure 74 for breakdown)

1шт.

30

G16825

PIN

- lower pivot, direct drive control links

1шт.

31

G46228

YOKE

END - yoke, torque converter drive spool

1шт.

32

25-145

JAM NUT,Jam, 5/16"-18, G5

- hex., jam (5/16-18 NC)

1шт.

33

VR2695

X

YOKE - control rod, direct drive

1шт.

34

V13836

PIN - yoke (Use A7824)

1шт.

A7824

X

PIN - yoke

1шт.

35

132-26

COTTER PIN

PIN, Split (Cotter), 3/32" x 3/4"

1шт.

36

G14625

LEVER - clutch

1шт.

37

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

38

92-6

LOCK WASHER,3/8"

WASHER - med. sect. lock, 3/8"

2шт.

39

G48509

VALVE SPRING

SPRING - return, clutch pedal

1шт.

40

132-91

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

41

G1301

PEDAL - foot, torque converter drive control

1шт.

42

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

43

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

1шт.
