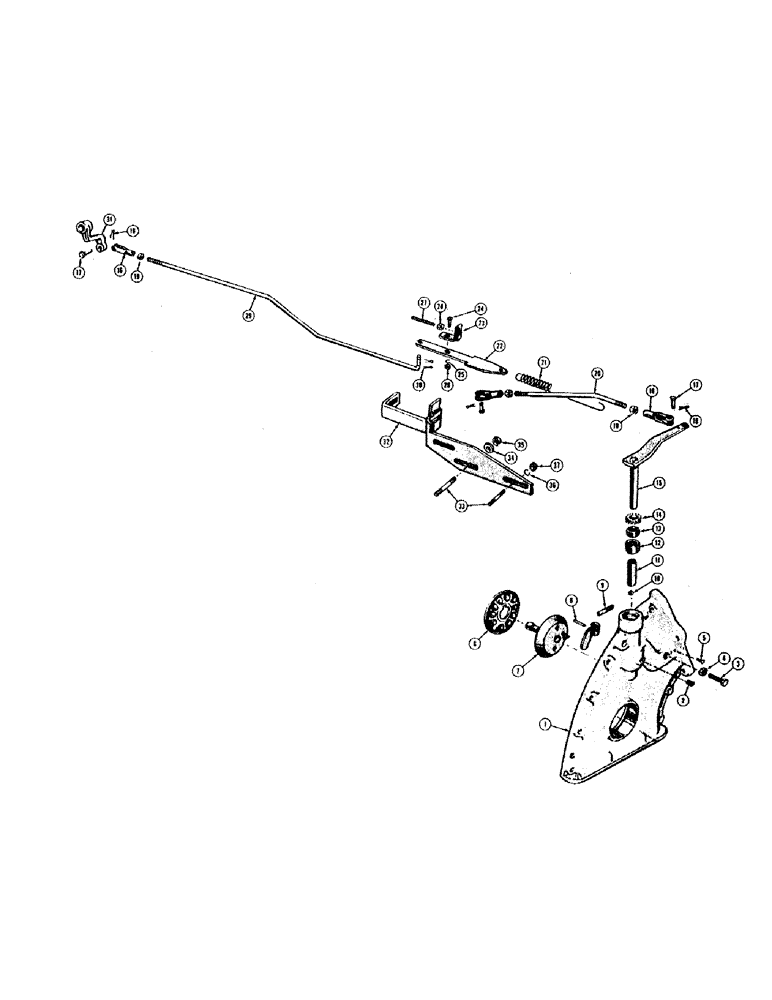

Запчасти Case 320B (066) - THROTTLE CONTROL LINKAGE - DIESEL
№
Артикул
Название
Примечание
Количество
1
GD157B-516
COVER - timing gear
1шт.
2
222-849
PLUG - pipe, ctsk. hd. (1/8 NPT)
1шт.
3
X-6533
SCREW - adjusting, bumper spring (1/4 x 5/8 Nyolok)
1шт.
4
25-104
NUT,1/4"-20, G5
1шт.
5
30585
RIVET - bumper spring to gear cover
2шт.
6
30588
DRIVER - governor
1шт.
7
30589
SHAFT - governor
1шт.
8
139-205
PIN - groove (00 x 3/4) 2/0 x 3/4", Tapered
1шт.
9
30586
SPRING - bumper, governor
1шт.
10
O8635AB
X
BALL - rocker arm thrust bearing (1/4)
1шт.
11
30397
SPACER - governor rocker shaft
1шт.
12
O8089AB
BEARING - needle, governor lever shaft
1шт.
13
30595
SEAL - oil, governor lever shaft
1шт.
14
30594
SEAL - dust, governor shaft
1шт.
15
R13390
SHAFT - lever
1шт.
16
VT2398
X
YOKE - control, Serial Range: rod-lever
3шт.
17
VT2105
X
PIN - yoke
3шт.
18
132-6
COTTER PIN,1/16" x 5/8"
Pin, Split (Cotter) 1/16" x 5/8"
3шт.
19
25-154
JAM NUT,Jam, 1/4"-28, G5
Hex Jam, 1/4"-28, G5
3шт.
20
30418
ROD - governor control, Serial Range: lever-pump
1шт.
21
30422
SPRING - governor
1шт.
22
30593
LEVER - variable speed control
1шт.
23
30592
CLIP - adjusting, governor idle stop
1шт.
24
14-410
SCREW,Hex, 1/4" - 28 x 5/8", Gr 5
HHCS - 1/4-28 NF x 5/8
1шт.
25
92-4
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
1шт.
26
25-114
NUT,1/4"-28, G5
- hex. (1/4-28 NF)
1шт.
27
30591
SCREW - adjusting, idle stop
1шт.
28
25-154
JAM NUT,Jam, 1/4"-28, G5
Hex Jam, 1/4"-28, G5
1шт.
29
G15522
ROD - cross shaft lever to pump control lever
1шт.
30
132-26
COTTER PIN
Pin, Split (Cotter), 3/32" x 3/4"
2шт.
31
G1147
LEVER - cross, Serial Range: shaft-yoke
1шт.
32
GD157S-3020
BRACKET - stop
1шт.
33
30425
CONNECTOR, ELEC
STUD - governor control bracket (3/8-16 NC x 1-1/2)
2шт.
34
V20214
WASHER
- control bracket stud
2шт.
35
30426
NUT - drilled, stop bracket stud
1шт.
36
92-6
LOCK WASHER,3/8"
WASHER - med. sect. lock, 3/8"
1шт.
37
25-106
NUT,3/8"-16, G5
- hex. (3/8-16 NC)
1шт.
Выбрано товаров: 37
