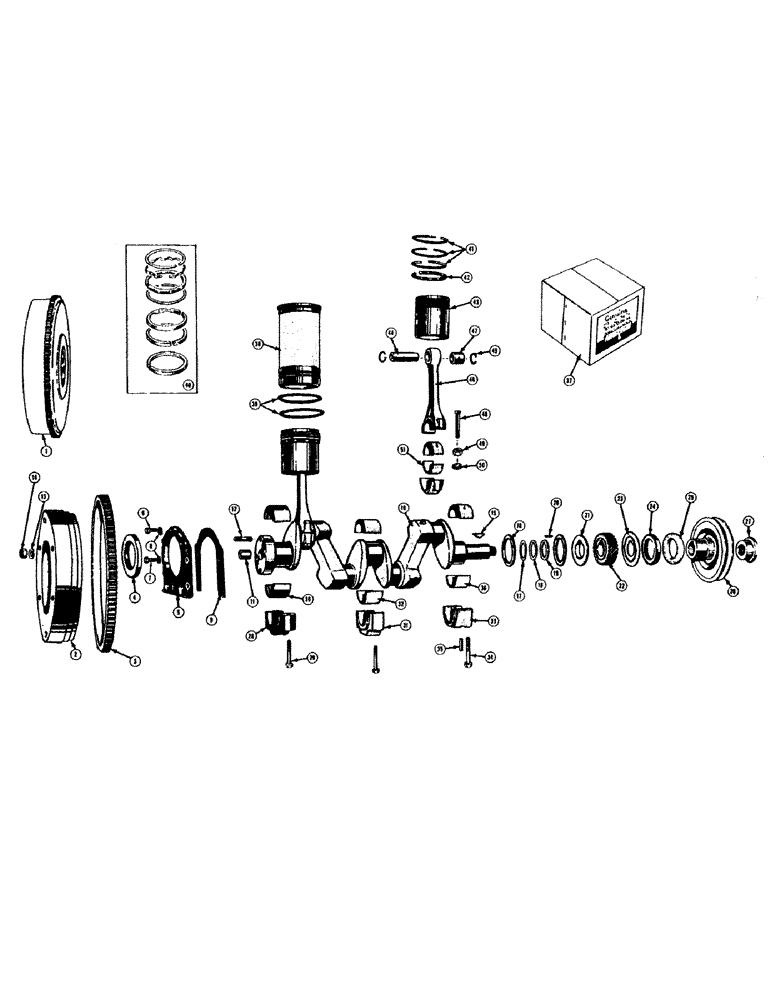

Запчасти Case 320B (008) - FLYWHEEL, CRANKSHAFT, AND PISTONS - GAS

1

G11842

FLYWHEEL - (Model 420B), Includes: Ref. 3

1шт.

2

G14087

FLYWHEEL - (Model 420BD), Includes: Ref. 3

1шт.

3

G11710

GEAR

- ring, flywheel (135T)

1шт.

4

G10005

X

SEAL - oil, crankshaft rear (Use G13824 or G13811)

1шт.

G13824

RUBBER SEAL

SEAL - oil, crankshaft rear (Model 420B)

1шт.

G13811

RUBBER SEAL

SEAL - oil, crankshaft rear (Model 420BD)

1шт.

5

G1016

RETAINER - rear oil seal, crankshaft

1шт.

6

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

3шт.

7

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

4шт.

8

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

7шт.

9

G10007

GASKET

- retainer, rear oil seal

1шт.

10

G11164

CRANKSHAFT, Includes: Ref. 11

1шт.

11

VT3370

X

BUSHING - pilot, crankshaft

1шт.

12

VT4513

X

STUD - flywheel to crankshaft (7/16-20 NF x 1-3/4)

4шт.

13

92-7

LOCK WASHER,7/16"

WASHER - med. sect. lock, 7/16"

4шт.

14

25-117

NUT,7/16"-20, G5

- hex. (7/16-20 NF)

4шт.

15

VT3397

KEY - pulley and, Serial Range: gear-crankshaft

2шт.

16

VT3376

WASHER

- thrust, crankshaft

2шт.

17

VT3368

X

SHIM - crankshaft thrust (.010")

1шт.

18

VT3367

X

SHIM - crankshaft thrust (.002")

1шт.

19

VT3377

X

SPACER - thrust, crankshaft

2шт.

20

VT3364

X

PIN - thrust washer

2шт.

21

VT3230

X

PLATE - crankshaft thrust

1шт.

22

VT3225

X

GEAR - crankshaft (24T)

1шт.

23

VT3220

X

SLINGER - oil, crankshaft front bearing

1шт.

24

VT3373

SEAL - oil, crankshaft front

1шт.

25

VT3380

SEAL - dust, drive pulley

1шт.

26

G11712

PULLEY

- fan belt drive

1шт.

27

G11263

NUT

- crankshaft pulley

1шт.

28

G1001

CAP - bearing, crankshaft rear

1шт.

29

G10213

BOLT

- place, center and rear bearing caps (1/2-13 NC x 2-1/2)

2шт.

30

G11036

KIT

LINERS - crankshaft rear bearing, top and bottom half (Standard)

1шт.

G11037

LINERS - crankshaft rear bearing, top and bottom half (.002" undersize)

1шт.

G11038

KIT

LINERS - crankshaft rear bearing, top and bottom half (0.020" undersize)

1шт.

G11040

LINERS - crankshaft rear bearing, top and bottom half (.040" undersize)

1шт.

31

VT130

CAP - bearing, crankshaft center

1шт.

32

G11018

KIT

LINERS - crankshaft center bearing, top and bottom half (Standard)

1шт.

G11019

LINERS - crankshaft center bearing, top and bottom half (.002" undersize)

1шт.

G11020

BEARING LINER

LINERS - crankshaft center bearing, top and bottom half (.020" undersize)

1шт.

G11022

LINERS - crankshaft center bearing, top and bottom half (.040" undersize)

1шт.

33

VT157

CAP - bearing, crankshaft front

1шт.

34

G10214

BOLT - place, front bearing cap (1/2-13 NC x 3-1/8)

2шт.

35

VT3355

PIN - dowel, front bearing cap to oil pump

2шт.

36

G11012

KIT

LINERS - crankshaft front bearing, top and bottom half (Standard), Includes: Ref. 38 - 45

1шт.

G11013

SLEEVE CYLINDER

LINERS - crankshaft front bearing, top and bottom half (.002" undersize), Includes: Ref. 38 - 45

1шт.

G11014

BEARING LINER

LINERS - crankshaft front bearing, top and bottom half (.020" undersize), Includes: Ref. 38 - 45

1шт.

G11016

BEARING LINER

LINERS - crankshaft front bearing, top and bottom half (.040" undersize), Includes: Ref. 38 - 45

1шт.

37

G11007

SLEEVE ASSY

SET - sleeve ass'y, Includes: Ref. 38 - 45

1шт.

38

G1061

SLEEVE

- cylinder (3-3/8" bore)

4шт.

39

VT3375

X

"O" RING - cylinder sleeve packing seal

8шт.

40

G11116

PISTON RING SET

SET - rings, 2 in 1 chrome, Includes: Ref. 41 and 42

1шт.

41

G1062

OIL SEAL

RING - piston, compression

12шт.

42

G1063

OIL SEAL

RING - piston, oil control

4шт.

43

G1060

PISTON

- 3-3/8" bore, 4 ring

4шт.

G11925

PISTON PIN

KIT - wrist pin, Includes: Ref. 44 and 45

1шт.

44

G10233

PIN

- piston wrist

4шт.

45

VT3363

X

SNAP RING - wrist pin

8шт.

46

G10074

ROD

- connecting, ass'y, Includes: Ref. 47 - 50

4шт.

47

VT3392

X

BUSHING - piston pin

1шт.

48

G11701

BOLT

- connecting rod

2шт.

49

VT4506

X

NUT - hex. connecting rod bolt

2шт.

50

G49001

X

NUT - connecting bolt (3/8" Palnut)

2шт.

51

G11141

BEARING LINER

LINERS - connecting rod bearing, top and bottom half (Standard)

4шт.

G11142

KIT

LINERS - connecting rod bearing, top and bottom half (.002" undersize)

4шт.

G11143

BEARING LINER

LINERS - connecting rod bearing, top and bottom half (.020 undersize)

4шт.

G11145

BEARING LINER

LINERS - connecting rod bearing, top and bottom half (.040" undersize)

4шт.
