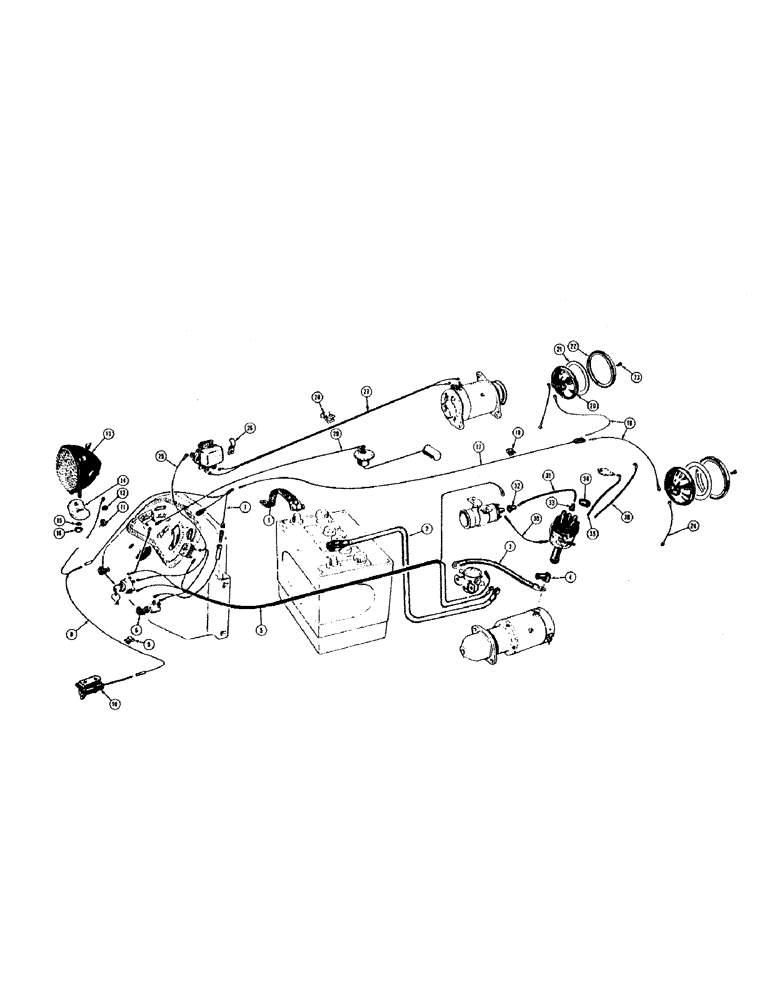

Запчасти Case 320B (058) - HEAD LAMPS AND ELECTRIC CABLES

1

VT2336

X

STRAP -, Serial Range: battery-ground

1шт.

2

G13163

CABLE -, Serial Range: battery-solenoid

1шт.

3

G13164

CABLE - solenoid to starter (9" long)

1шт.

G44014

CABLE - solenoid to starter (14-1/2" long)

1шт.

4

A21753

CAP

NIPPLE - rubber, starter and solenoid terminal

3шт.

5

G13158

CABLE - ignition switch to solenoid, coil, ammeter, and fuel gauge

1шт.

6

G13142

IGNITION SWITCH

SWITCH - light

1шт.

7

G13161

CABLE -, Serial Range: switch-lamps

1шт.

8

G13162

CABLE - extension, tail lamp and outlet socket

1шт.

9

O2457AB

CLIP - cable, tail lamp and outlet socket

5шт.

10

A8170

SOCKET

- electrical outlet

1шт.

11

G16507

CLIP -, Serial Range: cable-fender

3шт.

12

O8332AB

X

GROMMET - rubber, grille cap and L.H. fender

2шт.

13

O9897AB

X

LAMP - flood and tail (See page 60 for breakdown)

1шт.

A11898

X

LAMP - flood and tail (See page 60 for breakdown)

1шт.

14

G1115

BRACKET

- tail lamp

1шт.

15

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

1шт.

16

25-108

NUT,1/2"-13, G5

- hex. (1/2-13 NC)

1шт.

17

G44024

EXTENSION - switch cable to head lamp cable

1шт.

18

O7532AB

CLIP - extension, Serial Range: cable-engine

1шт.

19

G44025

CABLE - head lamp

2шт.

20

A11280

LAMP

- head

2шт.

21

A11276

GASKET

- head, Serial Range: lamp-ring

2шт.

22

A11275

RING

- retainer, head lamp

2шт.

23

187-309

SCREW

- pan hd. (#6-32 NC x 1/2)

6шт.

24

A11768

ELECTRICAL WIRE

CABLE - head, Serial Range: lamp-ground

2шт.

25

G13159

CABLE - ammeter to regulator, light switch, and starting switch

1шт.

26

G10853

CLIP - fuse holder, man light cable

1шт.

27

G13160

CABLE -, Serial Range: generator-regulator

1шт.

28

O7532AB

CLIP - generator, Serial Range: cable-engine

1шт.

29

G13087

CABLE PULLING GRIP

CABLE - fuel tank sender to fuel gauge

1шт.

30

G13085

ELECTRICAL WIRE

CABLE - coil to distributor (12" long)

1шт.

31

VT3534

X

CABLE - coil to distributor (11" long)

1шт.

32

G46803

BOOT

NIPPLE - rubber, Serial Range: cable-coil

1шт.

33

VT3561

X

NIPPLE - rubber, spark plug wire and coil cable

5шт.

34

V20356

NUT

WASHER - harness, spark plug wires

1шт.

35

VTA3354

X

WIRE - spark plugs, #2 and #3 (8-1/2" long)

2шт.

36

VT2879

X

WIRE - spark plugs, #1 and #4 (10-1/2" long)

2шт.
