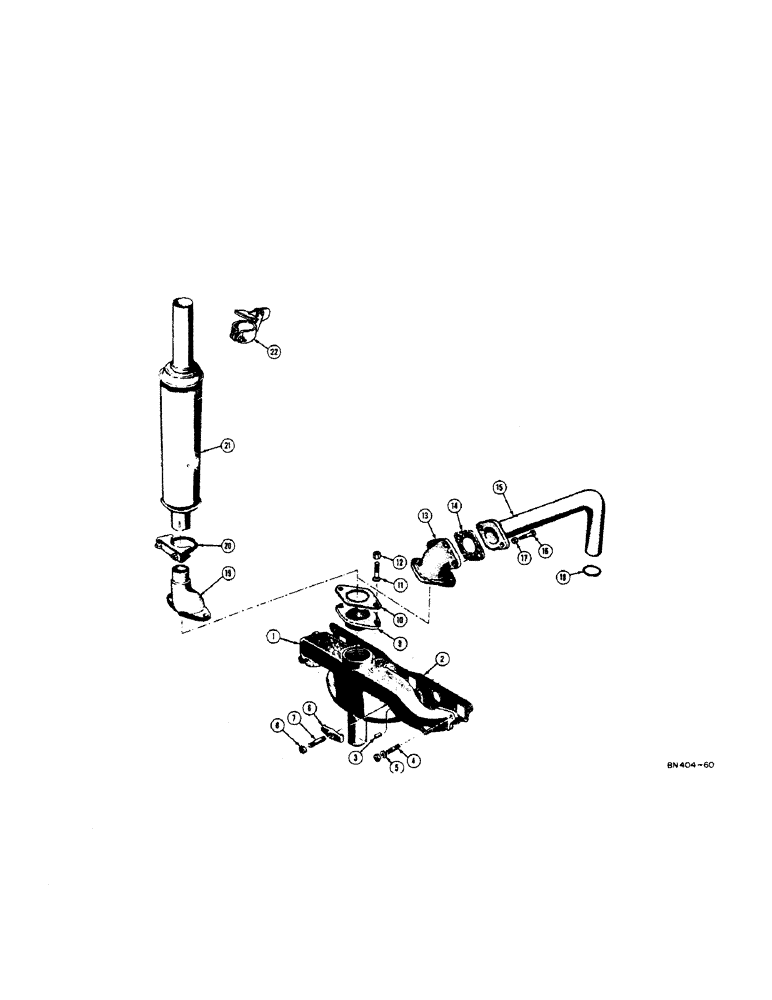

Запчасти Case 320B (042[A]) - MANIFOLD AND MUFFLER - DIESEL

1

GD157E-501

MANIFOLD - exhaust and intake

1шт.

2

30111

COLLAR

GASKET -, Serial Range: manifold-head

1шт.

3

30234

DOWEL -, Serial Range: manifold-head

2шт.

4

VT4501

STUD - manifold to head (3/8 x 1-11/16)

4шт.

5

V20214

WASHER

- plain, manifold stud

4шт.

6

30110

DECAL

CLAMP - manifold

4шт.

7

30248

HYDRAULIC PUMP

STUD - manifold to head, lower center (3/8 x 2-1/8)

4шт.

8

VT3362

X

NUT - brass, manifold studs

8шт.

9

G1143

COUPLING - exhaust, Serial Range: elbow-manifold

1шт.

10

G11232

GASKET -, Serial Range: elbow-coupling

1шт.

11

11-624

BOLT

- 3/8-16 NC x 1-1/2

2шт.

12

VT3362

X

NUT - brass, elbow bolt

2шт.

13

G1173

ELBOW - exhaust, crossover pipe

1шт.

14

G11201

GASKET

- crossover, Serial Range: pipe-elbow

1шт.

15

G13348

PIPE - exhaust, crossover

1шт.

16

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

17

VT3362

X

NUT - brass, pipe

2шт.

18

G13349

GASKET - crossover, Serial Range: pipe-flange

1шт.

19

G1144

ELBOW - exhaust, upright muffler

1шт.

20

G13184

CLAMP

- upright muffler

1шт.

21

VTA2811

X

MUFFLER - upright

1шт.

22

G45048

CAP

- weather

1шт.
