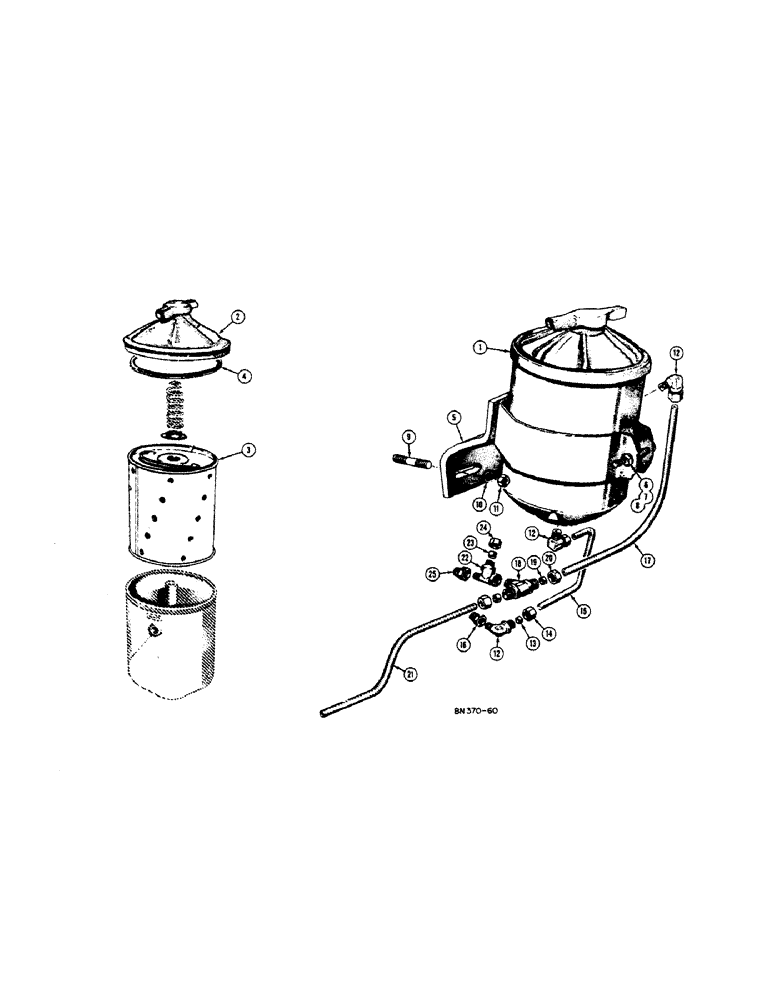

Запчасти Case 320B (040[A]) - ENGINE OIL FILTER - DIESEL

1

G11068

O-RING

FILTER - oil, engine, Includes: Ref. 2 - 4

1шт.

2

G45007

COVER - filter, oil

1шт.

3

G45008

ELEMENT

CARTRIDGE - replacement, Includes: Ref. 4

1шт.

4

G46006

GASKET

- filter, Serial Range: cover-body

1шт.

5

G13325

BRACKET - oil filter mounting

1шт.

6

75-416

SCREW,Rd, 1/4" - 20 x 1"

- rd. hd. (1/4-20 NC x 1)

1шт.

7

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

8

25-104

NUT,1/4"-20, G5

1шт.

9

30333

STUD - mounting, oil filter bracket

2шт.

10

92-5

LOCK WASHER,5/16"

WASHER - med. sect. lock, 5/16"

2шт.

11

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16-18 NC)

2шт.

12

222-42

ELBOW,90 Degree, 1/2"-24 Fem x 1/8"-27 NPTF

- (1/4 x 1/8), Includes: Ref. 13 and 14

3шт.

13

222-102

SLEEVE,1/4" Tube

1шт.

14

87017024

TUBE NUT,1/2"-24

NUT - tube (1/4)

1шт.

15

G11229

LINE - oil, Serial Range: engine-filter

1шт.

16

217-40

REDUCER,1/4"-18 NPTF x 1/8"-27 Fem NPTF

Bushing 1/4"-18 NPTF x 1/8"-27 Fem NPTF

1шт.

17

G11227

LINE - oil, Serial Range: filter-engine

1шт.

18

222-72

TEE,1/4" Flex Tube Run x 1/8" NPTF Br

- (1/4 x 1/8), Includes: Ref. 19 and 20

1шт.

19

222-102

SLEEVE,1/4" Tube

2шт.

20

87017024

TUBE NUT,1/2"-24

NUT - tube (1/4)

2шт.

21

30387

LINE - oil, engine to injection pump

1шт.

22

222-80

TEE - (1/8 x 1/8), Includes: Ref. 23 - 25

1шт.

23

222-100

TUBE NUT,1/8" Tube

SLEEVE - (1/8)

1шт.

24

222-110

TUBE NUT,3/8"-24

NUT - tube (1/8)

1шт.

25

217-40

REDUCER,1/4"-18 NPTF x 1/8"-27 Fem NPTF

Bushing 1/4"-18 NPTF x 1/8"-27 Fem NPTF

1шт.
