Запчасти Case 320B (036) - FLYWHEEL, CRANKSHAFT, AND PISTONS - DIESEL

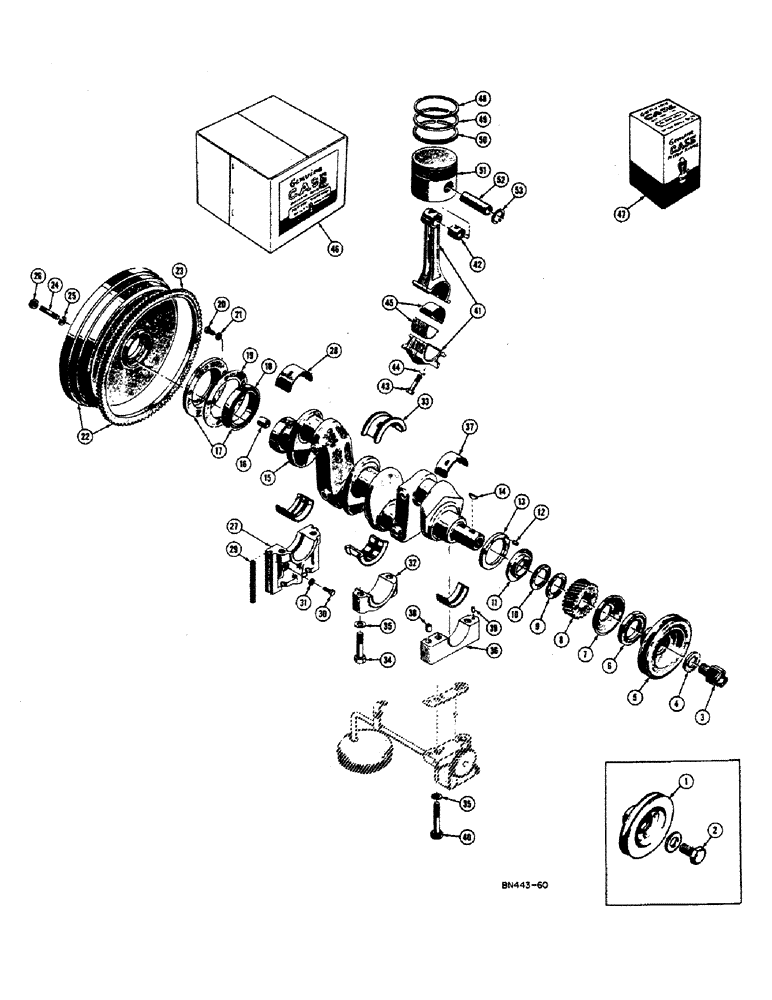

Схема запчастей Case 320B - (036) - FLYWHEEL, CRANKSHAFT, AND PISTONS - DIESEL

Артикул

Название

Примечание

Количество

1

G1163

PULLEY - fan drive

1шт.

2

G47500

SCREW - fan drive pulley

1шт.

3

30092

JAW - starting

1шт.

4

2974055

BULB,C5W, 24V, 5W

WASHER - starting jaw

1шт.

5

GD157K-317

PULLEY - fan drive

1шт.

6

VT3380

SEAL - dust, fan drive pulley

1шт.

7

30086

THROWER - oil, crankshaft

1шт.

8

GD157H-304

GEAR - timing, crankshaft

1шт.

9

VT3368

X

SHIM - thrust plate, crankshaft (.008")

1шт.

10

VT3367

X

SHIM - thrust plate, crankshaft (.002")

1шт.

11

VT3230

X

PLATE - thrust, crankshaft

1шт.

12

VT3364

X

PIN - thrust washer

3шт.

13

30085

WASHER - thrust, crankshaft

2шт.

14

VT3397

KEY - timing gear and fan drive, Serial Range: pulley-crankshaft

2шт.

15

GD157C-2151

CRANKSHAFT

1шт.

16

VT3370

X

BUSHING - pilot, crankshaft, Includes: Ref. 16

1шт.

17

VTA694

X

RETAINER - oil seal, crankshaft rear

1шт.

18

G13811

RUBBER SEAL

SEAL - oil, crankshaft rear

1шт.

19

VT3250

X

GASKET - rear oil seal retainer

1шт.

20

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

3шт.

21

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

22

GD157C-4240

FLYWHEEL, Includes: Ref. 23

1шт.

23

GD157C-312

GEAR - ring, flywheel

1шт.

24

X-4055

STUD - flywheel to crankshaft (7/16-20 NF x 1-7/8)

4шт.

25

92-7

LOCK WASHER,7/16"

WASHER - med. sect. lock, 7/16"

4шт.

26

25-117

NUT,7/16"-20, G5

- hex. (7/16-20 NF)

4шт.

27

30059

PRESSURE PIPE

CAP - rear bearing, crankshaft

1шт.

28

30289

ARM

LINER - crankshaft rear bearing, top and bottom half (Standard)

1шт.

30289-.002

LINER - crankshaft rear bearing, top and bottom half (.002" undersize)

1шт.

30289-.020

LINER - crankshaft rear bearing, top and bottom half (.020" undersize)

1шт.

30289-.040

LINER - crankshaft rear bearing, top and bottom half (.040" undersize)

1шт.

30289-.060

LINER - crankshaft rear bearing, top and bottom half (.060" undersize)

1шт.

29

VT3391

PACKING

- rear bearing cap

2шт.

30

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

2шт.

31

VT3396

X

GASKET - copper, oil seal, Serial Range: retainer-cap

2шт.

32

GD157B-319

CAP - center bearing, crankshaft

1шт.

33

35452

SUPPORT

LINER - crankshaft center bearing, top and bottom half (Standard)

1шт.

35452-.002

LINER - crankshaft center bearing, top and bottom half (.002" undersize)

1шт.

35452-.020

LINER - crankshaft center bearing, top and bottom half (.020" undersize)

1шт.

35452-.040

LINER - crankshaft center bearing, top and bottom half (.040" undersize)

1шт.

35452-.060

LINER - crankshaft center bearing, top and bottom half (.060" undersize)

1шт.

34

30239

SCREW - center and rear bearing caps to block (1/2 x 2-1/2)

4шт.

35

VT3359

WASHER - bearing cap screw

6шт.

36

G157B-317

CAP - front bearing, crankshaft

1шт.

37

NLS

NO LONGER SERVICED

LINER - crankshaft front bearing, top and bottom half (Standard)

1шт.

30290-.002

LINER - crankshaft front bearing, top and bottom half (.002" undersize)

1шт.

30290-.020

LINER - crankshaft front bearing, top and bottom half (.020" undersize)

1шт.

30290-.040

LINER - crankshaft front bearing, top and bottom half (.040" undersize)

1шт.

30290-.060

LINER - crankshaft front bearing, top and bottom half (.060" undersize)

1шт.

38

10294

BUSHING

DOWEL - ring, front bearing, Serial Range: cap-block

1шт.

39

30271

DOWEL - front and center bearing cap

3шт.

40

30246

SCREW - center and rear bearing caps to block (1/2 x 2-1/2)

4шт.

41

G157D-5002

ROD - connecting, Includes: Ref. 42 - 44

4шт.

42

30185

BUSHING - connecting rod

1шт.

43

30238

FLASHER UNIT

BOLT - connecting rod

2шт.

44

193-10

LOCK WASHER,Ext Tooth, 0.391" ID x 0.682" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 3/8"

2шт.

45

G157T-112

LINER - connecting rod bearing, top and bottom half (Standard)

4шт.

G157T-112-.002

LINER - connecting rod bearing, top and bottom half (.002" undersize)

4шт.

G157T-112-.020

LINER - connecting rod bearing, top and bottom half (.020" undersize)

4шт.

G157T-112-.040

LINER - connecting rod bearing, top and bottom half (.040" undersize)

4шт.

G157T-112-.060

LINER - connecting rod bearing, top and bottom half (.060" undersize)

4шт.

46

5977

KIT

- sleeve and piston, Includes: Ref. 47 - 50

1шт.

47

5950

KIT - piston ring (2 in 1 chrome)

1шт.

48

30066

SEALING RING COLLAR

RING - piston (1st groove)

4шт.

49

30017

WASHER

RING - piston (2nd and 3rd grooves)

8шт.

50

30067

RING - piston (4th groove)

4шт.

51

30032

PRESSURE PIPE

PISTON - cylinder

4шт.

5960

SPARE PART

KIT - pin, Includes: Ref. 52 and 53

1шт.

52

30012

PIN - piston

4шт.

53

30043

CIRCLIP

SNAP RING - piston pin

8шт.

Выбрано товаров: 70
