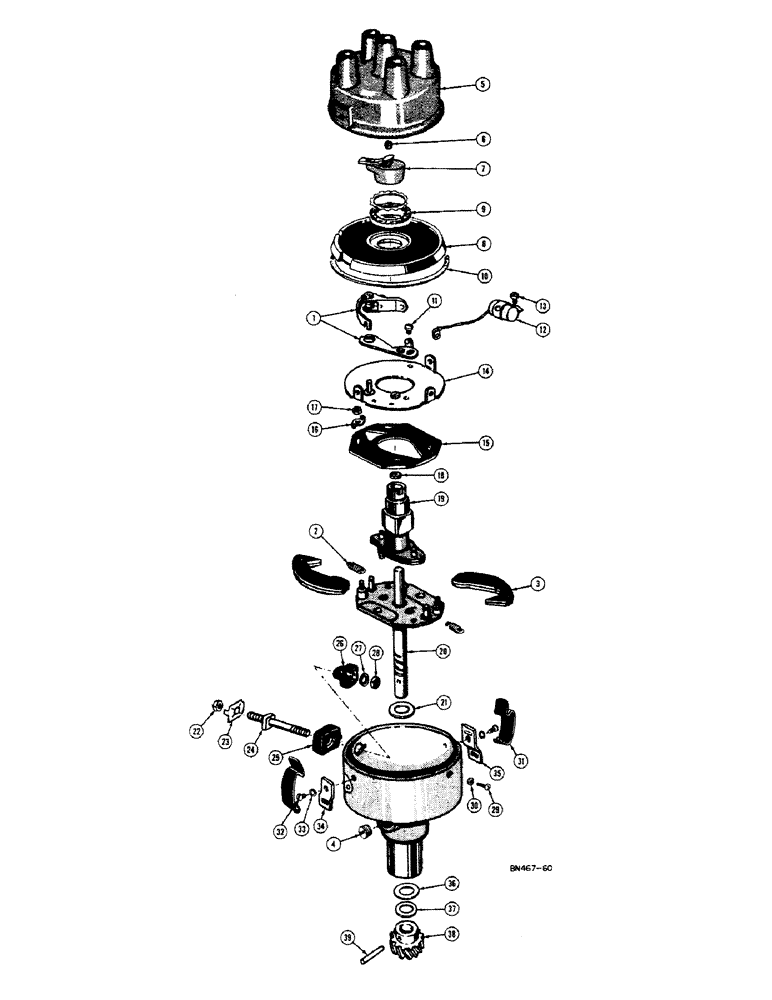

Запчасти Case 320B (032) - DISTRIBUTORS - DELCO-REMY

G44858

X

DISTRIBUTOR - Delco-Remy #1111908 (Used on model 420B), Includes: Ref. 1 - 39

1шт.

G44858 and G44859 distributors are identical except for governor weights, spring, and housing plugs.

1шт.

G44859

X

DISTRIBUTOR - Delco-Remy #1111909 (Used on model 420BD), Includes: Ref. 1 - 39

1шт.

G44858 and G44859 distributors are identical except for governor weights, spring, and housing plugs.

1шт.

1

F10714

POINT

CONTACT SET - breaker points (Delco-Remy #1855720)

1шт.

2

1947657

SPRING - governor weight (G44858 distributor)

1шт.

G44858 and G44859 distributors are identical except for governor weights, spring, and housing plugs.

1шт.

1947660

SPRING - governor weight (G44859 distributor)

1шт.

G44858 and G44859 distributors are identical except for governor weights, spring, and housing plugs.

1шт.

3

1881371

WEIGHT - governor (G44858 distributor)

1шт.

G44858 and G44859 distributors are identical except for governor weights, spring, and housing plugs.

1шт.

1873697

WEIGHT - governor (G44859 distributor)

1шт.

G44858 and G44859 distributors are identical except for governor weights, spring, and housing plugs.

1шт.

4

453465

PLUG - pipe, distributor housing (G44858 distributor)

1шт.

G44858 and G44859 distributors are identical except for governor weights, spring, and housing plugs.

1шт.

125497

PLUG - pipe, distributor housing (G44859 distributor)

1шт.

G44858 and G44859 distributors are identical except for governor weights, spring, and housing plugs.

1шт.

5

811735

COVER ASSY

CAP - distributor, Includes: Ref. 6

1шт.

6

1938193

BUTTON - carbon

1шт.

7

820445

PLUG

1шт.

8

1900119

COVER

- distributor housing, Includes: Ref. 9 and 10

1шт.

9

1914309

WASHER - felt, housing cover

1шт.

10

1889966

GASKET - housing cover

1шт.

11

816784

SCREW - adjusting, contact set

1шт.

12

1869704

CONDENSER

1шт.

13

131949

DECAL KIT

- condenser attaching

1шт.

14

1847683

PLATE - breaker

1шт.

15

1885557

PLATE - hold down, governor weight

1шт.

16

1885558

LOCKWASHER - weight hold down plate

2шт.

17

1923540

NUT

- attaching, weight hold down plate

2шт.

18

819639

WICK - felt

1шт.

19

1947656

CAM - advance and breaker

1шт.

20

1947655

SHAFT - main, weight plate

1шт.

21

811912

WASHER

- spacer, weight plate

1шт.

22

120622

NUT,#8-32

Outside, terminal stud #8-32

1шт.

23

1914144

CLIP - lock, terminal stud

1шт.

24

1916806

STUD

- terminal

1шт.

25

1914142

BUSHING - outside, terminal stud

1шт.

26

1916805

BUSHING

- inside, terminal stud

1шт.

27

1904376

WASHER

LOCKWASHER - inside, terminal stud

1шт.

28

817363

NUT - terminal stud

1шт.

29

174-211

SCREW,Sl Rnd Hd, #8 - 32 x 5/16"

- support, breaker plate

2шт.

30

121841

LOCK WASHER,#8

WASHER, LOCK, , Screw, breaker plate #8

2шт.

31

1889967

SPRING - anchor, distributor cap

2шт.

32

121832

SCREW,Sl Rnd Hd, #8 - 32 x 3/8"

- attaching, anchor spring support

2шт.

33

121841

LOCK WASHER,#8

WASHER, LOCK, , Attaching screw, spring support #8

2шт.

34

1847289

SUPPORT - anchor spring, distributor cap

1шт.

35

1889999

SUPPORT - locator, distributor spring cover

1шт.

36

81912

WASHER - spacer, drive shaft

1шт.

37

810074

WASHER - shim (.005")

1шт.

810078

WASHER - shim (.010")

1шт.

38

1908702

HYDRAULIC SYSTEM

GEAR - drive

1шт.

39

1862218

PIN - attaching, drive gear

1шт.

1909003

PISTON ASSY +0.4

BUSHING - bearing, distributor housing (Not shown)

1шт.
