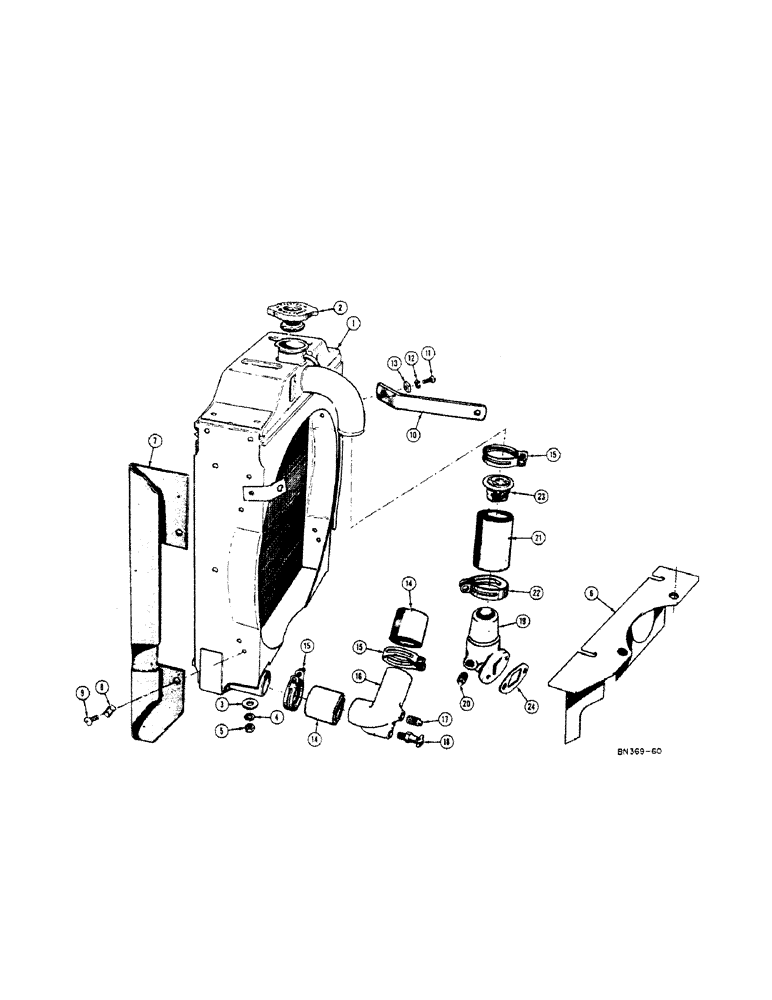

Запчасти Case 320B (026[A]) - RADIATOR AND CONNECTIONS - GAS

1

G45134

RADIATOR - (Model 420B up to serial #6120001)

1шт.

G45180

RADIATOR - (Model 420B from serial #6120001)

1шт.

G45760

RADIATOR - (Model 420BD)

1шт.

2

G45176

CAP

- radiator (Up to serial #6120001)

1шт.

G45179

CAP

- radiator (From serial #6120001)

1шт.

3

95-6

WASHER,3/8"

- plain (3/8)

2шт.

4

92-6

LOCK WASHER,3/8"

WASHER - med. sect. lock, 3/8"

2шт.

5

25-106

NUT,3/8"-16, G5

- hex. (3/8-16 NC)

2шт.

6

G14466

BRACKET - mounting, Serial Range: radiator-housing

1шт.

7

G17108

BAFFLE - circulation, R.H.

1шт.

G17111

BAFFLE - circulation, L.H.

1шт.

8

131-110

NUT - speed, (1/4) Tinn, 1/4"-20

4шт.

9

75-412

SCREW,Rd, 1/4" x 3/4"

- rd. hd. mach. (1/4-20 NC x 3/4)

4шт.

10

G10838

BRACE - radiator to engine head

2шт.

11

75-410

SCREW,Rd, 1/4" - 20 x 5/8"

- rd. hd. mach. (1/4-20 NC x 5/8)

2шт.

12

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

13

25-104

NUT,1/4"-20, G5

2шт.

14

VT4948

X

HOSE - lower elbow (1-3/4" I.D. x 2-1/8" O.D. x 2")

2шт.

15

214-26

CLAMP

- hose

5шт.

16

G11088

ELBOW - lower, Includes: Ref. 17

1шт.

17

221-3

DRAIN PLUG,Sq Hd, 3/8"-18 NPTF

PLUG - pipe, 3/8 NPT

1шт.

18

VT2784

X

VALVE - drain, lower elbow

1шт.

19

G11087

ELBOW - upper, Includes: Ref. 20

1шт.

20

221-3

DRAIN PLUG,Sq Hd, 3/8"-18 NPTF

PLUG - pipe, 3/8 NPT

1шт.

21

G47040

RADIATOR HOSE,1.75" ID x 3.88"

Upper, Elbow 1.75" ID x 3.88"

1шт.

22

214-27

X

CLAMP - hose

1шт.

23

G10235

THERMOSTAT

- (148 degree to 153 degree F.)

1шт.

24

VT3228

X

GASKET - upper elbow

1шт.
