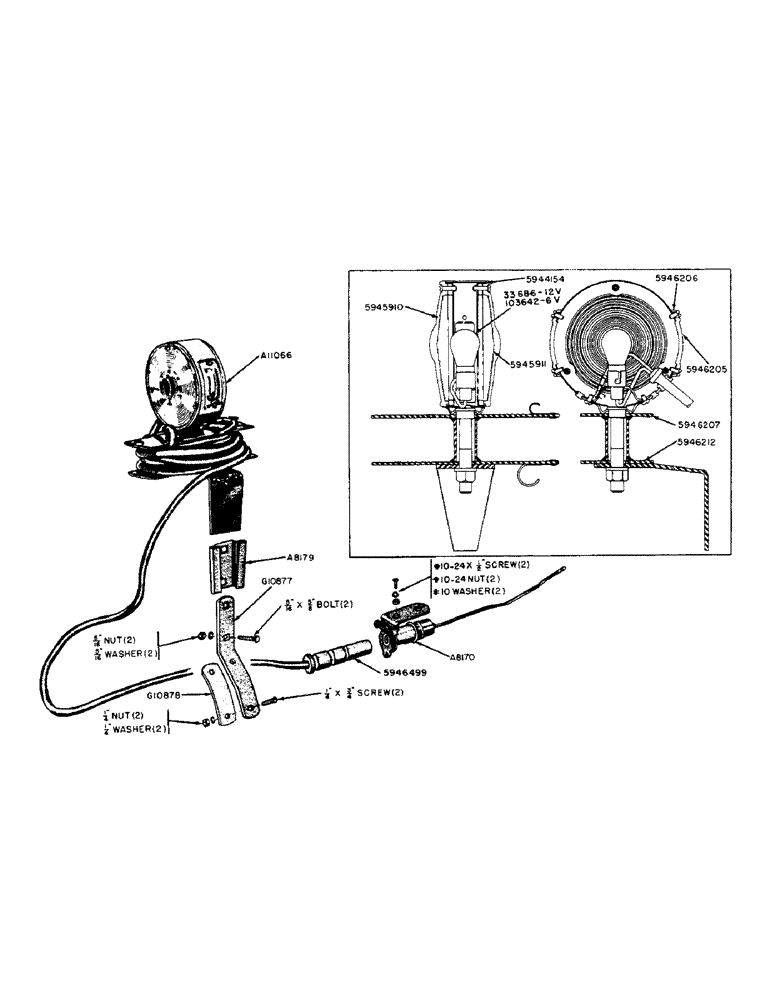

Запчасти Case 320 (117) - WARNING LAMP, EXTRA, PARTS FOR WARNING LAMP (09) - CHASSIS/ATTACHMENTS

A8170

SOCKET

- electrical outlet

1шт.

NSS

NOT SOLD SEPARAT

#10 - 24 x 1/2" rd. hd. mach. screw UNC w/hex. nut and lockwasher

2шт.

A8179

SOCKET

- warning lamp bracket

1шт.

A11066M

WARNING LAMP ATTACHMENT (Mchy. item)

1шт.

G10877

SUPPORT - warning lamp

1шт.

NSS

NOT SOLD SEPARAT

1/4" x 3/4" rd. hd. mach. screw w/hex. nut and lockwasher

2шт.

G10878

REINFORCEMENT - socket support

1шт.

103642

GLAND,#1129, Type C-6, 6V

BULB - 21 CP, 6 volt (Mfrs. no. 1129), parts for warning lamps

1шт.

33686

BULB

- 21 CP, 12 volt (Mfrs. no. 1141), parts for warning lamps

1шт.

5944154

GASKET - lens, parts for warning lamps

2шт.

5945910

LENS - amber, parts for warning lamps

1шт.

NSS

NOT SOLD SEPARAT

#6 - 32 x 1/2" rd. hd. slotted screw, parts for warning lamps

3шт.

5945911

LENS - red, parts for warning lamps

1шт.

NSS

NOT SOLD SEPARAT

#6 - 32 x 1/2" rd. hd. slotted screw, parts for warning lamps

3шт.

5946204

PLUG ASSEMBLY, parts for warning lamps

1шт.

5946205

LENS - outlook, parts for warning lamps

2шт.

NSS

NOT SOLD SEPARAT

#6 - 20 x 5/16" pan hd. screw, parts for warning lamps

4шт.

5946206

GASKET - outlook lens, parts for warning lamps

2шт.

5946207

SPOOL ASSEMBLY, parts for warning lamps

1шт.

NSS

NOT SOLD SEPARAT

7/16" hex. nut NC and lockwasher, parts for warning lamps

1шт.

5946212

BRACKET - mounting, parts for warning lamps

1шт.
