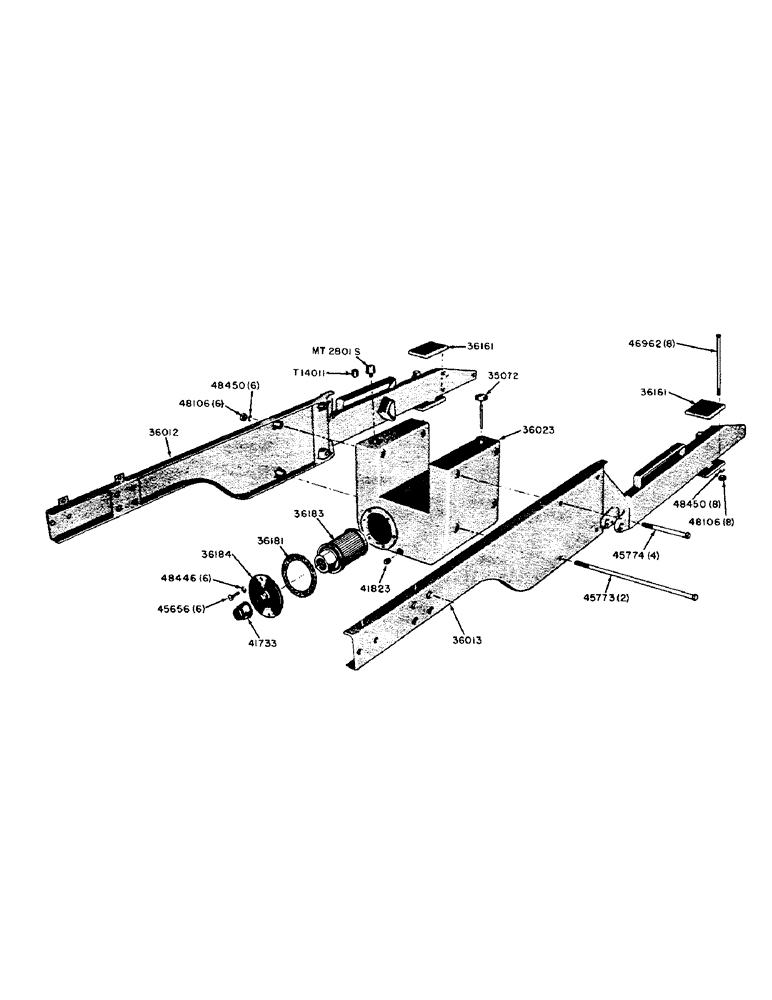

Запчасти Case 320 (116) - SUB FRAMES AND HYDRAULIC TANK (09) - CHASSIS/ATTACHMENTS

35072

CAP - filler, w/dipstick assembly

1шт.

36012

PIN

FRAME - sub, RH

1шт.

36013

PIN

FRAME - sub, LH

1шт.

36023

AXLE-SHAFT, ARTICULA

TANK - hydraulic, main

1шт.

36161

STRAP - hanger, sub frames to rear axle

2шт.

36181

GASKET

GASKET - cap and nipple assembly

1шт.

36183

SEALING RING COLLAR

FILTER - inside hydraulic tank

1шт.

36184

SCREW

CAP - front, hydraulic tank, w/nipple

1шт.

41733

X

BUSHING - pipe reducer

1шт.

41823

PLUG - pipe, hydraulic tank (1/2" P.T. ext. hd.)

1шт.

45656

X

CAP SCREW - cap and nipple to tank (3/8" x 1" N.F. hex. hd.)

6шт.

NSS

NOT SOLD SEPARAT

3/8" lockwasher

6шт.

45773

PRESSURE PIPE

CAP SCREW - hydraulic tank to sub frames (5/8" x 24-1/2" N.F. hex. hd.)

2шт.

NSS

NOT SOLD SEPARAT

5/8" N.F. hex. nut and lockwasher

2шт.

45774

CAP SCREW - hydraulic tank to sub frames (5/8" x 7-3/4" N.F. hex. hd.)

4шт.

NSS

NOT SOLD SEPARAT

5/8" N.F. hex. nut and lockwasher

4шт.

46962

BUSHING,2" ID x 2.13" OD x 1.25" L

CAP SCREW - sub frame to hanger (5/8" x 13-1/4" N.F. hex. hd.)

8шт.

NSS

NOT SOLD SEPARAT

5/8" N.F. hex. nut and lockwasher

8шт.

48106

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

NUT - hex. (5/8" N.F.)

14шт.

80680

LOCK WASHER,3/8 0.381 CST ZND

- for cap to tank screw 3/8"

6шт.

492-11062

BEARING WASHER,5/8"

LOCKWASHER (5/8")

14шт.

T14011

ELEMENT

- breather

1шт.

MT2801S

BREATHER - filter, hydraulic tank

1шт.
