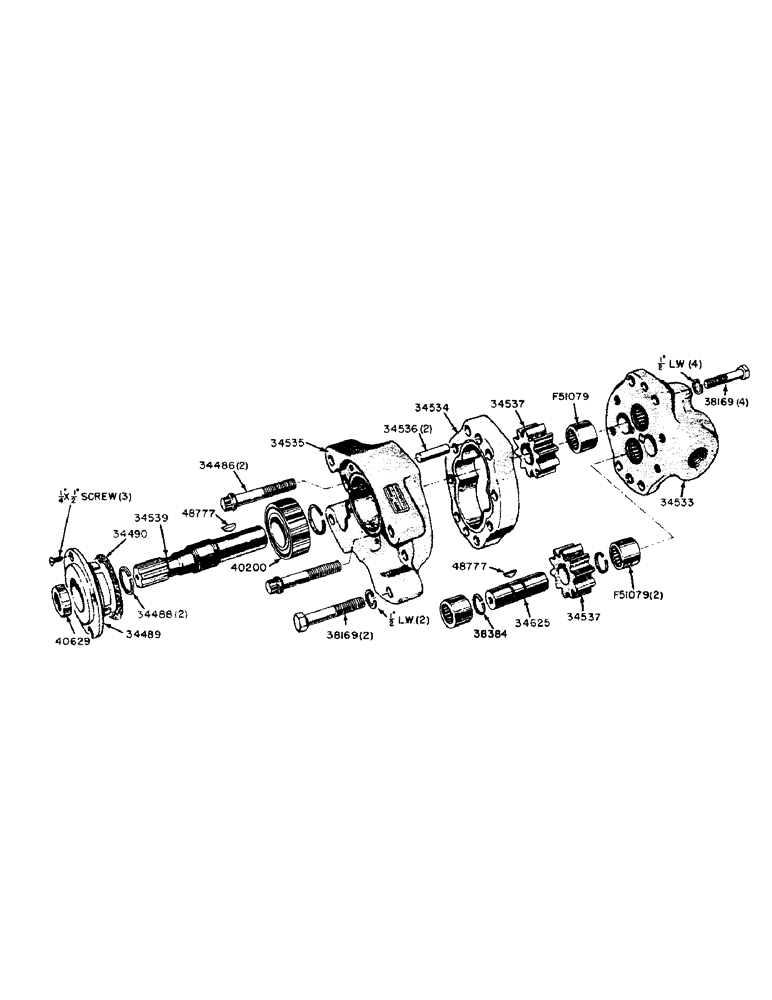

Запчасти Case 320 (114) - PARTS FOR 31614 HYDRAULIC PUMP (09) - CHASSIS/ATTACHMENTS

27857R1

SCREW,12 Pt Flg, 1/2" - 13 x 2 3/4"

- bore, pump body

2шт.

34488

RING, SNAP

SNAP RING - ball bearing to drive shaft

2шт.

34489

PLATE - pilot (Includes 40642 oil seal and 34490 gasket)

1шт.

NSS

NOT SOLD SEPARAT

1/4" x 1/2" flat hd. mach. screw (73-48) (46950)

3шт.

34490

SPRING

GASKET - pilot plate

1шт.

34533

COVER - pump (Includes 2-F51079 needle bearings)

1шт.

34534

CAM

PLATE - gear

1шт.

34535

X

BODY - pump (Includes F41079 needle bearing)

1шт.

34536

PIN - dowel

2шт.

34537

X

GEAR - pump drive and idler

2шт.

NLS

NO LONGER SERVICED

SHAFT - pump drive

1шт.

34625

GUARD

SHAFT - pump idler

1шт.

38169

X

CAP SCREW - cover to body (1/2" x 2-5/8" NC hex. hd.)

6шт.

NSS

NOT SOLD SEPARAT

1/2" lockwasher (92-8) (48448)

6шт.

38384

SNAP RING - idler gear

2шт.

40200

BEARING ASSY,1.1811" ID x 2.4409" OD x 0.9375"

- ball, drive shaft (ND #5206)

1шт.

D31848

OIL SEAL

OIL SEAL - drive shaft

1шт.

48777

X

KEY (Woodruff) drive gear and idler gear

2шт.

F51079

NEEDLE BEARING

BEARING - needle, drive shaft and idler shaft (Torrington #H1616-OH)

3шт.
