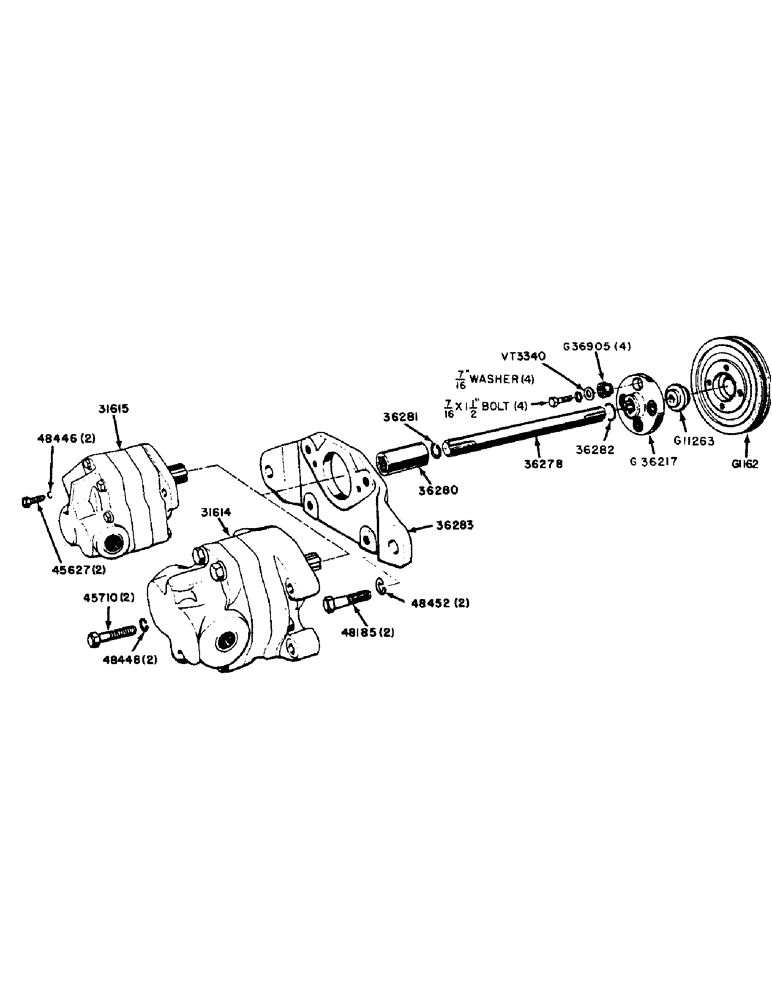

Запчасти Case 320 (113) - FRONT HYDRAULIC PUMP AND COUPLING (09) - CHASSIS/ATTACHMENTS

31614

PUMP - hydraulic, loader and backhoe combination

1шт.

31615

CAP

PUMP - hydraulic, loader

1шт.

NLS

NO LONGER SERVICED

- pump drive

1шт.

NLS

NO LONGER SERVICED

- drive shaft to pump shaft

1шт.

36281

X

SNAP RING -, Serial Range: coupling-shaft

1шт.

25121

SNAP RING,#100, Ext

SNAP RING - drive shaft to flex coupling

1шт.

36283

BRACKET - pump mounting

1шт.

45185

PIN

CAP SCREW - mounting bracket to steering support (3/4" x 2" N.C. hex. hd.)

2шт.

NSS

NOT SOLD SEPARAT

3/4" lockwasher

2шт.

45657

CAP SCREW - 31615 pump to bracket (3/8" x 1-1/4" N.F. hex. hd.)

2шт.

NSS

NOT SOLD SEPARAT

3/8" lockwasher

2шт.

45710

X

CAP SCREW - 31614 pump to bracket (1/2" x 2" N.F. hex. hd.)

4шт.

NSS

NOT SOLD SEPARAT

1/2" lockwasher

4шт.

80680

LOCK WASHER,3/8 0.381 CST ZND

LOCKWASHER, - for 45657 screw 3/8"

2шт.

48448

X

LOCKWASHER - for 45710 cap screw (1/2")

4шт.

48452

X

LOCKWASHER - mounting bracket screw (3/4")

2шт.

G1162

X

PULLEY - fan drive

1шт.

G11263

NUT

- crankshaft pulley

1шт.

G36217

HUB ASSY.

COUPLING - flex, fan drive pulley to pump drive shaft (Includes 4-G36905 block and bushing assemblies) 7/16" x 1-1/2" N.C. hex. bolt w/lockwasher

1шт.

G36905

BLOCK

AND BUSHING - flax coupling

1шт.

VT3340

X

WASHER - flex coupling bolt (3/4" O.D. x 29/64" I.D. x #16 Ga.)

4шт.
