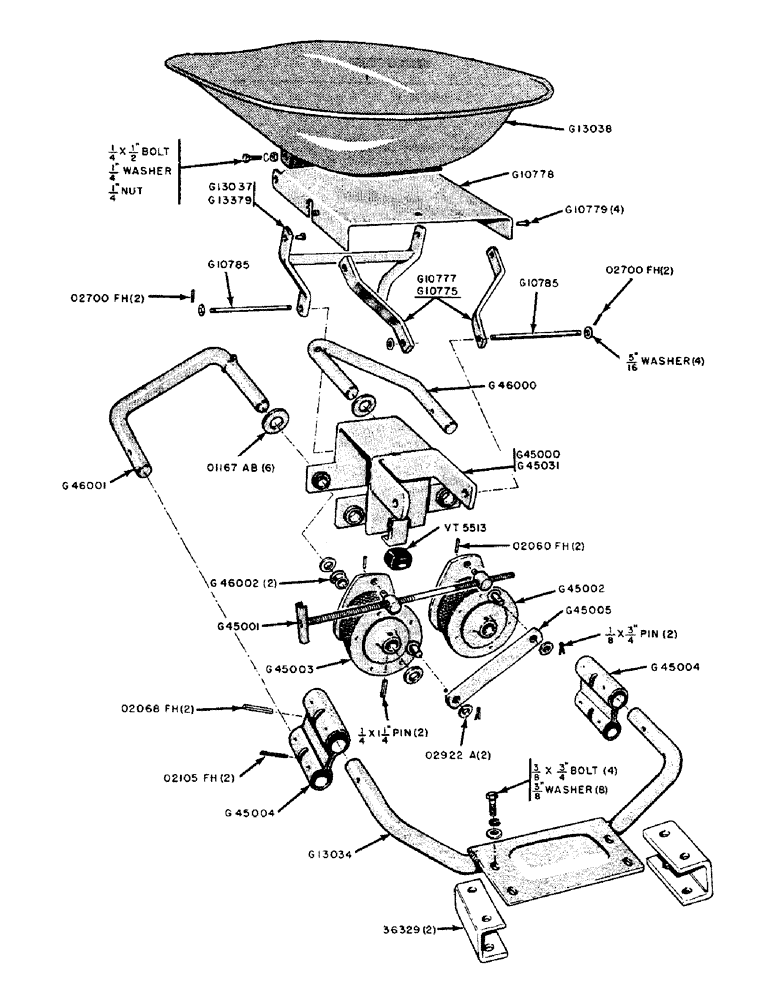

Запчасти Case 320 (110) - EASY RIDE SEAT (09) - CHASSIS/ATTACHMENTS

36329

BRACKET - seat mounting, R.H. and L.H.

2шт.

NSS

NOT SOLD SEPARAT

3/8" x 3/4" N.C. hex. hd. bolt w/lockwasher

4шт.

G10775

ARM

- rear pivot, mounting channel

2шт.

G10778

CHANNEL

- seat mounting

1шт.

NSS

NOT SOLD SEPARAT

1/4" x 1/2" hex. hd. bolt, NF w/hex. nut and lockwasher

1шт.

G10779

RIVET

- pivot arm, seat mounting channel

4шт.

G10785

X

SHAFT - pivot

2шт.

NSS

NOT SOLD SEPARAT

5/16" plain washer

4шт.

G13034

SUPPORT - seat

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 1-1/4" hex. hd. bolt, NF w/hex. nut and lockwasher

4шт.

NSS

NOT SOLD SEPARAT

3/8" plain washer

8шт.

G13038

SEAT - includes guide and lock assembly

1шт.

G13379

ARM - front pivot, mounting channel

1шт.

G45001

STUD

- adjusting

1шт.

G45002

SPRING SEAT

RUBBER SPRING ASSEMBLY, RH

1шт.

NSS

NOT SOLD SEPARAT

1/4" x 1-1/4" groove pin - Type A

1шт.

G45003

SPRING SEAT

RUBBER SPRING ASSEMBLY, LH

1шт.

NSS

NOT SOLD SEPARAT

1/4" x 1-1/4" groove pin - Type A

1шт.

G45004

LEVER

- short suspension

2шт.

G45005

LINK - stabilizing

1шт.

NSS

NOT SOLD SEPARAT

1/8" x 3/4" cotter pin

2шт.

G45031

BRACKET - support assembly

1шт.

G46000

SHAFT - spring, RH

1шт.

G46001

SHAFT - spring, LH

1шт.

G46002

FLANGED BEARING

BEARING - flange

2шт.

O2922A

X

WASHER - stabilizing link (1" O.D. x 17/32" I.D. #14 Ga.)

4шт.

O1167AB

X

WASHER - spring shafts (1-1/4" O.D. x 49/64" I.D. #14 Ga.)

6шт.

O2060FH

X

ROLL PIN (3/8" x 3/4") for adjuster stud

2шт.

O2068FH

X

ROLL PIN (1/4" x 1-1/4") for spring shafts

2шт.

O2105FH

X

ROLL PIN (5/16" x 1-1/4") for G13034 support

2шт.

O2700FH

X

ROLL PIN (3/32" x 5/8") pivot shafts

4шт.

VT5017

X

CUSHION - seat (Mchy. item)

1шт.

VT5513

X

BUMPER - rubber

1шт.
