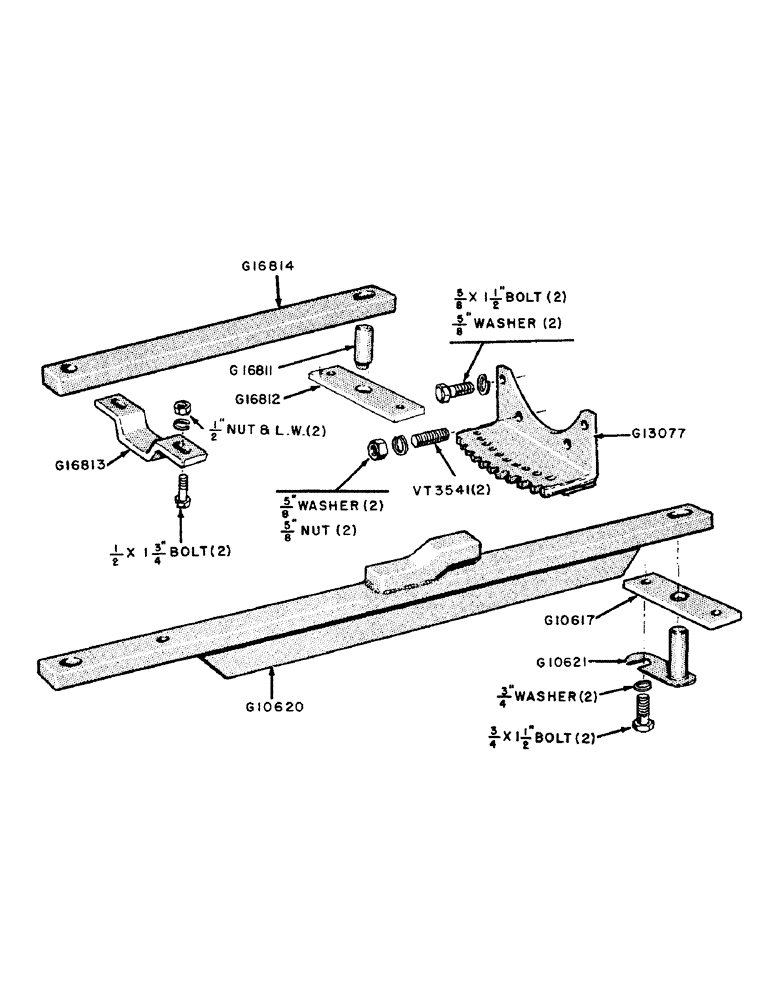

Запчасти Case 320 (106) - DRAWBAR (09) - CHASSIS/ATTACHMENTS

G10617

SUPPORT

- pin

1шт.

NSS

NOT SOLD SEPARAT

3/4" x 1-1/2" NC hex. hd. bolt w/lockwasher

2шт.

G10620

DRAWBAR ASSEMBLY (See G16814)

1шт.

G10621

DRAWBAR PIN AND LATCH

1шт.

G13077

SUPPORT - drawbar

1шт.

NSS

NOT SOLD SEPARAT

5/8" x 1-1/2" NC hex. hd. bolt and lockwasher

2шт.

G16811

PIN - short drawbar

1шт.

G16812

SUPPORT - front, short drawbar

1шт.

NSS

NOT SOLD SEPARAT

3/4" x 1-1/2" NC hex. hd. bolt

2шт.

G16813

SUPPORT - lower rear, short drawbar

1шт.

NSS

NOT SOLD SEPARAT

1/2" x 1-3/4" NF hex. hd. bolt w/hex. nut, lockwasher and plain washer

2шт.

G16814

DRAWBAR - short

1шт.

VT3541

STUD - drawbar support to transmission case (5/8" x 2")

2шт.

NSS

NOT SOLD SEPARAT

5/8" hex. nut, NF and lockwasher

2шт.
