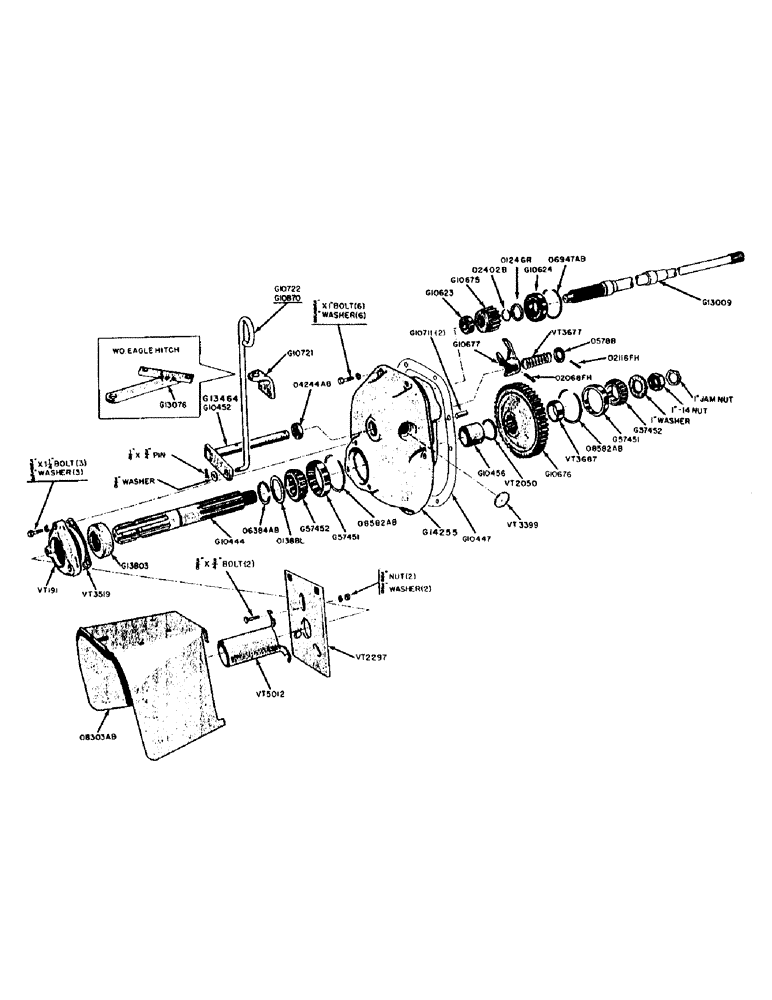

Запчасти Case 320 (104) - P.T.O. ASSEMBLY (09) - CHASSIS/ATTACHMENTS

G1054

X

HOUSING - P.T.O. (Use G14255)

1шт.

G10444

X

SHAFT - P.T.O. driven

1шт.

NSS

NOT SOLD SEPARAT

1" - 14 hex. nut UNF

1шт.

NSS

NOT SOLD SEPARAT

1" plain washer SAE std

1шт.

G10447

GASKET

- P.T.O. housing to transmission case

1шт.

G10452

X

LEVER AND SHAFT - P.T.O. shift

1шт.

G10456

SPACER

- driven gear, rear

1шт.

G10623

BALL BEARING

BEARING - P.T.O. drive shaft, rear (N.D. 7503)

1шт.

G10624

BALL BEARING

BEARING - P.T.O drive shaft, front (N.D. 77506)

1шт.

G10675

GEAR

- P.T.O. drive (14T)

1шт.

G10676

GEAR

- P.T.O. driven (46T)

1шт.

G10677

X

FORK - shift, drive gear

1шт.

G10711

PIN

- dowel, P.T.O., Serial Range: housing-transmission

2шт.

G10721

SUPPORT

- control rod

1шт.

G10870

ROD - P. T. O. clutch control

1шт.

NSS

NOT SOLD SEPARAT

1/8" x 3/4" cotter pin

1шт.

NSS

NOT SOLD SEPARAT

3/8" washer, plain

1шт.

G13009

SHAFT

- P.T.O. drive

1шт.

G13076

SUPPORT

- control rod, P.T.O. (w/o E.H.)

1шт.

G13803

OIL SEAL

- P.T.O. rear

1шт.

G14255

HOUSING - P.T.O. (Includes 2-G57451 cups and 2-O8582AB snap rings)

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 1" NC hex. hd. bolt w/lockwasher

6шт.

G49002

NUT

- driven shaft (1" Palnut)

1шт.

G57451

BEARING, CUP

CUP - bearing, driven shaft (Timken #LM48510)

2шт.

G57452

ROLLER BEARING

CONE - bearing, driven shaft (Timken #LM48548)

2шт.

O4244AB

OIL SEAL - shift shaft

1шт.

O6384AB

SNAP RING - driven shaft

1шт.

O6947AB

X

SNAP RING - drive shaft fron bearing retaining

1шт.

O8303AB

X

GUARD - universal joint

1шт.

O8582AB

X

SNAP RING - driven shaft bearing retainer

2шт.

O578B

X

WASHER - shifter shaft retainer

1шт.

O2402B

X

SNAP RING - drive shaft front bearing retaining

1шт.

O318BL

WASHER - driven shaft bearing retainer (Rear)

1шт.

O2068FH

X

ROLL PIN - shift fork (1/4" x 1-1/4")

1шт.

O2116FH

X

ROLL PIN - shift shaft retaining (3/16" x 1-1/4")

1шт.

VT191

X

RETAINER - rear oil seal

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 1-1/4" UNC hex. bolts and lockwashers

3шт.

VT2050

X

WASHER - spring tension

1шт.

VT2297

X

PLATE - guard mounting

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 3/4" UNC rd. hd. bolt w/hex. nut and lockwasher

2шт.

VT3399

PLUG - expansion (Welch)

1шт.

VT3519

X

GASKET - rear oil seal retainer

1шт.

VT3677

X

SPRING - shifter fork throwout

1шт.

VT3687

X

SPACER - driven shaft front gear

1шт.

VT5012

X

GUARD - P. T. O. driven shaft

1шт.
