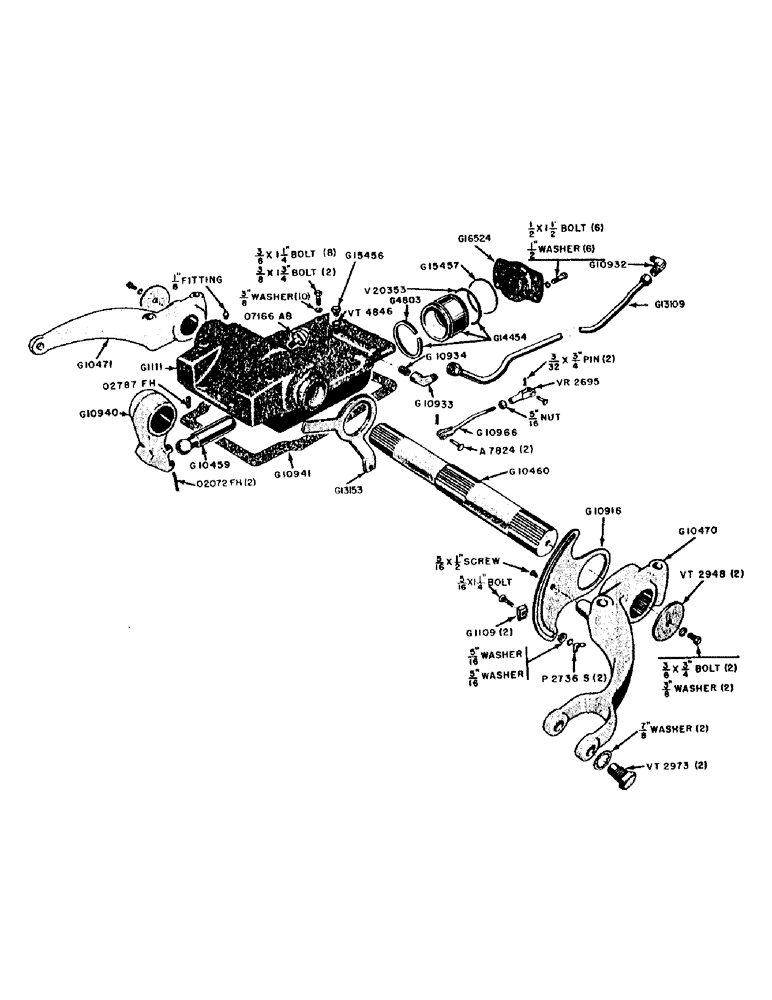

Запчасти Case 320 (096) - EAGLE HITCH ROCKSHAFT AND HOUSING (09) - CHASSIS/ATTACHMENTS

A7824

X

PIN - yoke

2шт.

NSS

NOT SOLD SEPARAT

3/32" x 3/4" cotter pin

2шт.

G1043

X

PISTON (Use G14454)

1шт.

G1109

STOP - quadrant lever

2шт.

G1111

HOUSING - rockshaft

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 1-1/4" hex. hd. bolt UNC w/lockwasher

8шт.

NSS

NOT SOLD SEPARAT

3/8" x 1-3/4" hex. hd. bolt UNC w/lockwasher

2шт.

NSS

NOT SOLD SEPARAT

3/8" x 4" hex. hd. bolt UNC w/lockwasher

2шт.

NSS

NOT SOLD SEPARAT

1/8" P.T. fitting, straight (Lincoln #5000)

2шт.

G1316

PISTON (Use G14454)

1шт.

G4803

RING

- piston (Steel)

1шт.

G10459

X

ROD - connecting, rockshaft piston

1шт.

G10460

ROCKSHAFT

- Eagle Hitch

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 3/4" hex. hd. bolt UNC w/lockwasher

2шт.

G10470

ARM - lift, E.H. (Right hand)

1шт.

G10471

ARM - lift, E.H. (Left hand)

1шт.

G10916

QUADRANT - control

1шт.

NSS

NOT SOLD SEPARAT

5/16" - 18 x 1/2" flat hd. mach. screw (Spin-lock)

1шт.

G10932

ELBOW

- tube to interlock, 90 degree brass (3/8" male P.T. x 3/4" UNF)

1шт.

G10933

ELBOW

- tube to housing 90 degree brass (3/8" female x 3/4" UNF)

1шт.

G10934

NIPPLE, LUBE

NIPPLE - pipe (3/8" P.T. close)

1шт.

G10940

ARM - rocker, rockshaft piston

1шт.

G10941

GASKET

- rockshaft, Serial Range: housing-transmission

1шт.

G10966

ROD - control w/yoke

1шт.

NSS

NOT SOLD SEPARAT

5/16" hex. jam nut UNF

1шт.

G13109

TUBE - interlock to E.H. housing w/union nuts 0.5" OD x 36.75" L

1шт.

G13153

QUADRANT - depth control

1шт.

G14454

X

PISTON KIT (Includes piston, 1 - G4803 ring and 1 - V20353 "O" ring)

1шт.

G15456

PLUG

- oil passage

1шт.

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

"O" RING - cylinder cap (5-3/4" dia.)

1шт.

G16524

CAP - rockshaft housing cylinder

1шт.

NSS

NOT SOLD SEPARAT

1/2" x 1-1/2" hex. hd. bolt NC with lockwasher

6шт.

O7166AB

X

BREATHER - rockshaft housing

1шт.

O2072FH

X

ROLLPIN - rocker arm (1/4" x 2")

2шт.

V20353

SCREW

"O" RING - rockshaft piston

2шт.

VR2695

X

YOKE - control rod

1шт.

VT2948

WASHER - retaining, lift arm

2шт.

VT2973

X

SCREW - pivot, lift arm trunnion

2шт.

NSS

NOT SOLD SEPARAT

7/8" lockwasher (Shakeproof I.T.)

2шт.

VT4846

X

GASKET - oil passage plug

1шт.

P2736S

NUT - wing (5/16" - 18 N.C.)

2шт.

NSS

NOT SOLD SEPARAT

5/16" x 1-1/4" carr. bolt w/lockwasher and plain washer

2шт.
