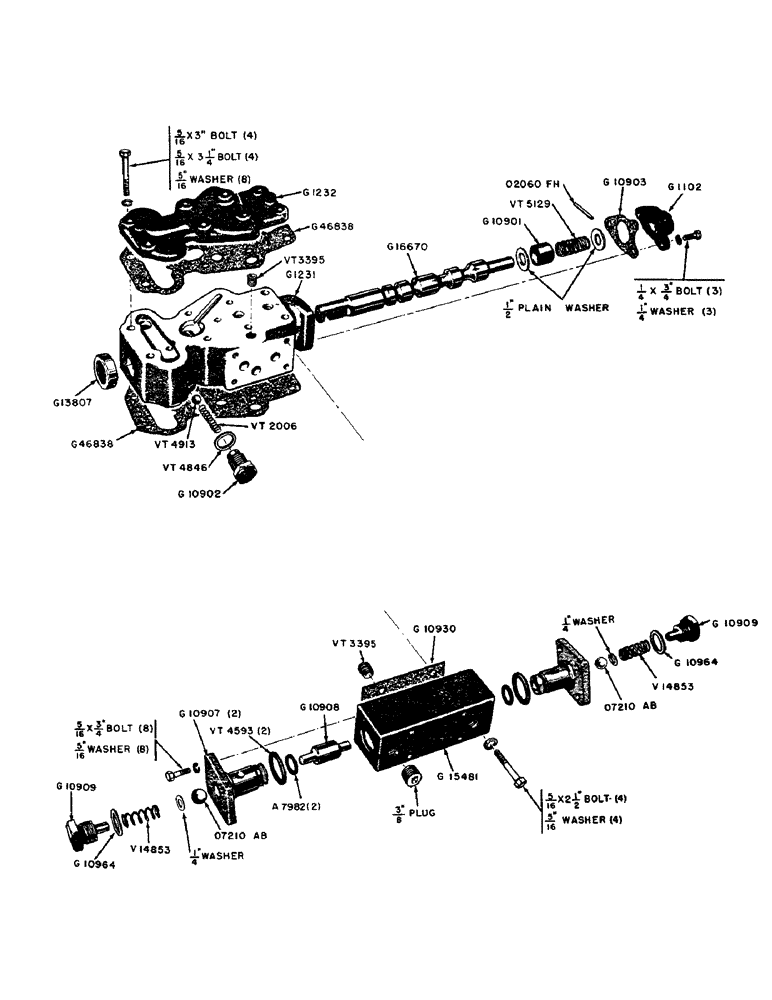

Запчасти Case 320 (094) - G13983 HYDRAULIC CONTROL VALVE PARTS FOR EAGLE HITCH, G13106 HYDRAULIC INTERLOCK PARTS (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
G1102
CAP - end, control valve
1шт.
NSS
NOT SOLD SEPARAT
1/4" x 3/4" hex. head bolt, UNC w/lockwasher
3шт.
G1231
BODY - control valve
1шт.
G1232
COVER - control valve body
1шт.
NSS
NOT SOLD SEPARAT
5/16" x 3-1/4" hex. hd. bolt UNC w/lockwasher
4шт.
NSS
NOT SOLD SEPARAT
5/16" x 3" hex. hd. bolt, UNC w/lockwasher
4шт.
G10901
SLEEVE
- valve spool stop
1шт.
G10902
PLUG - spool detent spring
1шт.
G10903
GASKET
- end cap
1шт.
G13807
OIL SEAL
OIL SEAL - valve spool
1шт.
G16670
SPOOL
- control valve
1шт.
NSS
NOT SOLD SEPARAT
1/2" plain washer
2шт.
G46838
GASKET
- control valve body to adapter base and control valve cover
2шт.
O2060FH
X
ROLL PIN - (1/8" x 3/4") use in G10900
1шт.
VT2006
X
SPRING - detent, spool
1шт.
VT4846
X
GASKET - detent plug
1шт.
VT4913
X
BALL - detent, valve spool (3/8" dia.)
1шт.
VT5129
X
SPRING - spool end
1шт.
A7982
O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro
"O" RING - end cover inner seal, G13106 hydraulic interlock parts
2шт.
G10907
COVER
- interlock end, G13106 hydraulic parts
2шт.
NSS
NOT SOLD SEPARAT
5/16" x 3/4" hex. hd. bolt, NC w/lockwasher, G13106 hydraulic interlock parts
8шт.
G10908
PLUNGER
- interlock valve, G13106 hydraulic parts
1шт.
G10909
PLUG
- body end, G13106 hydraulic interlock parts
2шт.
G10930
GASKET
- interlock to control body, G13106 hydraulic parts
1шт.
G10964
WASHER
GASKET - end plug, G13106 hydraulic interlock parts
4шт.
G13106
INTERLOCK - hydraulic, complete, G13106 parts
1шт.
NSS
NOT SOLD SEPARAT
3/8" ctsk. hd. pipe plug, G13106 hydraulic interlock parts
1шт.
NSS
NOT SOLD SEPARAT
5/16" x 2-1/2" hex. hd. bolt, NC w/lockwasher, G13106 hydraulic interlock parts
4шт.
G15481
BODY
- interlock, G13106 hydraulic parts
1шт.
O7210AB
X
BALL - interlock check valve (1/2" dia.), G13106 hydraulic parts
2шт.
V14853
X
SPRING - plunger, check valve ball, G13106 hydraulic interlock parts
2шт.
VT3395
X
PLUG - interlock (1/4" ctsk. hd.), G13106 hydraulic parts
1шт.
VT4593
X
"O" RING - outer seal, end cover (1/16" dia.), G13106 hydraulic interlock parts
2шт.
Выбрано товаров: 33
