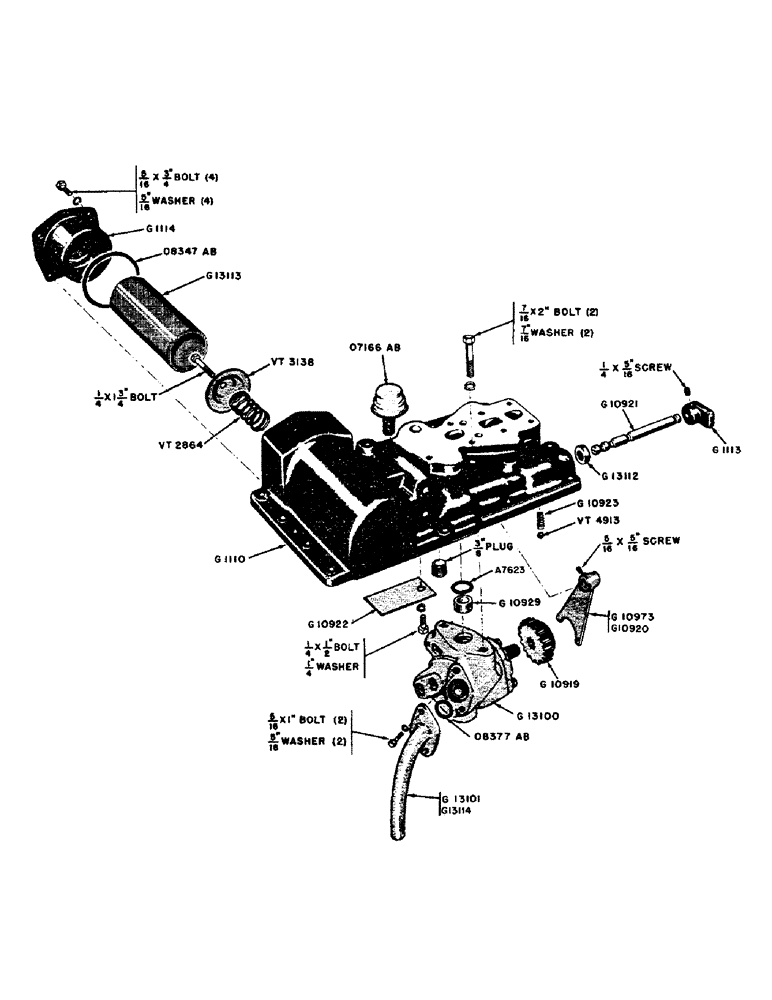

Запчасти Case 320 (092) - HYDRAULIC PUMP AND ADAPTER (08) - HYDRAULICS

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

"O" RING - pilot, dowel bushing

1шт.

G1110

HOUSING - hydraulic pump and adapter

1шт.

NSS

NOT SOLD SEPARAT

3/8" std. ctsk. hd. pipe plug

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 1" hex. hd. bolt, NC w/lockwasher

9шт.

NSS

NOT SOLD SEPARAT

3/8" x 1-3/4" hex. hd. bolt, NC w/lockwasher

2шт.

G1113

BUTTON - shift, hydraulic pump

1шт.

NSS

NOT SOLD SEPARAT

1/4" - 20 x 5/16" socket hd. set screw

1шт.

G1114

CAP - filter, adapter housing

1шт.

NSS

NOT SOLD SEPARAT

5/16" x 3/4" hex. hd. bolt, NC w/lockwasher

4шт.

G10919

GEAR - sliding, pump drive (18T)

1шт.

G10921

ROD - shift, hydraulic pump

1шт.

G10922

BAFFLE - filter, adapter housing

1шт.

NSS

NOT SOLD SEPARAT

1/4" x 1/2" hex. hd. bolt, NC w/lockwasher

1шт.

G10923

SPRING - detent ball, shift rod

1шт.

G10929

BUSHING

dowel, pump pilot

1шт.

G10973

FORK - shift, hydraulic pipe

1шт.

NSS

NOT SOLD SEPARAT

5/16" x 5/16" socket hd. set screw, NC

1шт.

G13100

X

PUMP - hydraulic, complete

1шт.

NSS

NOT SOLD SEPARAT

7/16" x 2" hex. hd. bolt, NC w/lockwasher

2шт.

G13101

TUBE - pump suction 3.25" L

1шт.

NSS

NOT SOLD SEPARAT

5/16" x 1" hex. hd. bolt, NC w/lockwasher

2шт.

G13112

OIL SEAL

- pump shift rod

1шт.

G13113

ELEMENT,2.25" OD x 6" L

FILTER - hydraulic oil

1шт.

O7166AB

X

BREATHER - control housing

1шт.

O8347AB

X

"O" RING - filter cap seal

1шт.

O8377AB

X

"O" RING - suction pipe seal

1шт.

VT2864

SPRING

- retainer, oil filter element

1шт.

VT3138

X

CAP - retainer, filter element

1шт.

NSS

NOT SOLD SEPARAT

1/4" x 1-3/4" hex. hd. bolt, NC

1шт.

VT4913

X

BALL - detent, shift rod (3/8" dia.)

1шт.
