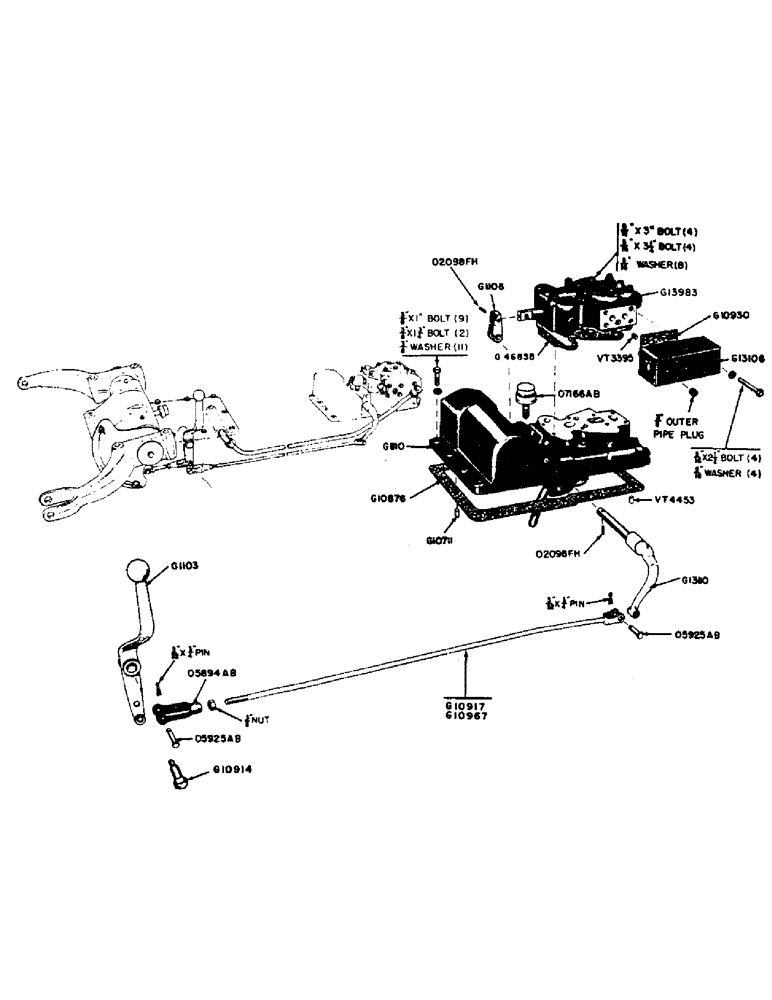

Запчасти Case 320 (091) - HYDRAULIC CONTROLS AND LEVER FOR EAGLE HITCH (08) - HYDRAULICS

G1103

LEVER

- hydraulic hand control

1шт.

G1108

ARM ASSY.

BELLCRANK - control valve crank

1шт.

G1110

HOUSING - hydraulic pump and adapter

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 1" hex. hd. bolt UNC

9шт.

NSS

NOT SOLD SEPARAT

3/8" x 1-3/4" hex. hd. bolt, UNC

2шт.

NSS

NOT SOLD SEPARAT

3/8" lockwasher

11шт.

G10711

PIN

- dowel (1/2" x 3/4") (Rear)

1шт.

G10876

GASKET

- adapter housing to torque tube

1шт.

G10914

BOLT - control lever pivot (1/2" x 2-1/2")

1шт.

G10930

GASKET

- interlock to control valve

1шт.

G10967

ROD - control (29-3/16" long)

1шт.

NSS

NOT SOLD SEPARAT

3/8" hex. nut, UNF

1шт.

G13106

HYDRAULIC INTERLOCK

1шт.

NSS

NOT SOLD SEPARAT

5/16" x 2-1/2" hex. hd. bolt, UNC w/lockwasher

4шт.

NSS

NOT SOLD SEPARAT

3/8" p.t. pipe plug ctsk. head

1шт.

G13110

CRANK

- valve control

1шт.

G13983

HYDRAULIC CONTROL VALVE (Includes VT4913 ball and VT2006 spring)

1шт.

NSS

NOT SOLD SEPARAT

5/16" x 3-1/4" hex. hd. bolt, UNC

4шт.

NSS

NOT SOLD SEPARAT

5/16" x 3" hex. hd. bolt, UNC

4шт.

NSS

NOT SOLD SEPARAT

5/16" lockwasher

8шт.

G46838

GASKET

- valve to adapter housing

1шт.

O5894AB

YOKE

CLEVIS - control rod

1шт.

O5925AB

X

PIN - clevis

2шт.

NSS

NOT SOLD SEPARAT

3/32" x 3/4" cotter pin

2шт.

O7166AB

X

BREATHER - adapter housing

1шт.

O2098FH

X

ROLL PIN - (1/4" x 1") bellcrank

2шт.

VT4453

X

PIN DOWEL, 3/8" x 3/4" (Front)

1шт.
