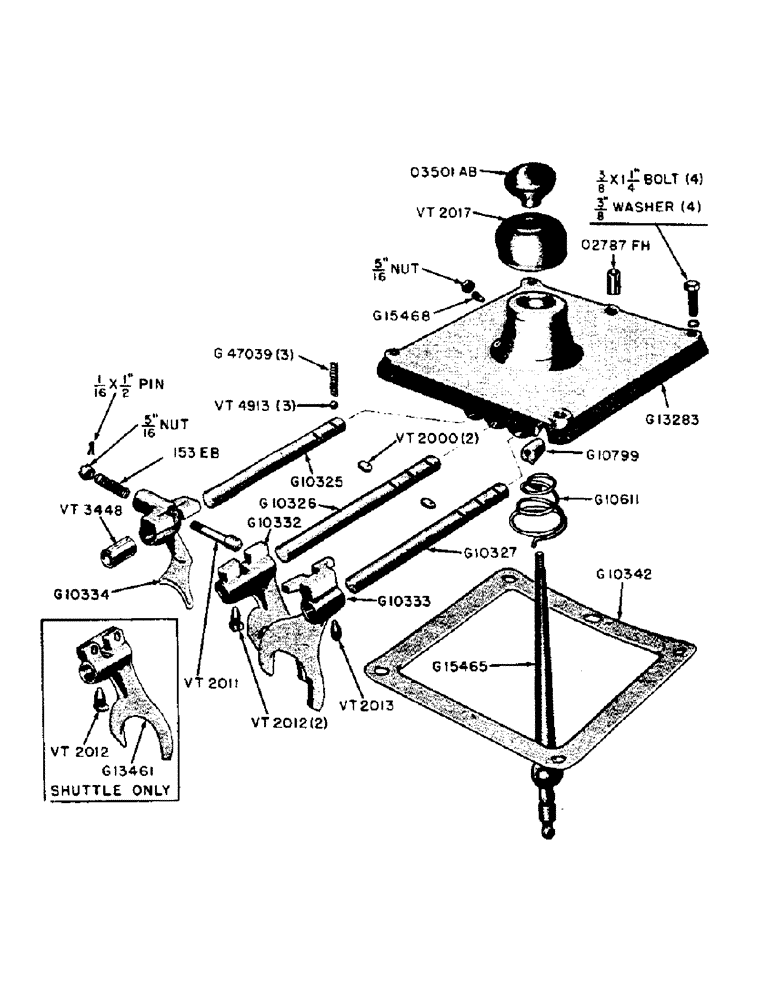

Запчасти Case 320 (067) - GEAR SHIFT COVER (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
G1026
COVER (Use G13283)
1шт.
G1222
COVER (Use G13283)
1шт.
G10325
RAIL - reverse shift (Not used w/shuttle)
1шт.
G10326
ROD
RAIL - shift (1st and 2nd speeds)
1шт.
G10327
ROD
RAIL - shift (3rd and 4th speeds)
1шт.
G10332
FORK
- shift (1st and 2nd speeds) see G13461
1шт.
G10333
X
FORK - shift (3rd and 4th speeds)
1шт.
G10334
FORK TEDDER
FORK - shift, reverse (Not used w/shuttle)
1шт.
G10342
GASKET
- cover
1шт.
G10611
SPRING
- support, gear shift lever
1шт.
G10799
SEAL
SEAL - rubber, speedometer cable
1шт.
G13283
COVER - gear shift control, includes G15468 screw w/jam nut
1шт.
NSS
NOT SOLD SEPARAT
3/8" x 1-1/4" hex. hd. bolt, NC w/lockwasher
4шт.
G13461
FORK
- shift (1st and 2nd speeds) w/shuttle transmission
1шт.
G15465
LEVER
- gear shift
1шт.
G15468
SET SCREW,5/16" - 18 x 3/4"
- retaining, gear shift lever
1шт.
NSS
NOT SOLD SEPARAT
5/16" hex. jam nut, NC
1шт.
G47039
SPRING
- mish lock
3шт.
O3501AB
X
KNOB - gear shift lever
1шт.
O2787FH
X
ROLL PIN - shift cover to transmission case (1/2" x 1")
1шт.
VT2000
X
PLUG - interlock
2шт.
VT2011
X
PLUNGER - reverse latch (Not used w/ shuttle)
1шт.
NSS
NOT SOLD SEPARAT
5/16" castellated hex. nut, NF
1шт.
NSS
NOT SOLD SEPARAT
1/16" x 1/2" cotter pin
1шт.
VT2012
X
SCREW - lock, shift fork (For G10332, G10334 and G13461)
2шт.
VT2013
X
SCREW - lock, for G10333 shift fork
1шт.
VT2017
X
COVER - dust, shift lever
1шт.
VT3448
SPACER
- reverse shift lever (Not used w/shuttle)
1шт.
VT4913
X
BALL - mesh lock (3/8" dia.)
3шт.
153EB
SPRING - plunger reverse latch (Not used w/shuttle)
1шт.
Выбрано товаров: 30
