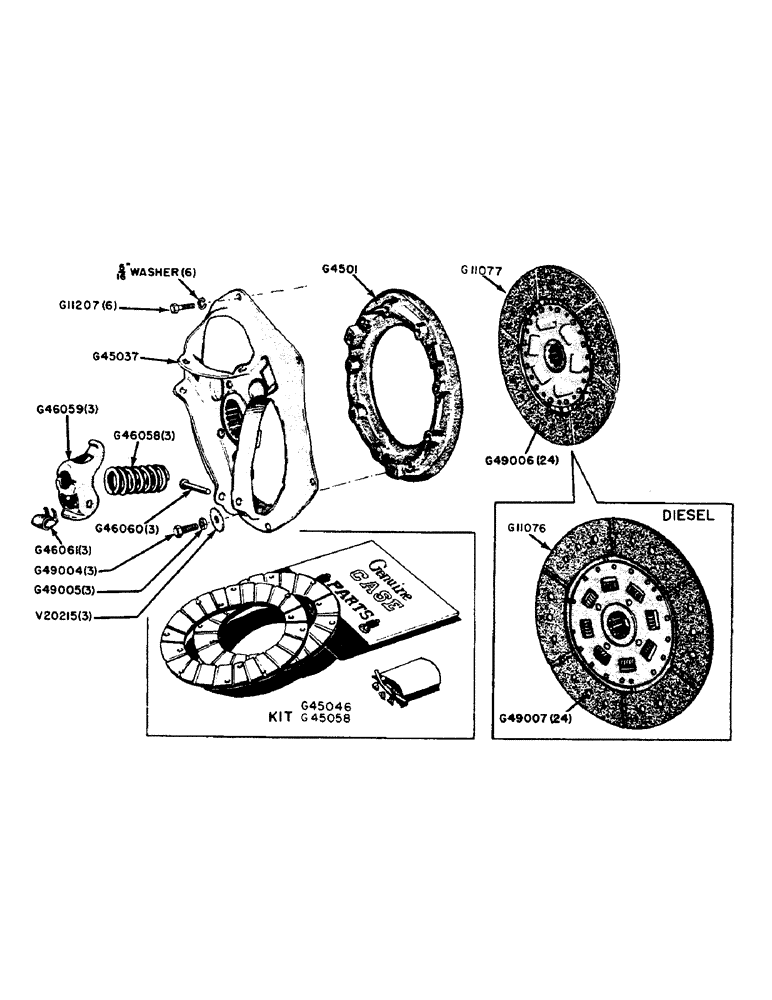

Запчасти Case 320 (058) - SINGLE PLATE CLUTCH (06) - POWER TRAIN

G4501

PLATE

- pressure

1шт.

Part of pressure plate complete assembly P/N G11002

1шт.

G11002

PLATE

- pressure, complete assembly, Includes: P/N's G4501, G45037, G45058, G45059, G46060, G46061, G49004, G49005, and V20215

1шт.

G11076

LARGE PLATE

PLATE - driving, with facings (Diesel engine)

1шт.

G11078

X

PLATE - driving, with facings (Gasoline engine)

1шт.

G11207

BOLT

-, Serial Range: clutch-flywheel

6шт.

NSS

NOT SOLD SEPARAT

5/16" lockwasher

6шт.

G45037

X

BRACKET AND HUB ASSEMBLY

1шт.

Part of pressure plate complete assembly P/N G11002

1шт.

G45046

KIT - clutch linings for G11076 plate (Includes linings and 30 G49007 rivets)

1шт.

G45058

FACING

KIT - clutch linings for G11078 plate (Includes linings and 30 G49006 rivets)

1шт.

G46058

SPRING

- lever

3шт.

Part of pressure plate complete assembly P/N G11002

1шт.

G46059

LEVER

- clutch

3шт.

Part of pressure plate complete assembly P/N G11002

1шт.

G46060

PIN

- pivot

3шт.

Part of pressure plate complete assembly P/N G11002

1шт.

G46061

CLIP

- clutch return

3шт.

Part of pressure plate complete assembly P/N G11002

1шт.

G49004

SCREW

- adjusting

3шт.

Part of pressure plate complete assembly P/N G11002

1шт.

G49005

NUT - jam, adjusting screw

3шт.

Part of pressure plate complete assembly P/N G11002

1шт.

G49006

RIVET - clutch lining (Gasoline engine)

24шт.

G49007

RIVET - clutch lining (Diesel engine)

24шт.

V20215

ADJUSTMENT ROD

WASHER - adjusting screw

3шт.

Part of pressure plate complete assembly P/N G11002

1шт.
