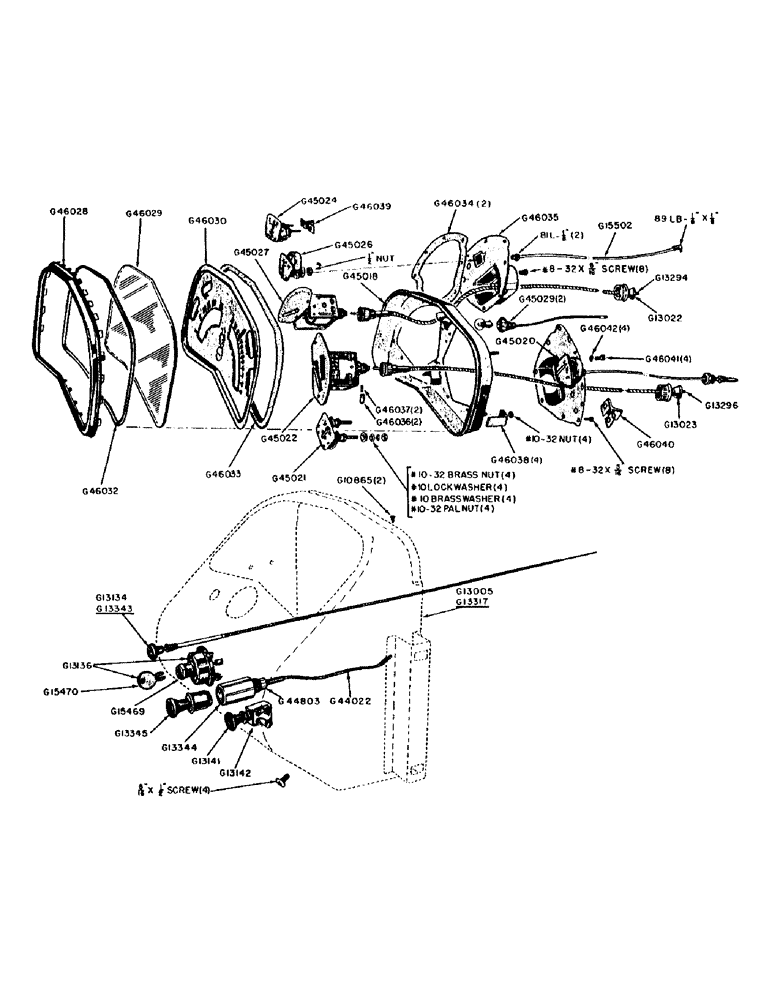

Запчасти Case 320 (056) - INSTRUMENT PANEL, 12 VOLT (04) - ELECTRICAL SYSTEMS

G10865

CUSHION - rubber button

2шт.

G10972

LINE

TUBE - oil pressure, engine to gage (Spark ignition engine)

1шт.

NSS

NOT SOLD SEPARAT

81L - 1/8" nut

1шт.

NSS

NOT SOLD SEPARAT

89L - 1/8" x 1/8" elbow, includes 81L - 1/8" nut

1шт.

G13005

PANEL - instrument (Gasoline engine)

1шт.

G13022

CABLE

HOUSING - speedometer drive cable (Includes G13294 cable)

1шт.

G13023

X

HOUSING - tachometer drive cable (Includes G13296 cable)

1шт.

G13134

ROD - choke

1шт.

G13136

IGNITION SWITCH

SWITCH - starting and ignition (Includes keys)

1шт.

NSS

NOT SOLD SEPARAT

#8 - 32 x 1/4" rd. hd. terminal screw w/Shakeproof lockwasher

2шт.

G13141

KNOB

- light switch

1шт.

G13142

IGNITION SWITCH

SWITCH - light (Includes knob)

1шт.

G13294

X

CABLE - speedometer drive (See G13022)

1шт.

G13296

X

CABLE - tachometer drive (See G13023)

1шт.

NSS

NOT SOLD SEPARAT

5/16" x 1/2" NC truss hd. mach screw (Cadmium plated)

4шт.

G13343

WIRE - engine shutoff (Diesel engine)

1шт.

G13344

SOCKET - cigarette lighter (Includes cable and fuse)

1шт.

G13345

UNIT

- pop-out, cigarette lighter

1шт.

G15469

NUT

- face, ignition and starting switch

1шт.

G15470

KEY

- ignition and starting switch

1шт.

G15502

TUBE - oil pressure, engine to gage (Diesel engine)

1шт.

NSS

NOT SOLD SEPARAT

81L - 1/8" nut

1шт.

NSS

NOT SOLD SEPARAT

89L - 1/8" x 1/8" elbow, includes 81L - 1/8" nut

1шт.

G44022

ELECTRICAL WIRE

CABLE - cigarette lighter socket

1шт.

G44803

FUSE - cigarette lighter socket

1шт.

G45018

CASE

- instrument cluster, includes studs

1шт.

NSS

NOT SOLD SEPARAT

#10-32 hex. nut (Keps)

4шт.

G45020

GAUGE

GAGE - heat indicator, includes case and 45-1/2" cable

1шт.

NSS

NOT SOLD SEPARAT

#8-32 x 5/16" indented hd. self-tapping screw

8шт.

G45021

AMMETER

ASSEMBLY

1шт.

NSS

NOT SOLD SEPARAT

#10-32 hex. nut (Brass) and plain washer brass

2шт.

NSS

NOT SOLD SEPARAT

#10-32 Pal nut and #10 lockwasher

2шт.

G45022

TACHOMETER

AND HOURMETER ASSEMBLY

1шт.

G45024

X

GAGE - fuel

1шт.

NSS

NOT SOLD SEPARAT

#10-32 hex. nut (Brass) and plain washer (Brass)

2шт.

NSS

NOT SOLD SEPARAT

#10-32 Pal nut and #10 lockwasher

2шт.

G45025

GAGE - oil pressure (Spark ignition engine)

1шт.

G45026

GAGE - oil pressure (Diesel engine)

1шт.

G45027

SPEEDOMETER

1шт.

G45029

LAMP SOCKET AND CABLE (For G 4-1/2 6-8 volt 2 CP bulb)

2шт.

G46028

RIM

- clamp, instrument panel glass

1шт.

G46029

GLASS

- instrument panel

1шт.

G46030

FACE - instrument panel

1шт.

G46032

GASKET,0.125" ID x 0.188" OD

GASKET - rubber tube, between glass and rim

1шт.

G46033

GASKET

- rubber channel, Serial Range: rim-case

1шт.

G46034

GASKET - cork, instrument case

2шт.

G46035

CASE - speedometer, fuel gage and oil gage

1шт.

NSS

NOT SOLD SEPARAT

#8-32 x 5/16" indented hd. self-tapping screw

8шт.

G46036

TUBE - oil wick retainer 0.1875" OD x 0.687" L

2шт.

G46037

OIL WICK - felt, speedometer and tachometer drives

2шт.

G46038

CLAMP - mounting, instrument cluster

4шт.

G46039

INSULATOR

- fuel gage posts

1шт.

G46040

INSULATOR - ammeter posts

1шт.

G46041

SCREW - retaining, speedometer and tachometer

4шт.

G46042

WASHER - rubber, retaining screw

4шт.
