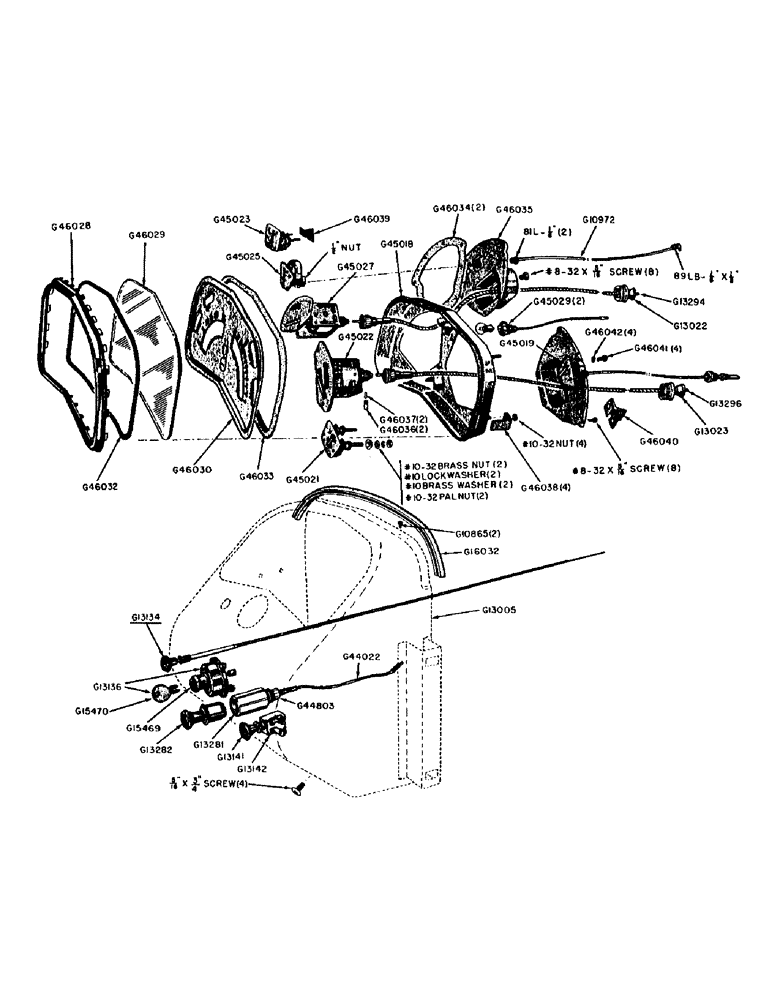

Запчасти Case 320 (054) - INSTRUMENT PANEL, 6 VOLT (04) - ELECTRICAL SYSTEMS

G10865

CUSION - rubber button

2шт.

G10972

LINE

TUBE - oil pressure, Serial Range: engine-gage

1шт.

NSS

NOT SOLD SEPARAT

81L - 1/8" nut

1шт.

NSS

NOT SOLD SEPARAT

89L - 1/8" x 1/8" elbow, includes 81L - 1/8" nut

1шт.

G13005

PANEL - instrument

1шт.

NSS

NOT SOLD SEPARAT

5/16" x 1/2" truss hd. mach. screw, NC (Cadmium plated)

4шт.

G13022

CABLE

HOUSING - includes speedometer drive cable

1шт.

G13023

X

HOUSING - includes tachometer drive cable

1шт.

G13134

ROD - choke

1шт.

NSS

NOT SOLD SEPARAT

3/8" hex. jam nut, NF

1шт.

G13136

IGNITION SWITCH

SWITCH - ignition and starting w/key (Distributor ignition) see G13138

1шт.

NSS

NOT SOLD SEPARAT

#8-32 x 1/4" rd. hd. terminal screw w/Shakproof lockwasher

2шт.

G13141

KNOB

- light switch

1шт.

G13142

IGNITION SWITCH

SWITCH - light, includes knob

1шт.

G13168

SWITCH

- ignition and starting w/key (For magneto ignition) see G13136

1шт.

G13281

SOCKET - cigarette lighter w/cable and fuse

1шт.

G13282

UNIT - pop-out, cigarette lighter

1шт.

G13294

X

CABLE - speedometer drive (See G13022)

1шт.

G13296

X

CABLE - tachometer drive (See G13023)

1шт.

G15469

NUT

- face, ignition and starting switch

1шт.

G15470

KEY

- ignition and starting switch

1шт.

G44022

ELECTRICAL WIRE

CABLE - cigarette lighter

1шт.

G44803

FUSE - cigarette lighter

1шт.

G45018

CASE

- instrument cluster, includes studs

1шт.

NSS

NOT SOLD SEPARAT

#10-32 hex. nut "Keps" (Includes lockwasher)

4шт.

G45019

GAUGE

GAGE - heat indicator, includes case and 49" cable

1шт.

NSS

NOT SOLD SEPARAT

#8-32 x 5/16" indented hd. self-tapping screw

8шт.

G45021

AMMETER

ASSEMBLY

1шт.

NSS

NOT SOLD SEPARAT

#10-32" hex. nut (Brass) and plain washer (Brass)

2шт.

NSS

NOT SOLD SEPARAT

#10-32 Palnut and #10 lockwasher

2шт.

G45022

TACHOMETER

AND HOUR METER ASSEMBLY

1шт.

G45023

GAGE - fuel

1шт.

NSS

NOT SOLD SEPARAT

#10-32 hex. nut (Brass) and plain washer (Brass)

2шт.

NSS

NOT SOLD SEPARAT

#10-32 Palnut and #10 lockwasher

2шт.

G45025

GAGE - oil pressure, includes 1/2" hex. jam nut

1шт.

G45027

SPEEDOMETER

ASSEMBLY

1шт.

G45029

LAMP SOCKET AND CABLE ASSEMBLY (For G 4-1/2 6-8 volt 2 CP bulb)

2шт.

G46028

RIM

- clamp, instrument panel glass

1шт.

G46029

GLASS

- instument panel

1шт.

G46030

FACE - instrument panel

1шт.

G46032

GASKET,0.125" ID x 0.188" OD

GASKET - rubber tube, between glass and rim

1шт.

G46033

GASKET

- rubber channel, Serial Range: rim-case

1шт.

G46034

GASKET - cork, instrument case

2шт.

G46035

CASE - speedometer, fuel gage and oil gage

1шт.

NSS

NOT SOLD SEPARAT

#8-32 x 5/16" indented hd. self-tapping screw

8шт.

G46036

TUBE - oil wick retainer 0.1875" OD x 0.687" L

2шт.

G46037

OIL WICK - felt, speedometer and tachometer drives

2шт.

G46038

CLAMP - mounting, instrument cluster

4шт.

G46039

INSULATOR

- fuel gage posts

1шт.

G46040

INSULATOR - ammeter posts

1шт.

G46041

SCREW - retaining, speedometer and tachometer

4шт.

G46042

WASHER - rubber, retaining screw

4шт.
