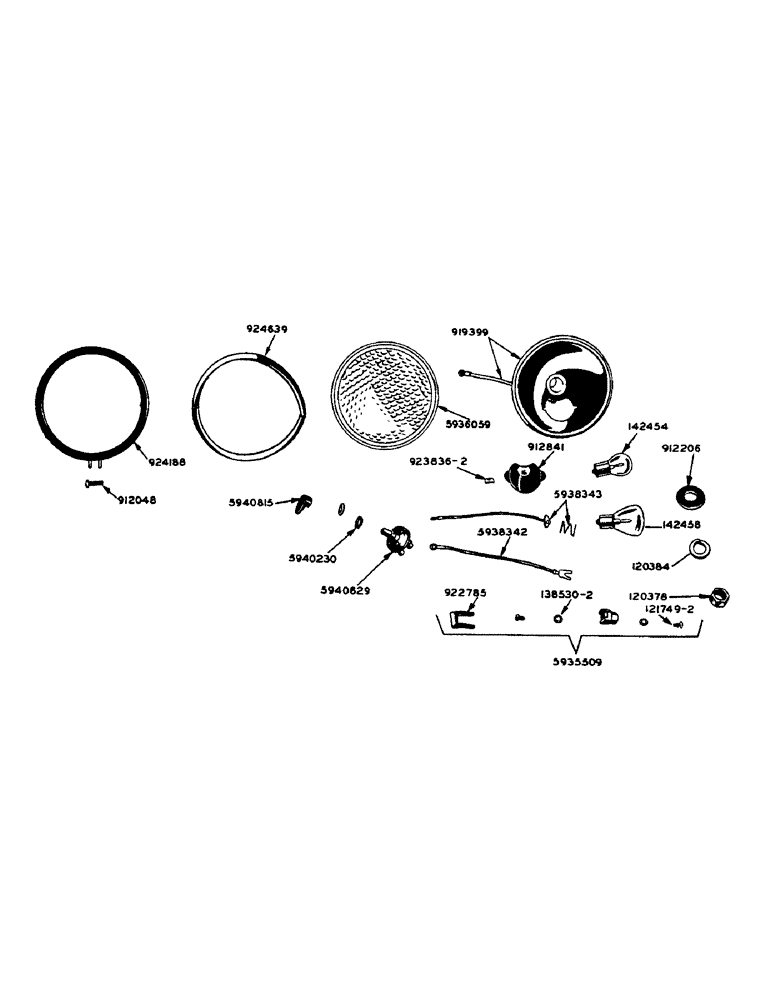

Запчасти Case 320 (053) - A11898 FLOOD AND TAIL LAMP (04) - ELECTRICAL SYSTEMS

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , Mounting bolt 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, , Mounting bolt 1/2"

1шт.

174-211

SCREW,Sl Rnd Hd, #8 - 32 x 5/16"

- terminal (No. 8 - 32 x 5/16" rd. hd. mach. screw)

2шт.

138530

LOCK WASHER,Int Tooth, #8

WASHER, LOCK, , Shakeproof for terminal screw Int Tooth, #8

1шт.

B50217

BULB

- 15 C.P. single contact 12 - 16V (Mfg. no. 93)

1шт.

NLS

NO LONGER SERVICED

BULB - 32 C.P. single contact 12 - 16V (Mfg. no. 32)

1шт.

912048

SCREW - moulding

1шт.

912206

WASHER - mounting plate bearing

1шт.

912841

LENS - red

1шт.

919399

REFLECTOR ASSEMBLY

1шт.

922785

SUPPORT

SPRING - terminal post

2шт.

922786

POST TERMINAL (Use 5935509)

1шт.

923836

GASKET

SPEEDNUT

1шт.

924188

MOULDING ASSEMBLY

1шт.

924639

GASKET - reflector seal

1шт.

5935509

TERMINAL PACKAGE (Consisting of 1 - 922785, 1 - 922786, 2 - 121749 and 2 - 138530)

1шт.

5936059

LENS

1шт.

5938342

WIRE ASSEMBLY - switch to terminal post

1шт.

5938343

WIRE ASSEMBLY - from, Serial Range: bulb-switch

1шт.

5940230

NUT - retaining, for switch

1шт.

5940629

SWITCH - w/lever

1шт.

5940815

LEVER - assembly

1шт.
