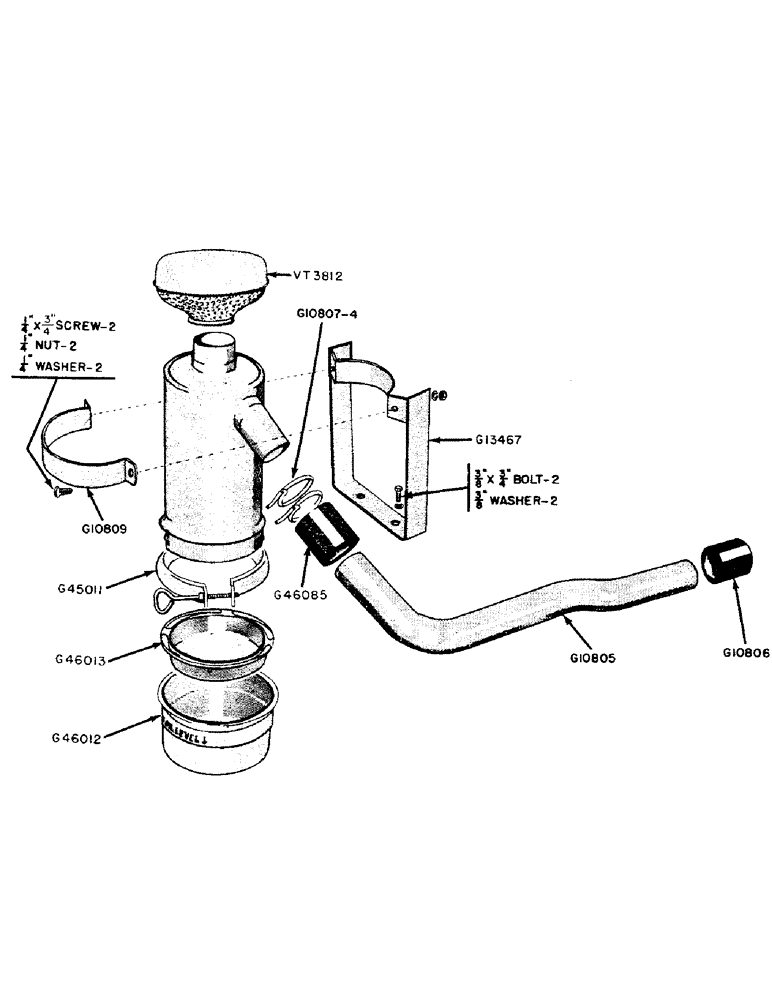

Запчасти Case 320 (016) - AIR CLEANER (02) - ENGINE

G10805

TUBE - intake 1.5" DIA

1шт.

G10806

HOSE - intake tube, Serial Range: G10805-carburetor

1шт.

G10807

CLAMP

- wire hose

4шт.

G10809

BAND - air cleaner mounting

1шт.

NSS

NOT SOLD SEPARAT

1/4" x 3/4" rd. hd. mach. screw UNC w/hex. nut and lockwasher

2шт.

G13048

AIR CLEANER COMPLETE

1шт.

G13467

SUPPORT - air cleaner

1шт.

NSS

NOT SOLD SEPARAT

3/8" x 3/4" hex. head bolt w/lockwasher

2шт.

G45011

CLAMP - oil cup retaining, air cleaner

1шт.

G46012

CUP - oil, outer, air cleaner

1шт.

G46013

CUP

- oil, inner, air cleaner

1шт.

G46085

HOSE - intake tube G10805 to air cleaner (1-1/2" I.D. x 6")

1шт.

VT3812

X

CAP - inlet

1шт.
