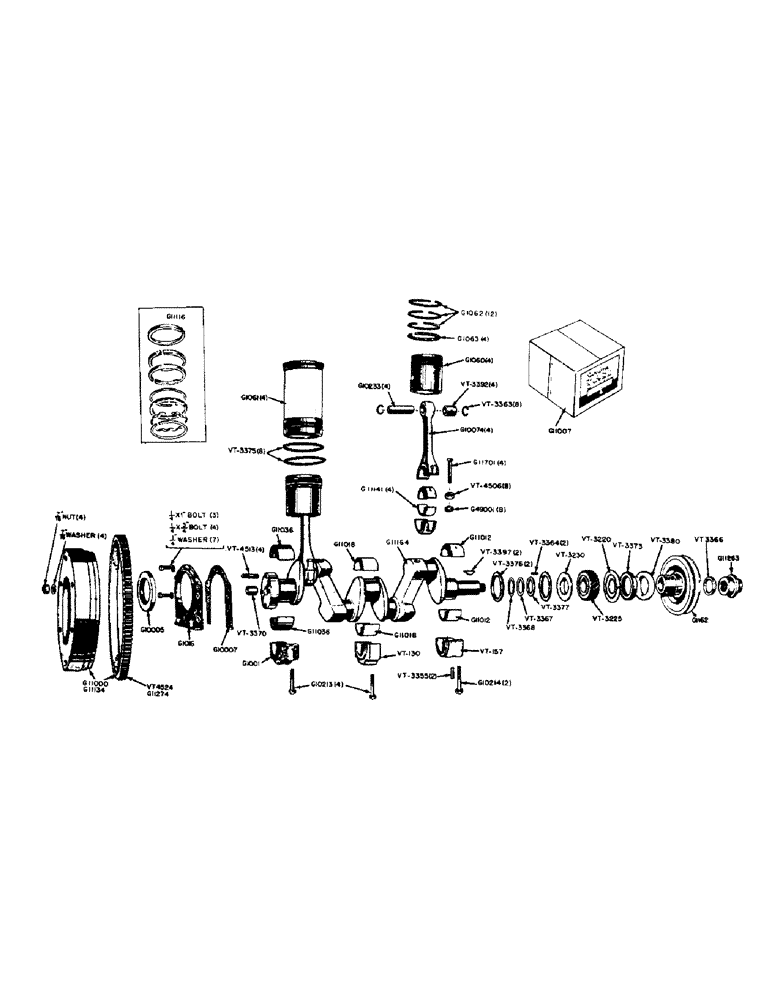

Запчасти Case 320 (010) - CRANKSHAFT, PISTONS AND CONNECTING RODS (02) - ENGINE

G1001

CAP - bearing, crankshaft rear

1шт.

G1016

RETAINER - rear oil seal, crankshaft

1шт.

NSS

NOT SOLD SEPARAT

1/4" x 1" hex. hd. bolt, NC w/lockwasher

3шт.

NSS

NOT SOLD SEPARAT

1/4" x 3/4" hex. hd. bolt, NC w/lockwasher

4шт.

G1065

FLYWHEEL (Use G11000 or G11134)

1шт.

G1162

X

PULLEY

1шт.

G10005

X

OIL SEAL - crankshaft rear

1шт.

G10007

GASKET

- rear oil seal retainer

1шт.

G10213

BOLT

- place, center and rear bearing caps (1/2" x 2-1/2" NC)

4шт.

G10214

BOLT - place, front bearing cap (1/2" x 3-1/8" NC)

2шт.

G11000

FLYWHEEL w/96 T ring gear (W/6 volt starting motor) see G11134

1шт.

G11012

KIT

LINERS - crankshaft front bearing, top and bottom half (Standard)

1шт.

G11013

SLEEVE CYLINDER

LINERS - crankshaft front bearing, top and bottom half (.002" undersize)

1шт.

G11014

BEARING LINER

LINERS - crankshaft front bearing, top and bottom half (.020" undersize)

1шт.

G11015

SLEEVE CYLINDER

LINERS - crankshaft front bearing, top and bottom half (.022" undersize)

1шт.

G11016

BEARING LINER

LINERS - crankshaft front bearing, top and bottom half (.040" undersize)

1шт.

G11018

KIT

LINERS - crankshaft center bearings, top and bottom half (Standard)

1шт.

G11019

LINERS - crankshaft center bearings, top and bottom half (.002" undersize)

1шт.

G11020

BEARING LINER

LINERS - crankshaft center bearings, top and bottom half (.020" undersize)

1шт.

G11021

SLEEVE CYLINDER

LINERS - crankshaft center bearings, top and bottom half (.022" undersize)

1шт.

G11022

LINERS - crankshaft center bearings, top and bottom half (.040" undersize)

1шт.

G11036

KIT

LINERS - crankshaft rear bearings, top and bottom half (Standard)

1шт.

G11037

LINERS - crankshaft rear bearings, top and bottom half (.002" undersize)

1шт.

G11038

KIT

LINERS - crankshaft rear bearings, top and bottom half (.020" undrsize)

1шт.

G11039

SLEEVE CYLINDER

LINERS - crankshaft rear bearings, top and bottom half (.022" undersize)

1шт.

G11040

LINERS - crankshaft rear bearings, top and bottom half (.040" undersize)

1шт.

G11134

FLYWHEEL W/124T RING GEAR (W/12 volt starting motor) see G11000

1шт.

G11164

CRANKSHAFT (Includes VT3370 pilot bushing)

1шт.

G11263

NUT

- crankshaft pulley

1шт.

G11274

GEAR

- starting motor ring (124T) (W/12 volt starting motor) see VT4524

1шт.

For 96t gear, order A30564

1шт.

G11700

CRANKSHAFT (Use G11164)

1шт.

VT130

CAP - crankshaft center bearing

1шт.

VT157

CAP - cranksaft front bearing

1шт.

VT3220

X

SLINGER - oil, crankshaft front bearing

1шт.

VT3225

X

GEAR - crankshaft (24T)

1шт.

VT3230

X

PLATE - crankshaft thrust

1шт.

VT3355

PIN - dowel, front bearing cap to oil pump

2шт.

VT3364

X

PIN - crankshaft thrust washer

2шт.

VT3366

X

COLLAR - pulley nut

1шт.

VT3367

X

SHIM - crankshaft thrust (.002")

1шт.

VT3368

X

SHIM - crankshaft thrust (.010")

1шт.

VT3370

X

BUSHING - pilot, clutch mainshaft

1шт.

VT3373

OIL SEAL - crankshaft front

1шт.

VT3376

WASHER

- crankshaft thrust

2шт.

VT3377

X

SPACER - crankshaft thrust

2шт.

VT3380

SEAL - dust, drive pulley

1шт.

VT3397

KEY - Morton Hi Pro #808, crankshaft

2шт.

VT4513

X

STUD - flywheel to crankshaft (7/16" x 1-3/4)

4шт.

NSS

NOT SOLD SEPARAT

7/16" hex. nut UNF w/lockwasher

4шт.

VT4524

X

GEAR - starting motor ring (96T) (W/6 volt starting motor) see G11274

1шт.

G1060

PISTON

(3-3/8" bore) 4 ring (See G11007), and connecting rods

4шт.

G1061

SLEEVE

- cylinder (3-3/8" bore) (See G11007), pistons and connecting rods

4шт.

G1062

OIL SEAL

RING - piston, compression, taper face (See G11116), and connecting rods

12шт.

G1063

OIL SEAL

RING - piston, oil control (See G11116), and connecting rods

4шт.

G10074

ROD

CONNECTING ROD ASSEMBLY, includes cap, rod, pin and bolts, and pistons

4шт.

G10233

PIN

- piston wrist, and connecting rods

4шт.

G11007

SLEEVE ASSY

SLEEVE ASSEMBLY - set of 4 matched pistons, rings, pins, etc., and connecting rods

1шт.

G11116

PISTON RING SET

Set of 2 in 1 chrome piston rings, and connecting rods

1шт.

G11141

BEARING LINER

LINERS - connecting rod bearing, top and bottom half (Standard), and pistons

4шт.

G11142

KIT

LINERS - connecting rod bearing, top and bottom half (.002" undersize), and pistons

4шт.

G11143

BEARING LINER

LINERS - connecting rod bearing, top and bottom half (.020" undersize), and pistons

4шт.

G11144

SLEEVE CYLINDER

LINERS - connecting rod bearing, top and bottom half (.022" undersize), and pistons

4шт.

G11701

BOLT

- connecting rod, and pistons

8шт.

G49001

X

NUT - connecting bolt (3/8" Palnut), rod, and pistons

8шт.

VT3363

X

RING - piston pin retainer, and connecting rods

8шт.

VT3375

X

"O" RING - cylinder sleeve packing seal, pistons and connecting rods

8шт.

VT3392

X

BUSHING - piston pin, and connecting rods

8шт.

VT4506

X

NUT - hex. connecting rod bolt, and pistons

4шт.

VT4538

X

CONNECTING ROD AND CAP (Use G10074), and pistons

8шт.
